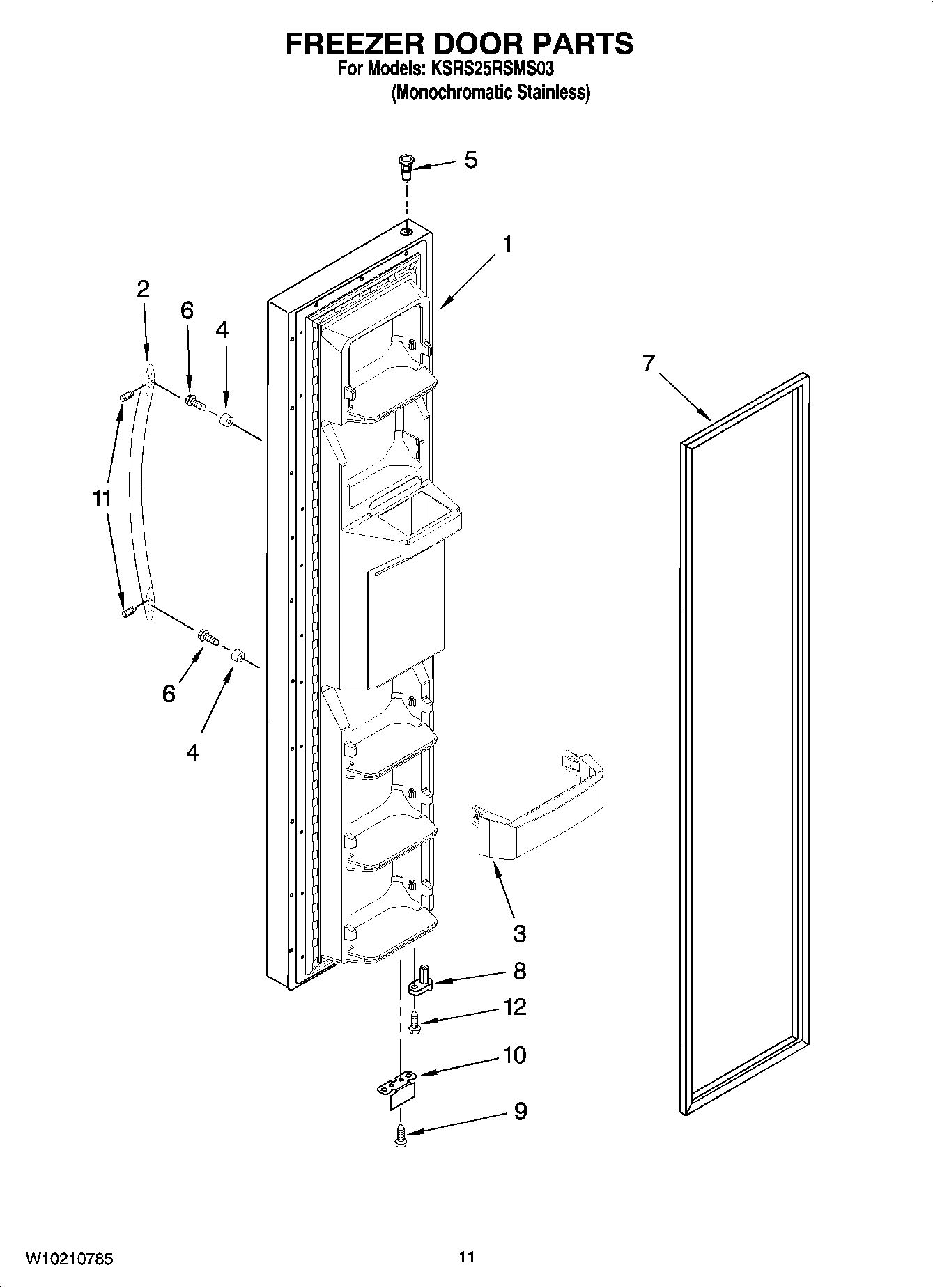

KSRS25RSMS03 07 – FREEZER DOOR PARTS

Products

PositionProduct
Following Parts Not Illustrated
Wire Assembly, Freezer Door
Tube, Door
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
2Handle, Door (Stainless Steel)
3Trivet (3)
4WPW10170540 Whirlpool Screw
5WP2182181 Whirlpool Refrigerator Thimble
6WP488163 Whirlpool Refrigerator Screw
7W10136735 Whirlpool Refrigerator Door Gasket
8WP2223752 Whirlpool Refrigerator Door Cam
9WP489483 Whirlpool Screw
10Bracket, Door Stop (Chrome)
11SCREW
12WP3400012 Whirlpool Refrigerator Screw
