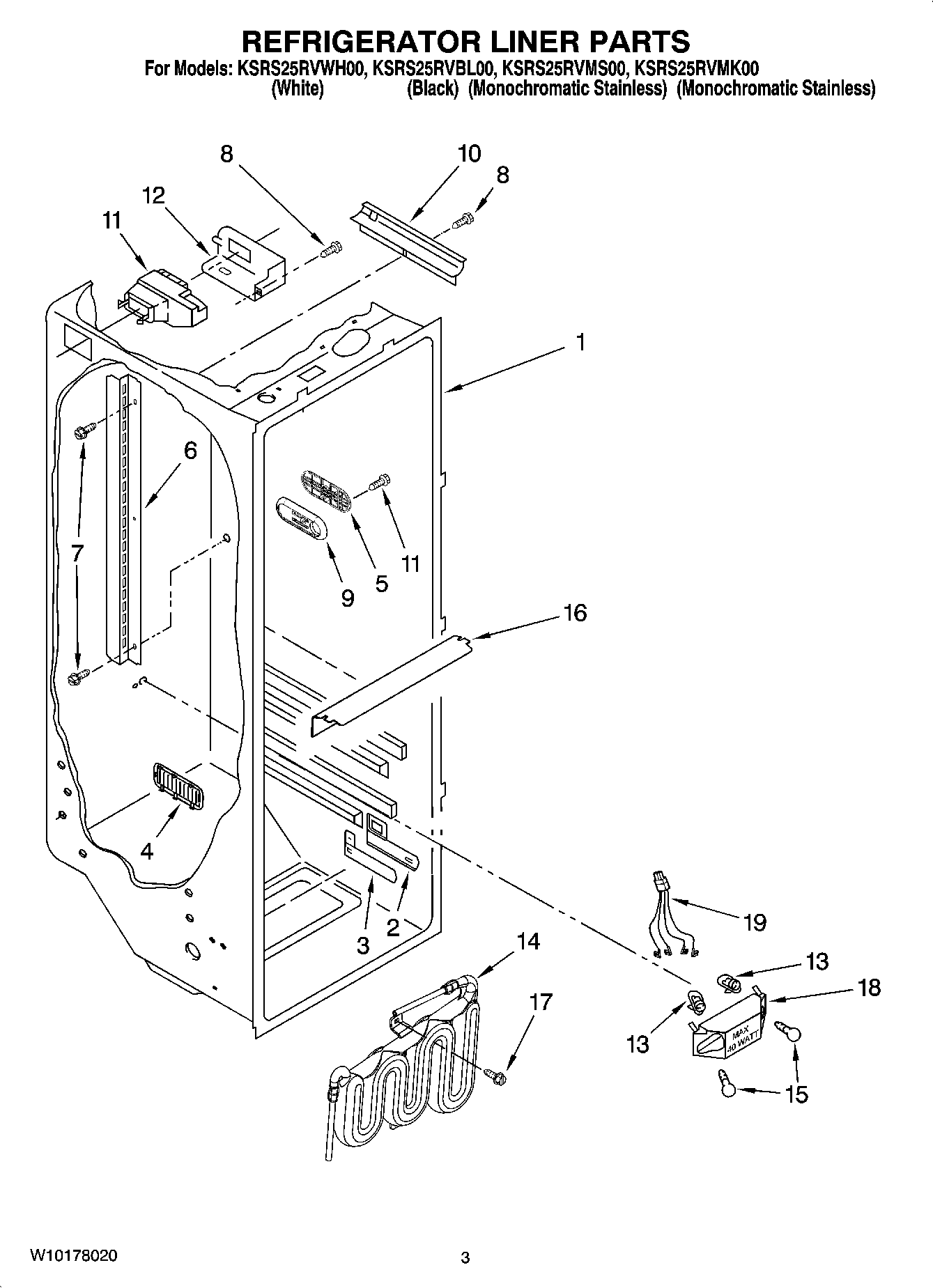

KSRS25RVBL00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
5Slide, Door Control
6Shelf Ladder
7WP489478 Whirlpool Refrigerator Screw
8W10759522 Whirlpool Screw
92301234 Whirlpool Refrigerator Control
102150331 Whirlpool Refrigerator Wire Cover
11Air Diffuser Assembly
12WP2212240 Whirlpool Refrigerator Cover
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
16Light Lens
17Screw (2)
18Bracket, Dual Crisper Light
192311637 Whirlpool Refrigerator Wire Harness
