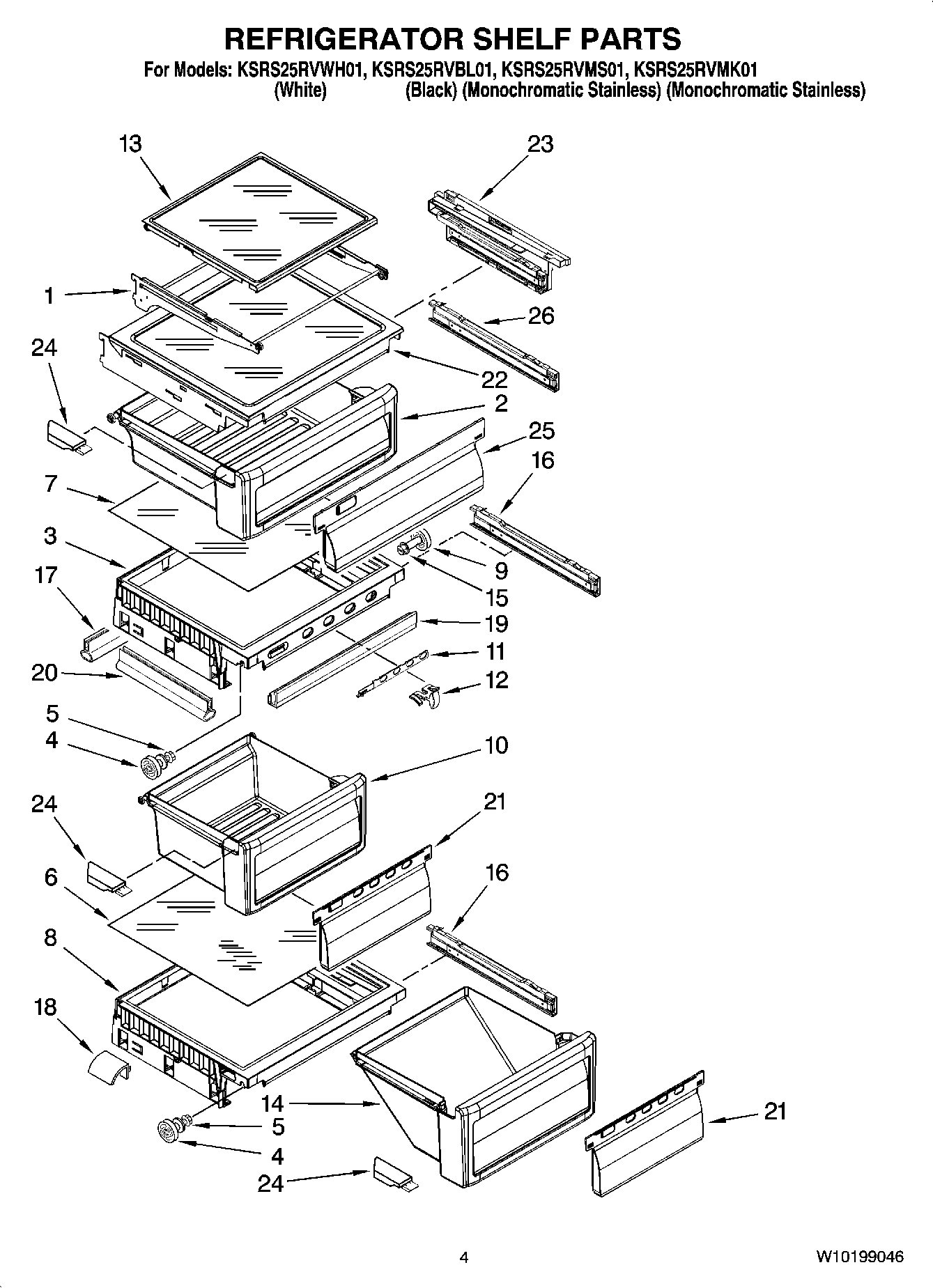

KSRS25RVBL01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Snack Bin
3	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
4	W11223328 Whirlpool Refrigerator Shelf Stud
5	WP3-24004-109 Whirlpool Refrigerator Screw
6	Glass, Meat Pan Cover
7	Glass, Cover
8	Cover, Meat Pan (Includes 20 & 24)
9	WP2196483 Whirlpool Refrigerator Shelf Stud
10	W10916292 Whirlpool Refrigerator Crisper Pan
11	2301026 Whirlpool Refrigerator Slide
12	Knob, Humidity
13	Shelf & Roller Assembly
14	Meat Pan (Includes 21)
15	WP3400806 Whirlpool Screw
16	2301548 Whirlpool Refrigerator Glide
16	Glide Assm-Pan (Left Side)
17	Gasket, Rear
18	Deflector
19	WP1125528 Whirlpool Refrigerator Gasket
20	2301117 Whirlpool Refrigerator Gasket
21	Window, Crisper
22	Shelf Assembly
23	Support Assembly (Right Side)
23	Support Assembly (Left Side)
24	Cap, Crisper Pan (Left Side)
24	Cap, Crisper Pan (Right Side)
25	Window, Snack Pan
26	Glide Assm-Pan (Right Side)
26	Glide Assm-Pan (Left Side)
