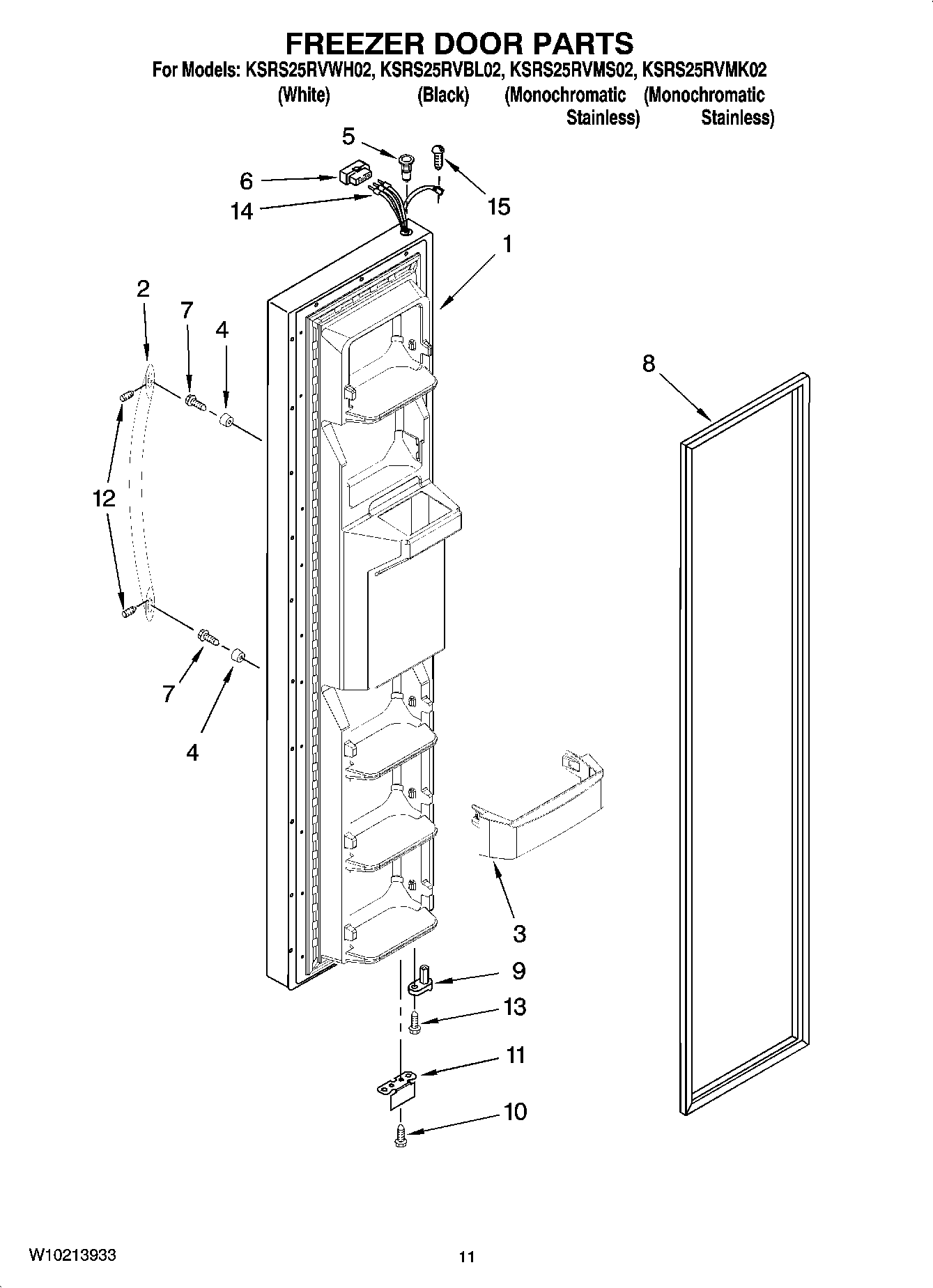

KSRS25RVBL02 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Door
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
3	Trivet (3)
4	WPW10170540 Whirlpool Screw
5	WP2182181 Whirlpool Refrigerator Thimble
6	Connector
7	WP488163 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	W10136735 Whirlpool Refrigerator Door Gasket
8	2159074 Whirlpool Door Gasket Seal
9	WP2223752 Whirlpool Refrigerator Door Cam
10	WP489483 Whirlpool Screw
11	Bracket, Door Stop (Chrome)
11	Bracket, Door Stop (Black)
12	WPW10010150 Whirlpool Refrigerator Screw
12	SCREW
13	WP3400012 Whirlpool Refrigerator Screw
14	Wire Assembly, Freezer Door
15	WP489128 Whirlpool Refrigerator Screw
