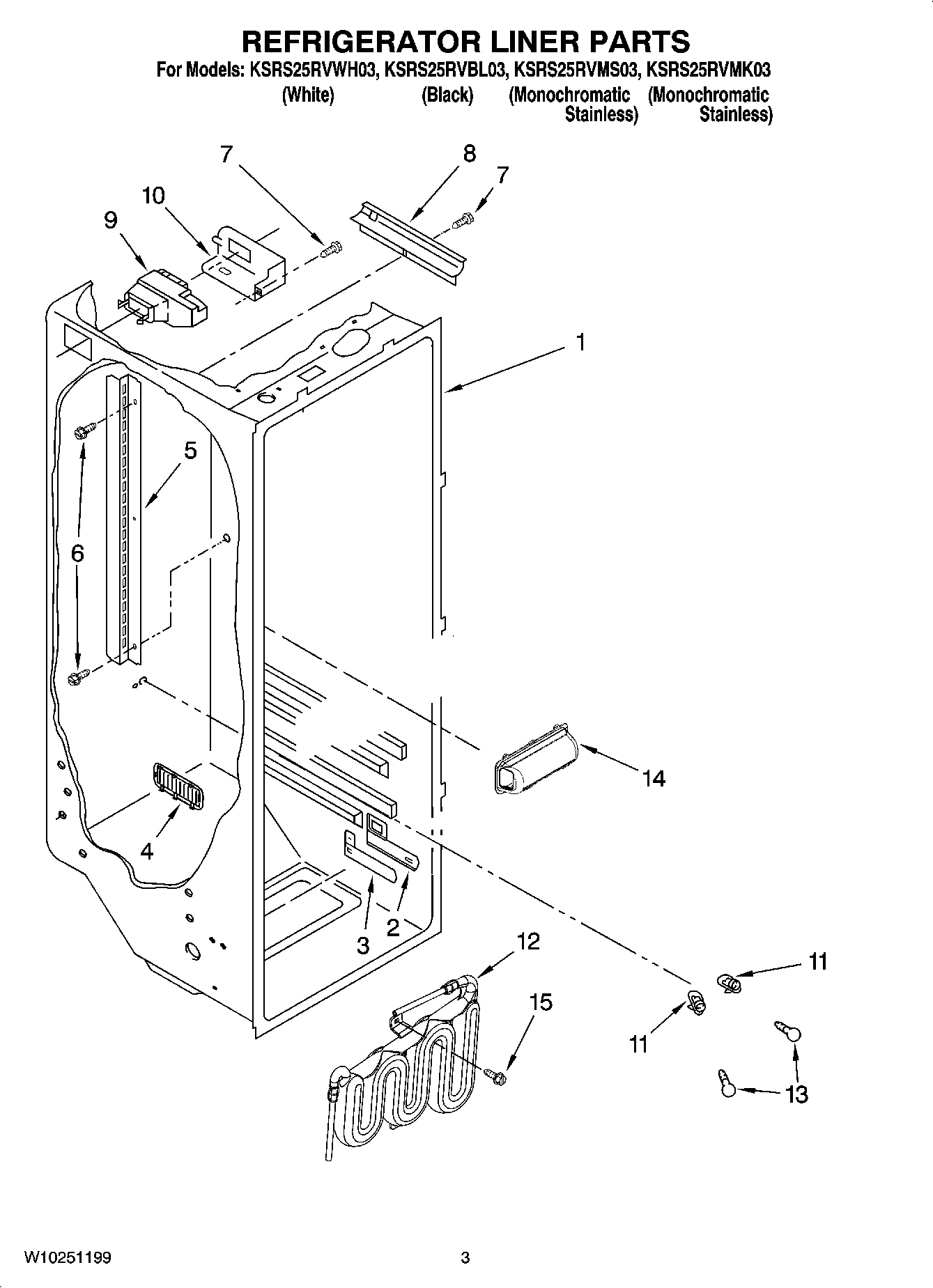

KSRS25RVBL03 02 – REFRIGERATOR LINER PARTS

KSRS25RVBL03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRS25RVBL03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Shelf Ladder
6WP489478 Whirlpool Refrigerator Screw
7W10759522 Whirlpool Screw
8Cover, Conduit
9Air Diffuser Assembly
10Cover, Air Diffuser
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
14W11239891 Whirlpool Refrigerator Light Lens
15W10141518 Whirlpool Refrigerator Screw
