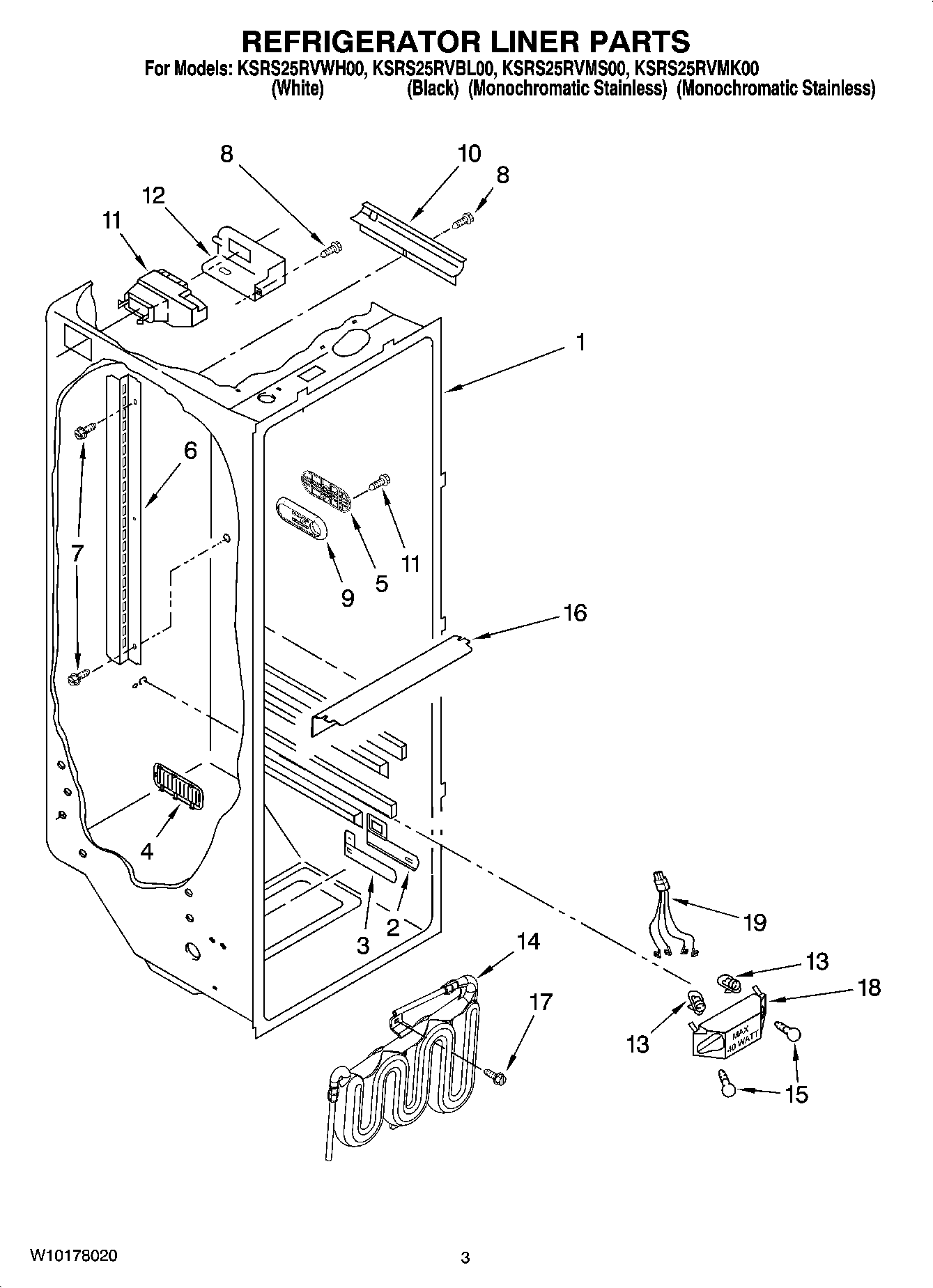

KSRS25RVMK00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	Slide, Door Control
6	Shelf Ladder
7	WP489478 Whirlpool Refrigerator Screw
8	W10759522 Whirlpool Screw
9	2301234 Whirlpool Refrigerator Control
10	2150331 Whirlpool Refrigerator Wire Cover
11	Air Diffuser Assembly
12	WP2212240 Whirlpool Refrigerator Cover
13	4387478 Whirlpool Refrigerator Light Socket
14	RESERVOIR
15	RANGE ONLY 40W 120V APPL BULB
16	Light Lens
17	Screw (2)
18	Bracket, Dual Crisper Light
19	2311637 Whirlpool Refrigerator Wire Harness
