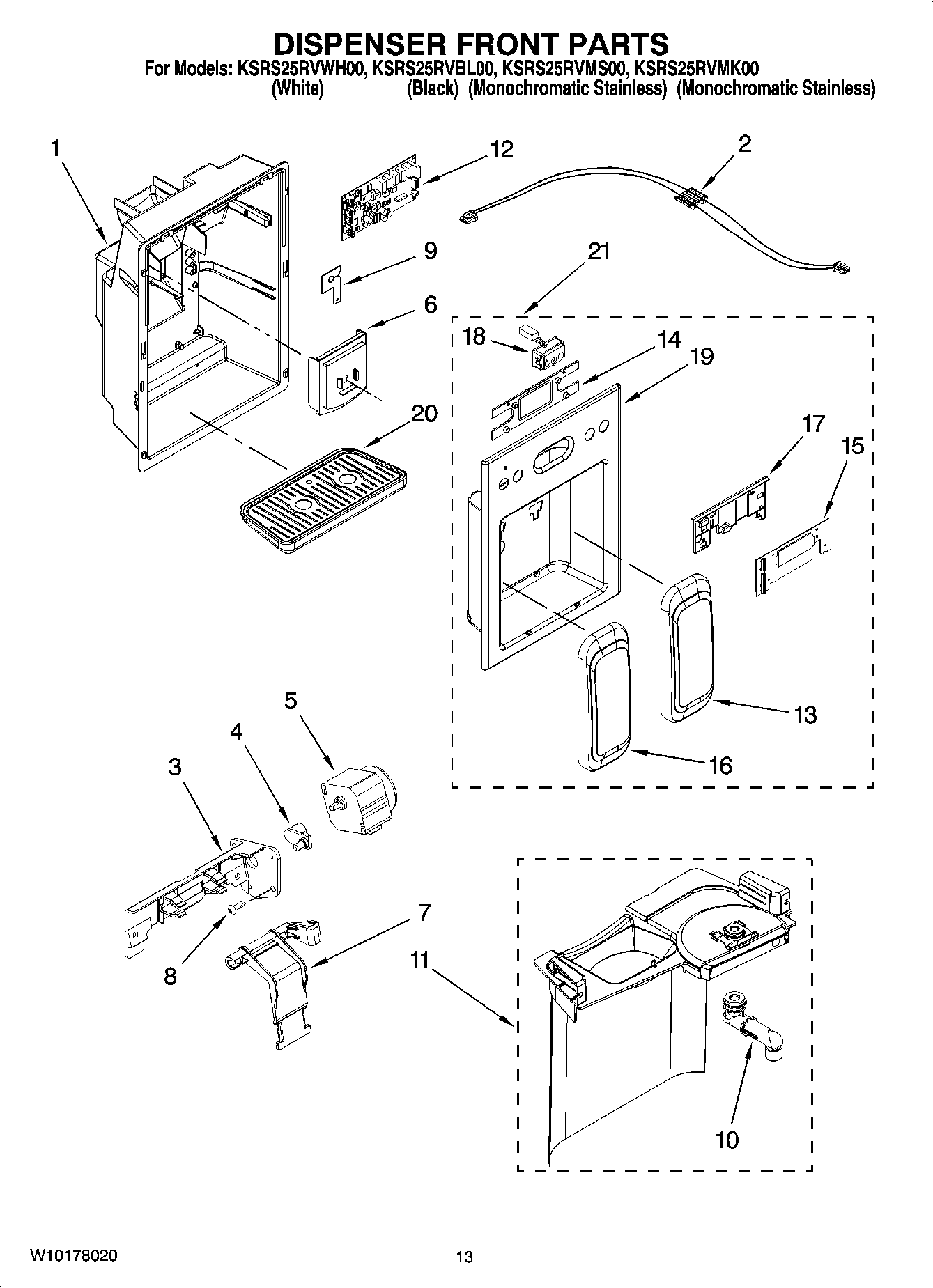

KSRS25RVMK00 08 – DISPENSER FRONT PARTSadmin2025-04-26T11:51:25+00:00KSRS25RVMK00 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | Housing Dispenser (Not Serviced) |
| 2 | WPL 2187814 |
| 3 | WP2305202 Whirlpool Refrigerator Bracket |
| 4 | WP2305242 Whirlpool Refrigerator Connector |
| 5 | WPW10184813 Whirlpool Refrigerator Motor |
| 6 | WP2305258 Whirlpool Dispenser Door Assembly |
| 7 | WP2305204 Whirlpool Refrigerator Support |
| 8 | WP4449745 Whirlpool Screw |
| 9 | 2305447 Whirlpool Refrigerator Clip |
| 10 | Spigot |
| 11 | Seperator Assembly |
| 12 | WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core |
| 13 | Pad, Water (White) |
| 14 | Lens, Front Cover |
| 15 | WP2321746 Whirlpool Refrigerator Electronic Control Board |
| 16 | W10133603 Whirlpool Dispenser Actuator Pad Set |
| 16 | Pad, Ice (White) |
| 17 | 2305219 Whirlpool Refrigerator Cover |
| 18 | W10222215 Whirlpool Refrigerator Light Indicator |
| 19 | Front Cover, Housing (Not Available Order 23) |
| 20 | Tray, Housing (White) |
| 20 | Tray, Housing (Black) |
| 20 | Tray, Housing (Universal Silver) |
| 21 | Front Cover Assembly (Includes Items 13, 14, 16, 17, 20 & 21) (Stainless) |
| 21 | Front Cover Assembly (Includes Items 13, 14, 16, 17, 20 & 21) (White) |
| 21 | Front Cover Assembly (Includes Items 13, 14, 16, 17, 20 & 21) (Black) |
