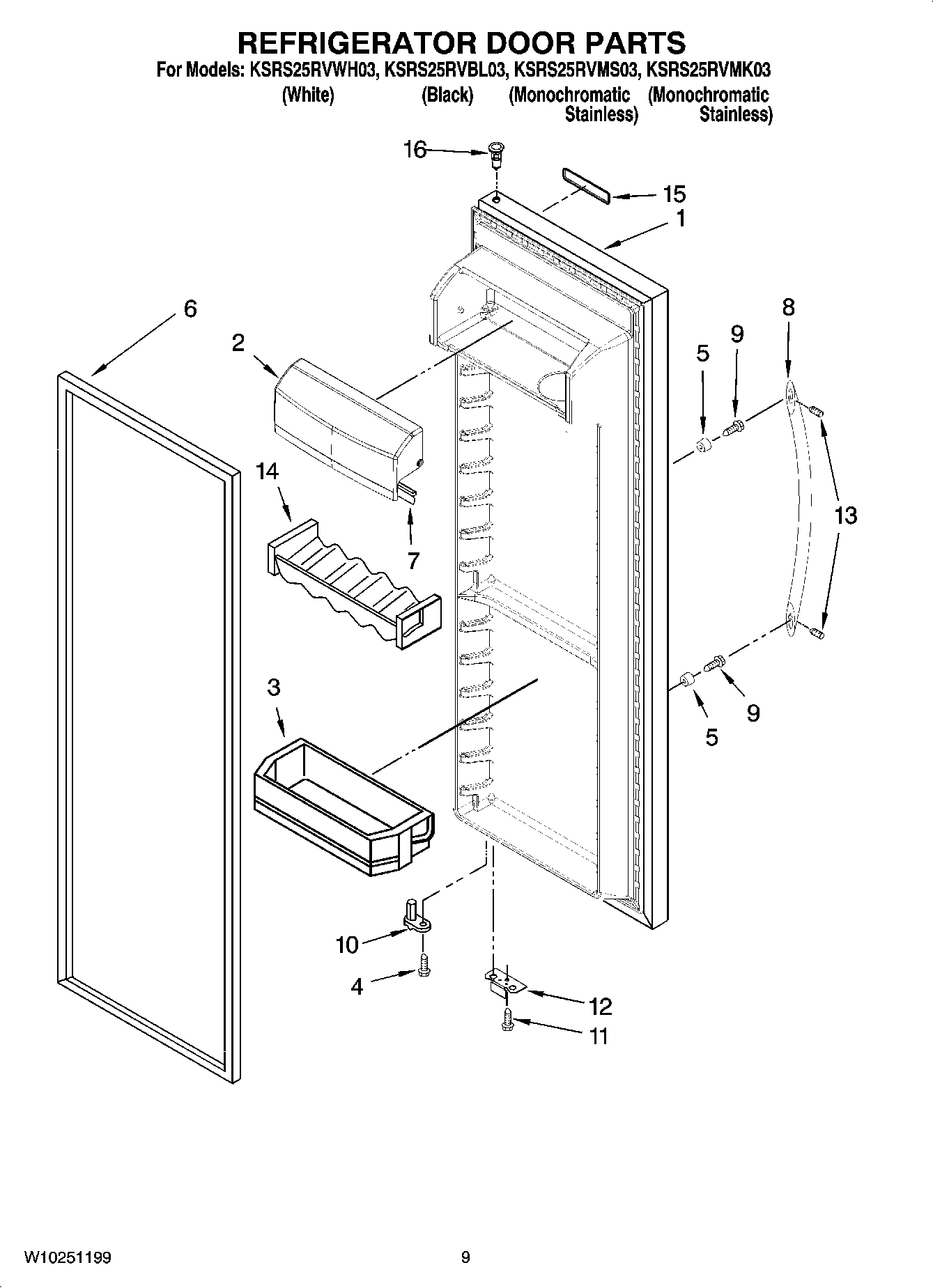

KSRS25RVMK03 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Mono Stainless)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
2	Door, Compartment
3	WP2223434K Whirlpool Refrigerator Door Shelf Bin
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	WPW10136734 Whirlpool Refrigerator Door Gasket
6	2159083 Whirlpool Gasket Door
6	2159075 Whirlpool Door Gasket Seal
7	Gasket, Door Compartment
8	Handle, Door (Stainless Steel)
8	WP2319727W Whirlpool Refrigerator Handle
8	WP2319727B Whirlpool Refrigerator Handle
9	W10141596 Whirlpool Screw Assembly
10	WP2182179 Whirlpool Cam Closer
11	WPW10142233 Whirlpool Refrigerator Screw
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	SCREW
13	WPW10010150 Whirlpool Refrigerator Screw
14	Beverage Holder
15	NAMEPLATE
15	WPW10243393 Whirlpool Dishwasher Nameplate
15	WPW10243392 Whirlpool Dishwasher Nameplate
16	WP2182181 Whirlpool Refrigerator Thimble
