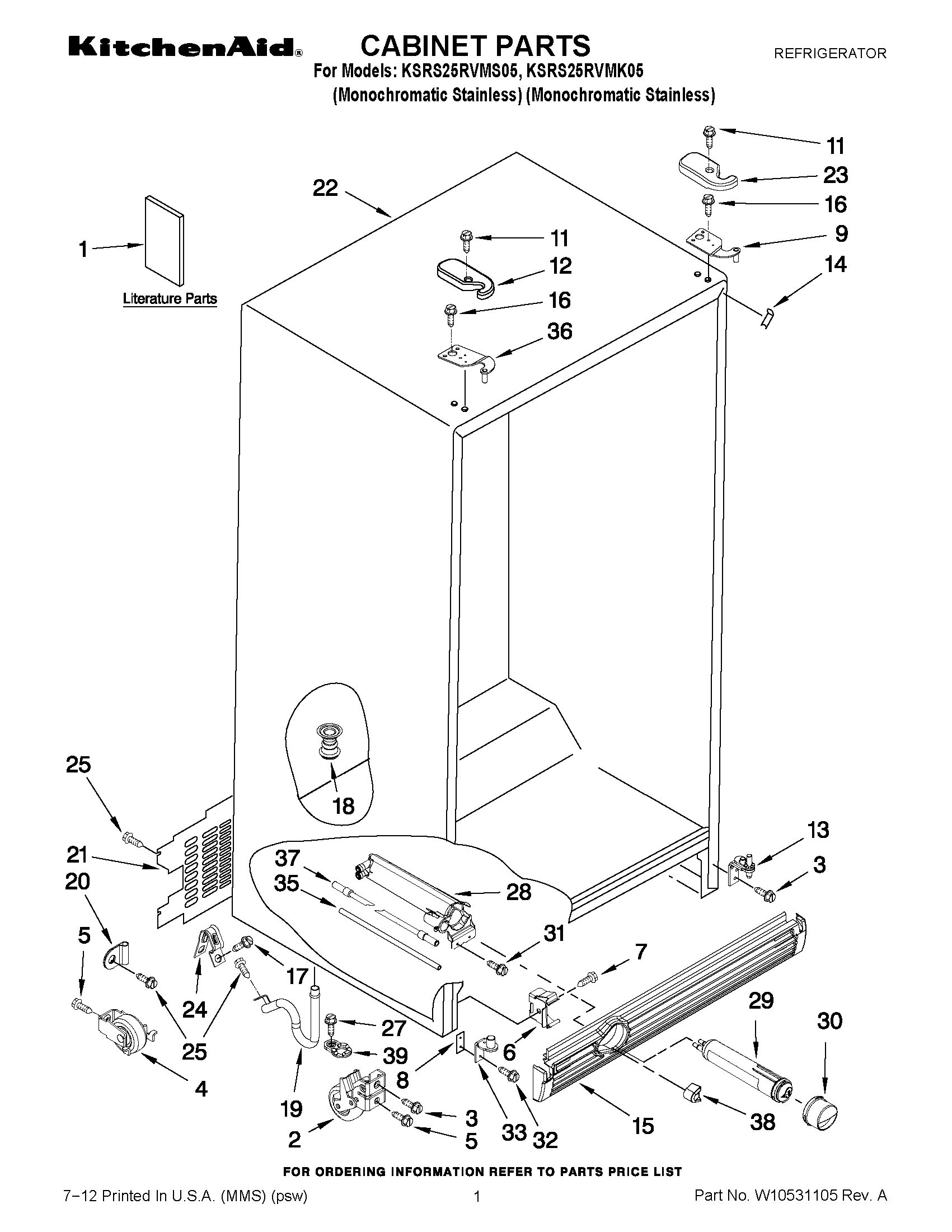

KSRS25RVMK05 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	ENERGY GUIDE
1	OWNER S MANUAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	W10242649 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	2203407AP Whirlpool Refrigerator Cover
13	ADJUSTABLE HINGE CAM ASSY
14	Filler, Wrapper (Apollo Grey)
15	GRILLE (MIDNIGHT GRAY)
16	WP489497 Whirlpool Screw
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
20	WPL 2305373
21	WP2188755 Whirlpool Rear Panel
22	CABINET (NOT A SERVICEABLE PART)
23	2203408AP Whirlpool Refrigerator Cover
24	549193 Whirlpool Refrigerator Power Clamp
25	SCREW
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518MG Whirlpool Water Filter Cap
31	WP489500 Whirlpool Refrigerator Screw
33	2303141 Whirlpool Refrigerator Door Hinge
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	HINGE, TOP (FC)
37	TUBE, FILTER INLET
38	2260503MG Whirlpool Refrigerator Button
39	WP2223751 Whirlpool Refrigerator Door Cam
