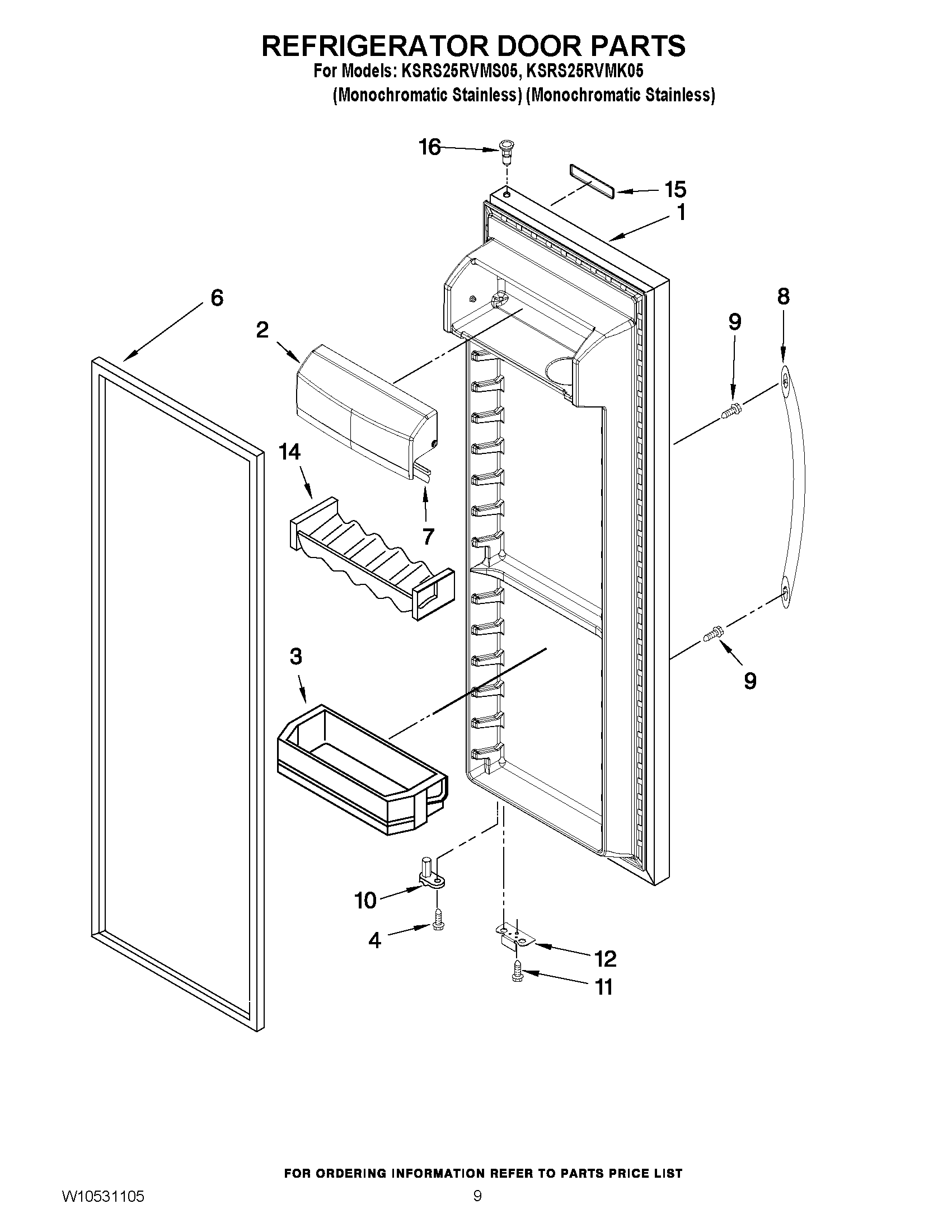

KSRS25RVMK05 06 – REFRIGERATOR DOOR PARTS

KSRS25RVMK05 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRS25RVMK05 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Mono Stainless)
2Door, Compartment
3WP2223434K Whirlpool Refrigerator Door Shelf Bin
4WP3400012 Whirlpool Refrigerator Screw
6WPW10136734 Whirlpool Refrigerator Door Gasket
7Gasket, Door Compartment
8Handle, Door (Stainless Steel)
9WPW10170540 Whirlpool Screw
10WP2182179 Whirlpool Cam Closer
11WPW10142233 Whirlpool Refrigerator Screw
12BRACKET, DOOR STOP (STAINLESS)
14Beverage Holder
15WPW10243391 Whirlpool Refrigerator Nameplate
16WP2182181 Whirlpool Refrigerator Thimble
