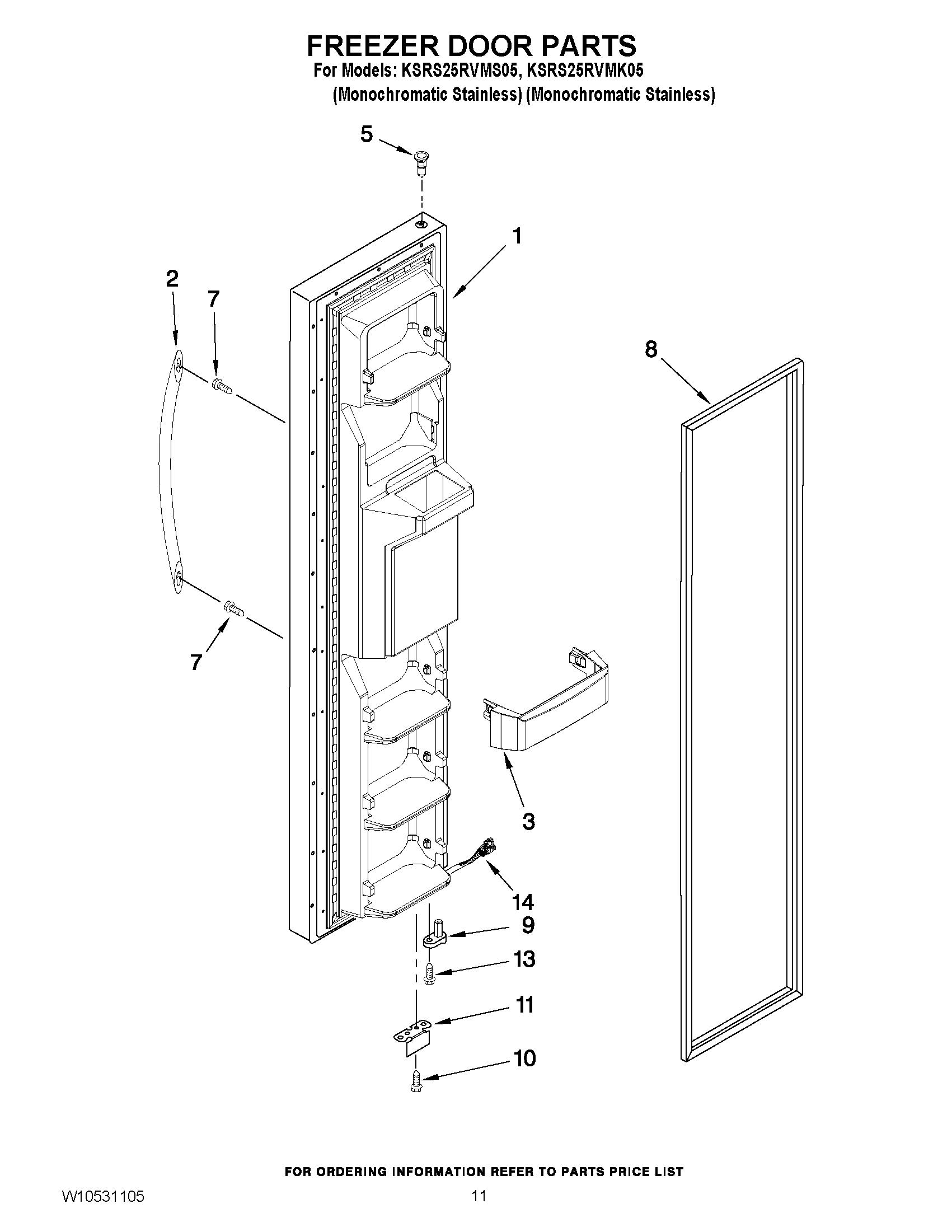

KSRS25RVMK05 07 – FREEZER DOOR PARTS

Products

Position	Product
NI	Tube, Door
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle, Door (Stainless Steel)
3	Trivet (4)
5	WP2182181 Whirlpool Refrigerator Thimble
7	WPW10170540 Whirlpool Screw
8	W10136735 Whirlpool Refrigerator Door Gasket
9	WP2223752 Whirlpool Refrigerator Door Cam
10	WPW10142233 Whirlpool Refrigerator Screw
11	BRACKET, DOOR STOP (STAINLESS)
13	WP3400012 Whirlpool Refrigerator Screw
14	Wire Assembly, Freezer Door
