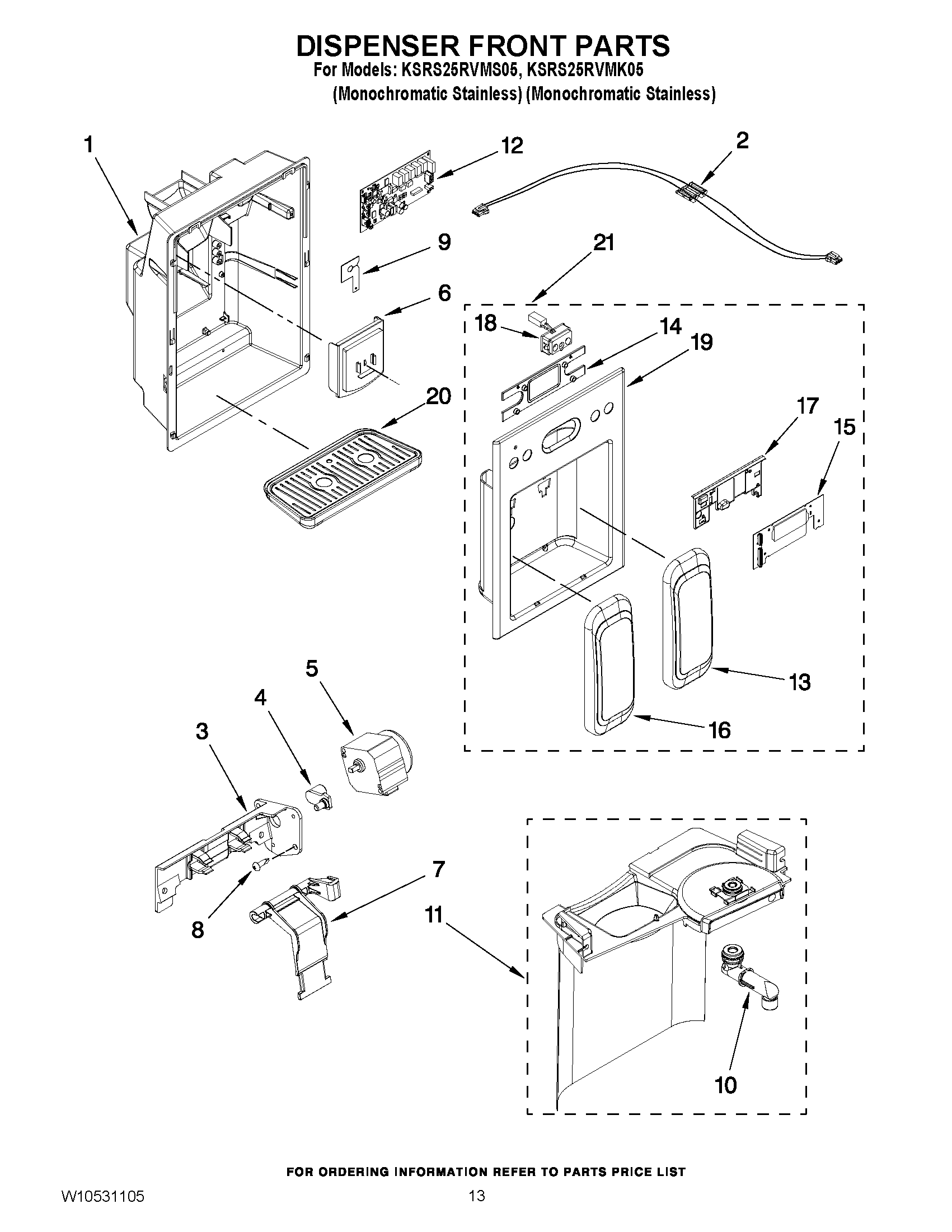

KSRS25RVMK05 08 – DISPENSER FRONT PARTS

KSRS25RVMK05 08 – DISPENSER FRONT PARTS

Written by

in

KSRS25RVMK05 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2W10178851 Whirlpool Refrigerator Jumper Wire
3WP2305202 Whirlpool Refrigerator Bracket
4WP2305242 Whirlpool Refrigerator Connector
5WPW10184813 Whirlpool Refrigerator Motor
6WP2305258 Whirlpool Dispenser Door Assembly
7WP2305204 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
92305447 Whirlpool Refrigerator Clip
10Spigot
11Seperator Assembly
12WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
14Lens, Front Cover
15WP2321746 Whirlpool Refrigerator Electronic Control Board
16W10133606 Whirlpool Refrigerator Pad
172305219 Whirlpool Refrigerator Cover
18W10222215 Whirlpool Refrigerator Light Indicator
19CABINET (NOT A SERVICEABLE PART)
20Tray, Housing (Nickel One)
21Front Cover Assembly (Includes Items 13, 14, 16, 17, 20 & 21) (Stainless)
