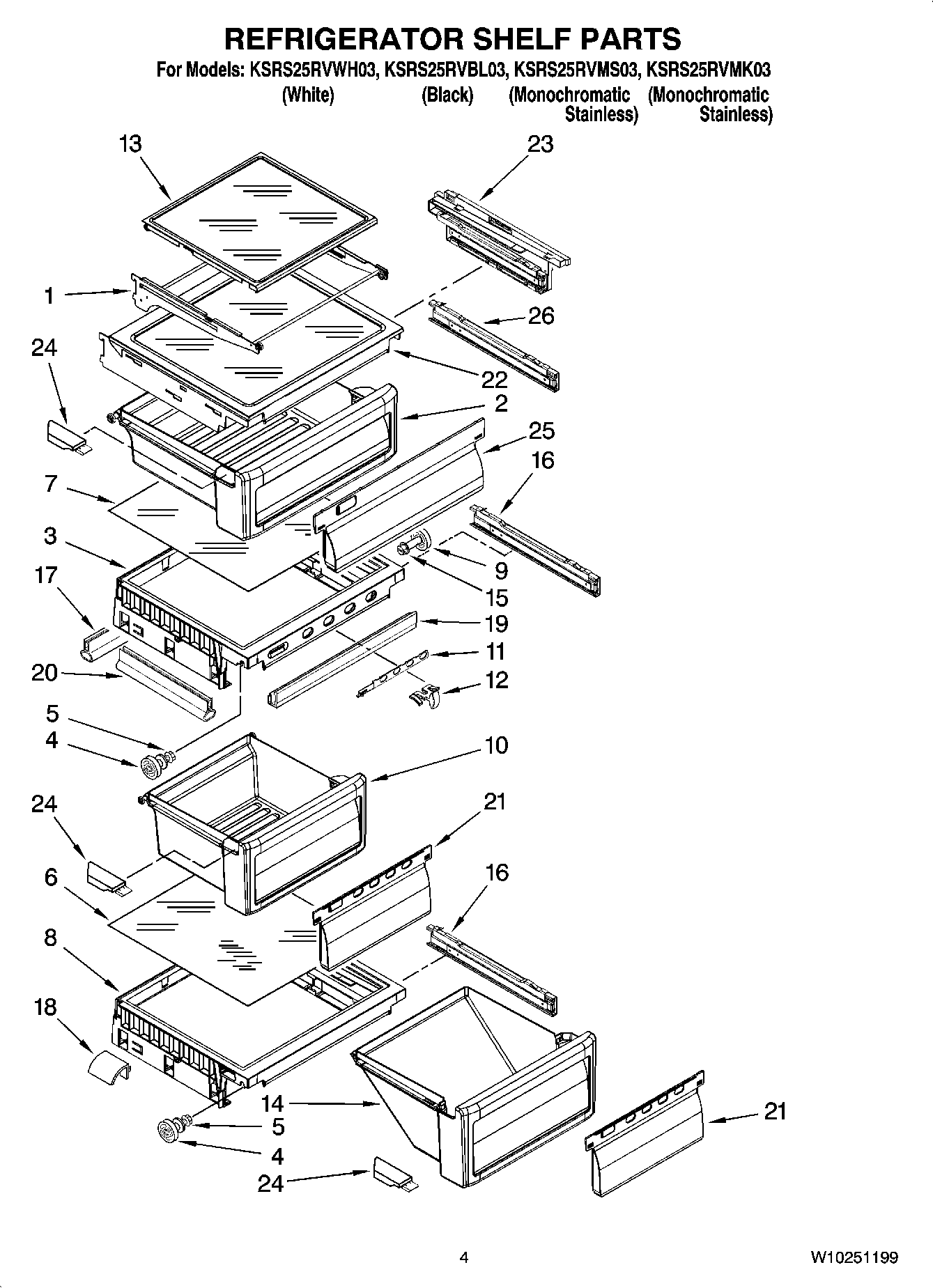

KSRS25RVMS03 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Snack Bin
3	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
4	W11223328 Whirlpool Refrigerator Shelf Stud
5	WP3-24004-109 Whirlpool Refrigerator Screw
7	Glass, Meat Pan Cover
8	Cover, Meat Pan (Includes 20 & 24)
9	WP2196483 Whirlpool Refrigerator Shelf Stud
10	W10916292 Whirlpool Refrigerator Crisper Pan
11	2301026 Whirlpool Refrigerator Slide
12	Knob, Humidity
13	WPW10141748 Whirlpool Refrigerator Glass Shelf
14	Meat Pan (Includes 21)
15	WP3400806 Whirlpool Screw
16	Glide Assm-Pan (Left Side)
16	2301548 Whirlpool Refrigerator Glide
17	Gasket, Rear
18	Deflector
19	WP1125528 Whirlpool Refrigerator Gasket
20	2301117 Whirlpool Refrigerator Gasket
21	Window, Crisper
22	Shelf Assembly
23	Support Assembly (Left Side)
23	Support Assembly (Right Side)
24	Cap, Crisper Pan (Left Side)
24	Cap, Crisper Pan (Right Side)
25	Window, Snack Pan
26	Glide Assm-Pan (Right Side)
26	Glide Assm-Pan (Left Side)
