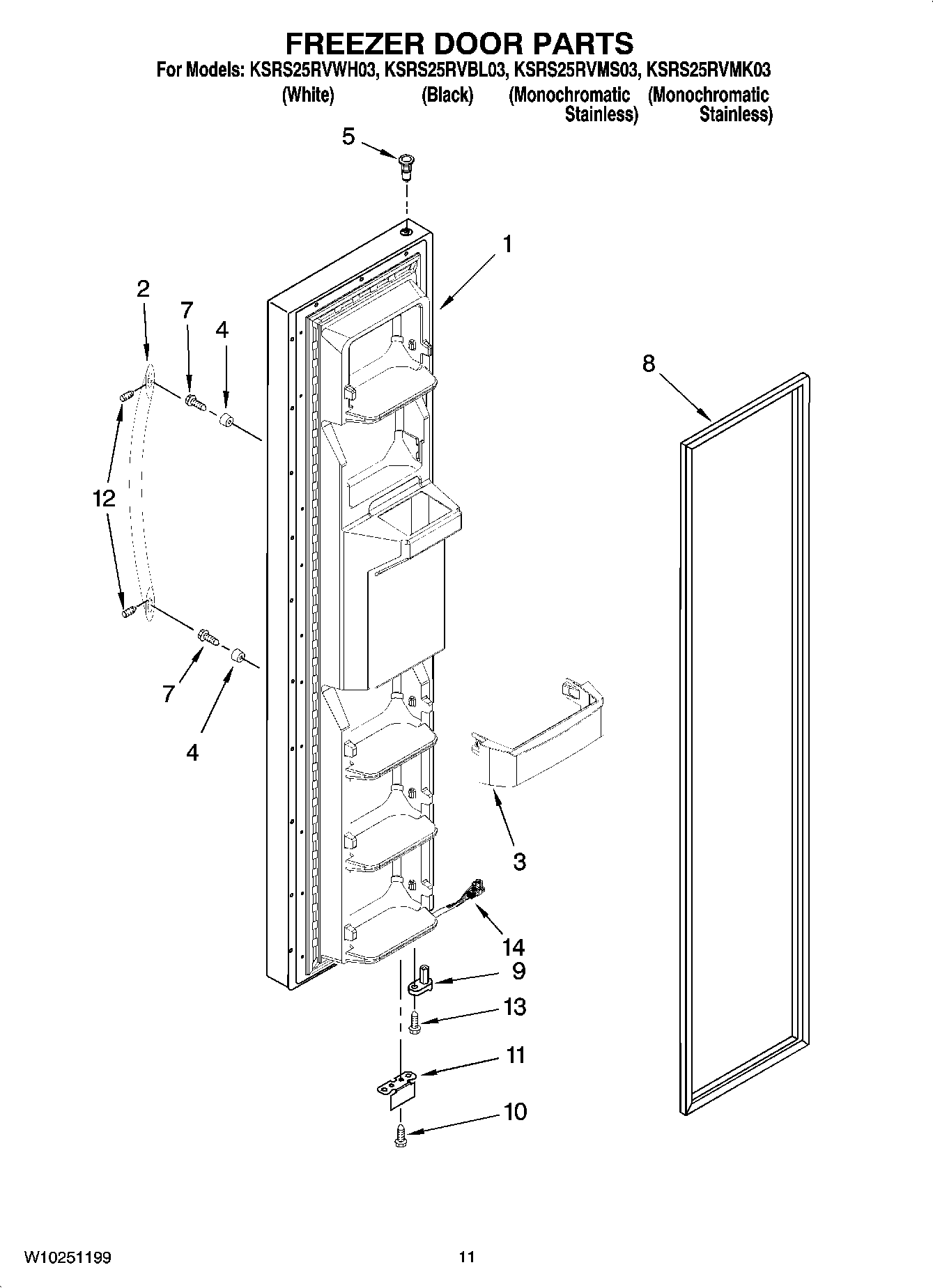

KSRS25RVMS03 07 – FREEZER DOOR PARTS

KSRS25RVMS03 07 – FREEZER DOOR PARTS

Written by

in

KSRS25RVMS03 07 – FREEZER DOOR PARTS

Products

PositionProduct
Following Parts Not Illustrated
Tube, Door
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
2Handle, Door (Stainless Steel)
3Trivet (3)
4WPW10170540 Whirlpool Screw
5WP2182181 Whirlpool Refrigerator Thimble
7W10141596 Whirlpool Screw Assembly
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
8W10136735 Whirlpool Refrigerator Door Gasket
9WP2223752 Whirlpool Refrigerator Door Cam
10WPW10142233 Whirlpool Refrigerator Screw
11Bracket, Door Stop (Black)
11Bracket, Door Stop (Chrome)
12SCREW
12WPW10010150 Whirlpool Refrigerator Screw
13WP3400012 Whirlpool Refrigerator Screw
14Wire Assembly, Freezer Door
