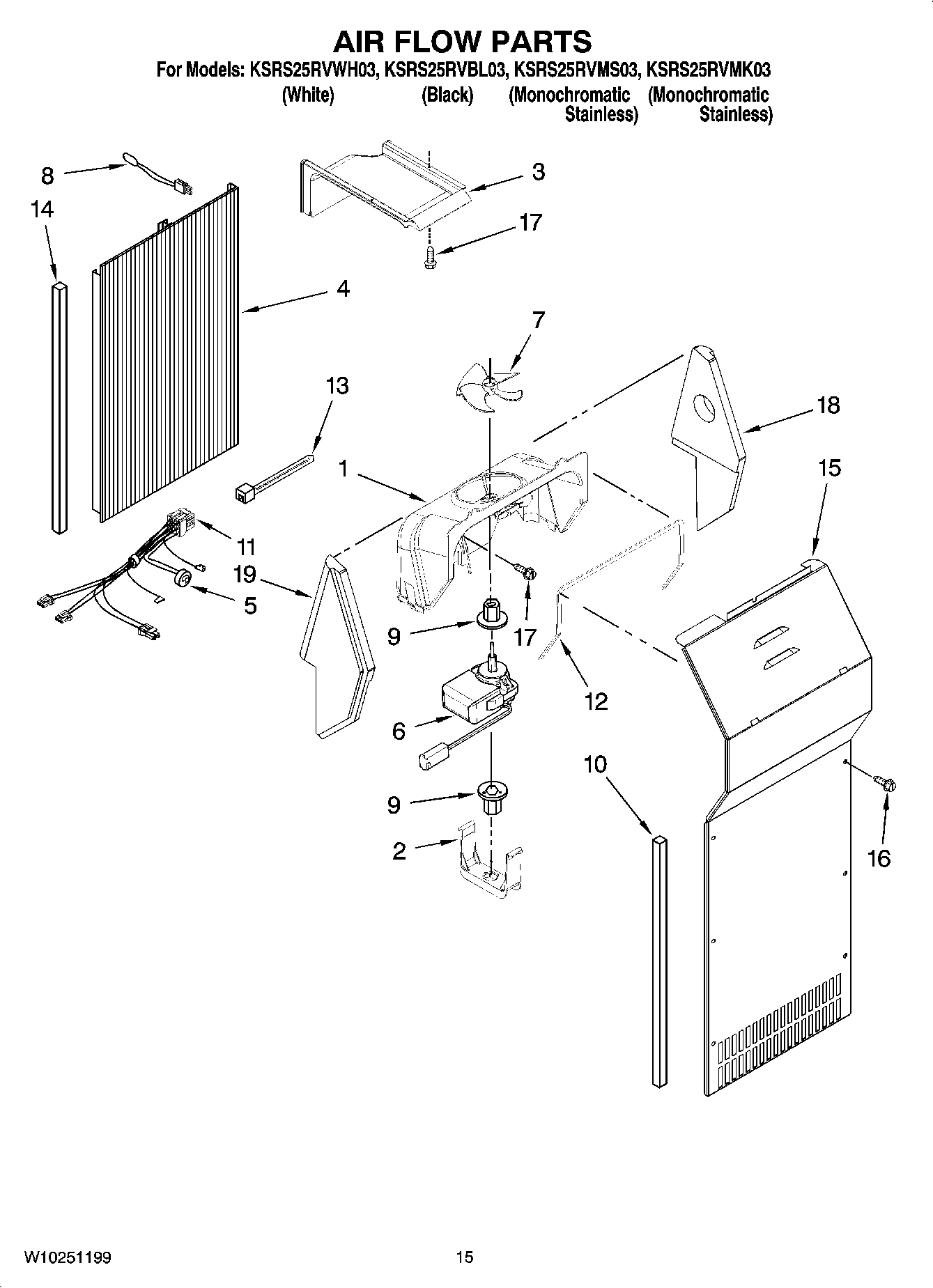

KSRS25RVMS03 09 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	2313359 Whirlpool Refrigerator Air Duct
4	Air Duct Freezer
5	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
6	MOTOR-EVAP
7	WP2169142 Whirlpool Fan Blade
8	WP2188819 Whirlpool Thermistor
9	WP2176759 Whirlpool Refrigerator Grommet
10	WP2304241 Whirlpool Refrigerator Gasket
11	Harness, Fan Evaporator (Includes 6)
12	WP2155789 Whirlpool Refrigerator Gasket
13	WPW10339879 Whirlpool Wire Tie
14	4388500 Whirlpool Refrigerator Gasket
15	Cover, Evaporator (Includes 9)
16	WP693995 Whirlpool Screw
17	WP489478 Whirlpool Refrigerator Screw
18	4388358 Whirlpool Refrigerator Support Bracket
