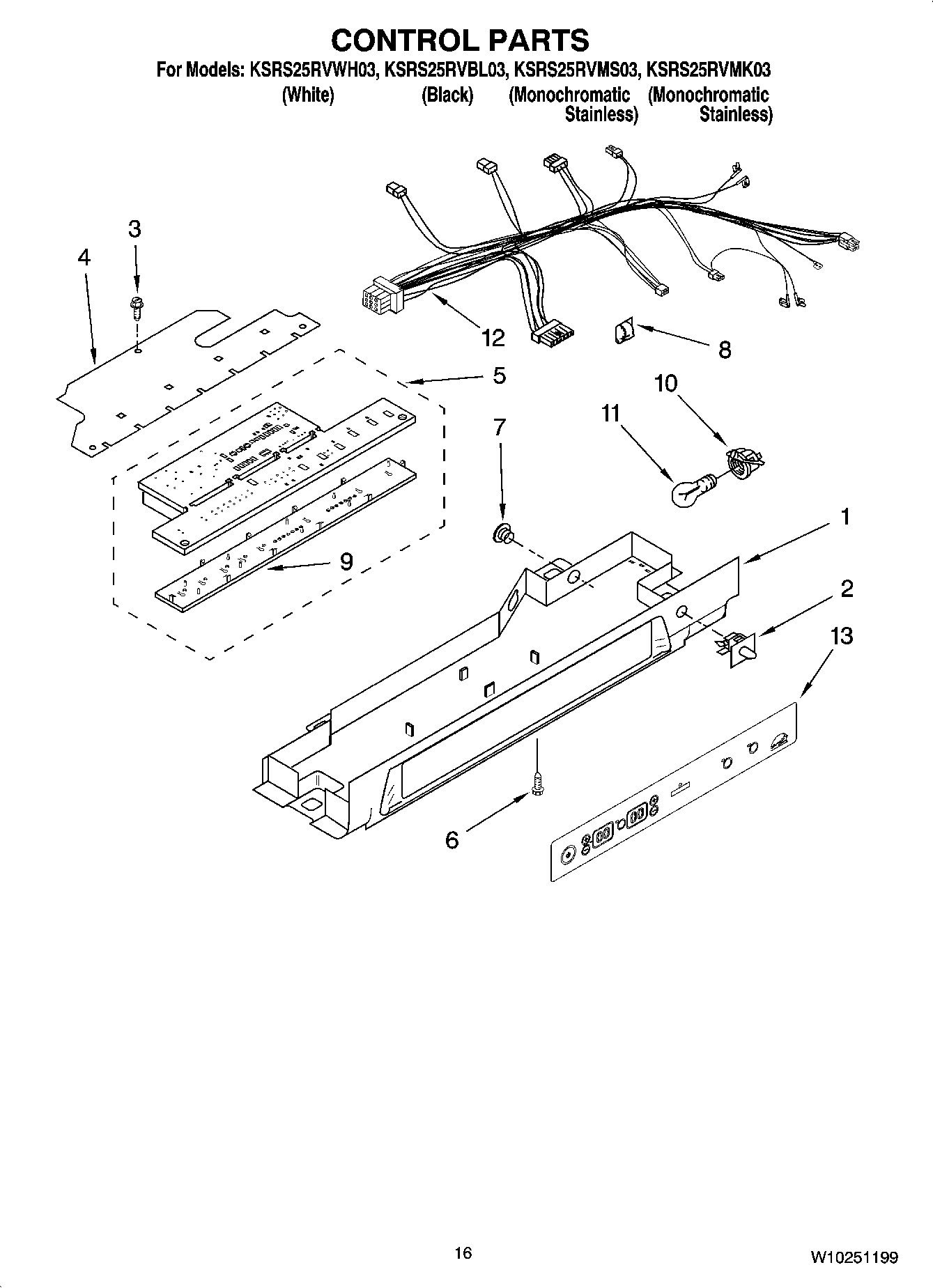

KSRS25RVMS03 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2149705 Whirlpool Refrigerator Door Switch
3	WP3196557 Whirlpool Screw
4	Cover, Ctrl Box
5	Control Assy
6	WP67006908 Whirlpool Refrigerator Screw
7	940014 Whirlpool Refrigerator Primary Button Plug
8	WP1115374 Whirlpool Refrigerator Clip
9	Insert, Control Board (Not Available, Order 5)
10	4387478 Whirlpool Refrigerator Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Wire Assy, Ctrl Box
13	Overlay, Control Box
