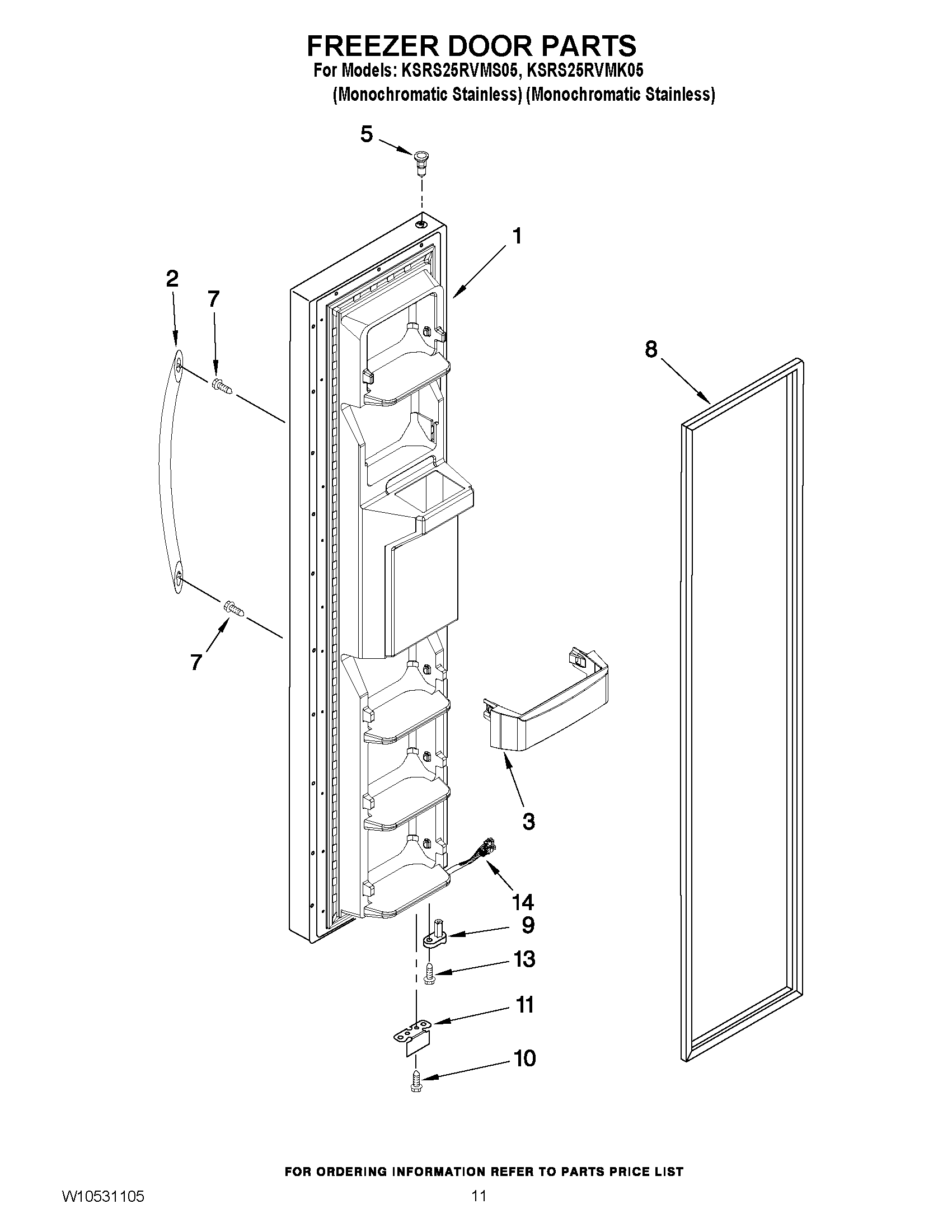

KSRS25RVMS05 07 – FREEZER DOOR PARTS

Products

PositionProduct
NITube, Door
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2Handle, Door (Stainless Steel)
3Trivet (4)
5WP2182181 Whirlpool Refrigerator Thimble
7WPW10170540 Whirlpool Screw
8W10136735 Whirlpool Refrigerator Door Gasket
9WP2223752 Whirlpool Refrigerator Door Cam
10WPW10142233 Whirlpool Refrigerator Screw
11BRACKET, DOOR STOP (STAINLESS)
13WP3400012 Whirlpool Refrigerator Screw
14Wire Assembly, Freezer Door
