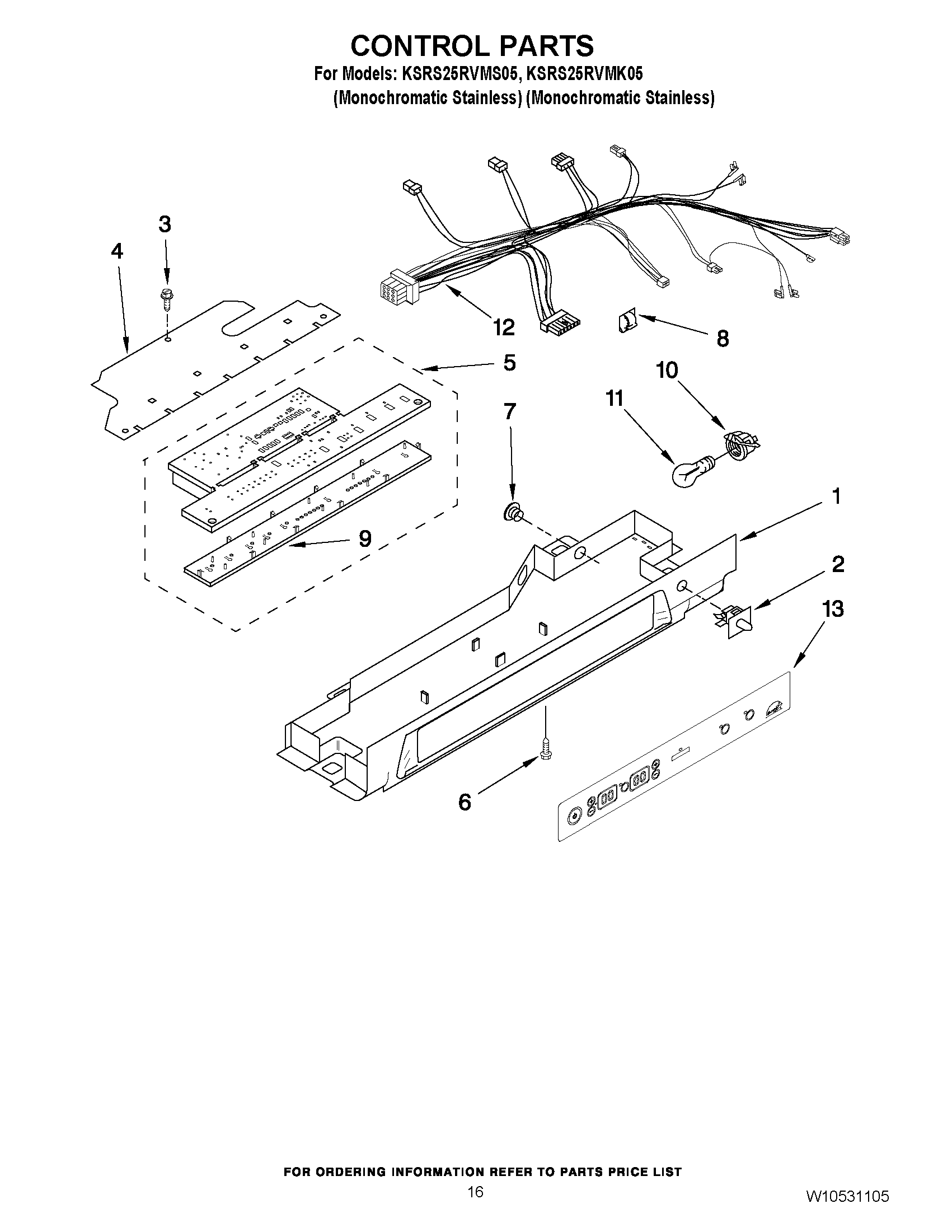

KSRS25RVMS05 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
2WP2149705 Whirlpool Refrigerator Door Switch
3WP3196557 Whirlpool Screw
4Cover, Ctrl Box
5Control Assy
6WP67006908 Whirlpool Refrigerator Screw
7940014 Whirlpool Refrigerator Primary Button Plug
8WP1115374 Whirlpool Refrigerator Clip
9CABINET (NOT A SERVICEABLE PART)
104387478 Whirlpool Refrigerator Light Socket
11W11679940 Whirlpool Refrigerator Light Bulb Assembly
12Wire Assy, Ctrl Box
13Overlay, Control Box
