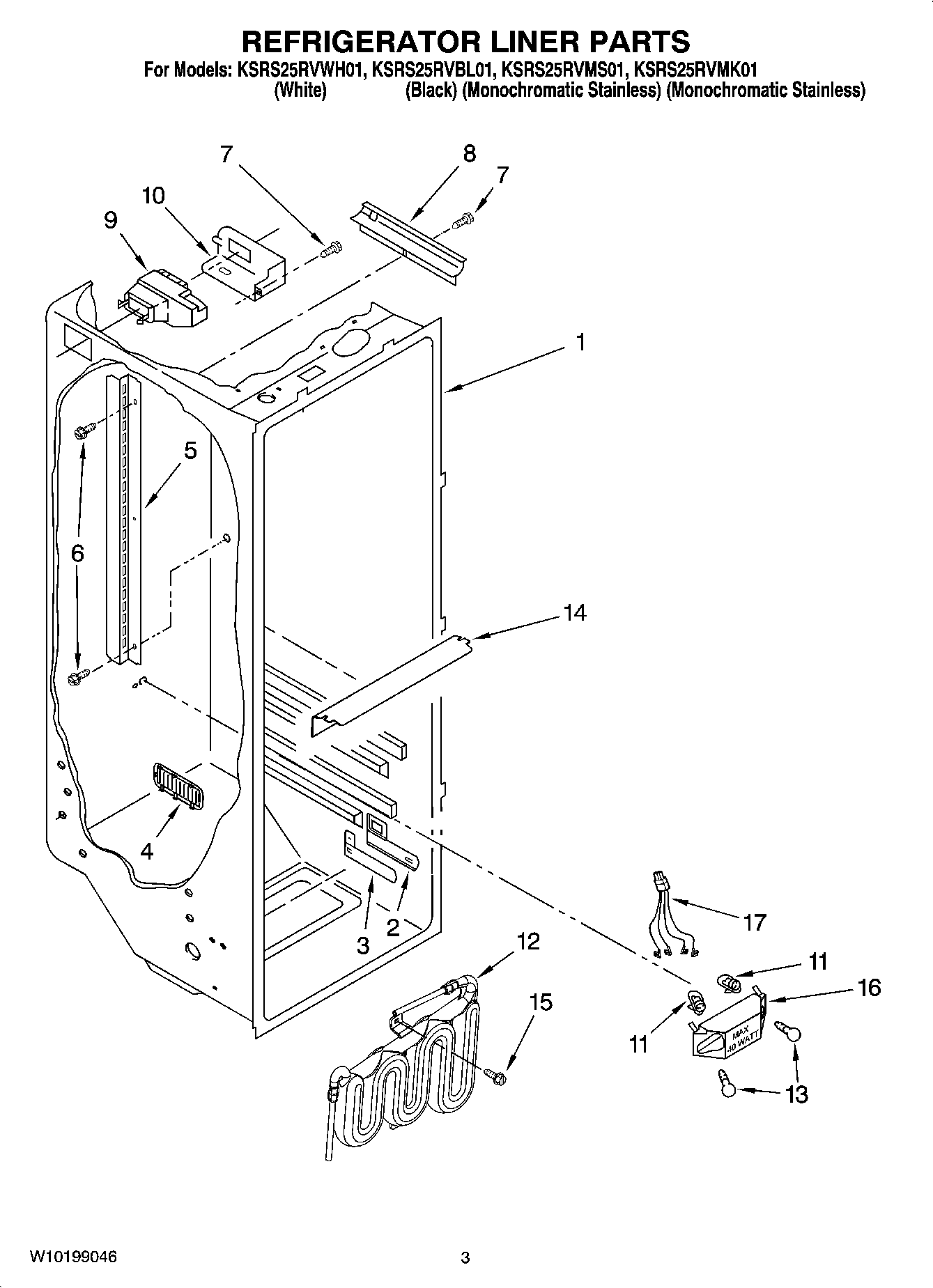

KSRS25RVWH01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Shelf Ladder
6	WP489478 Whirlpool Refrigerator Screw
7	W10759522 Whirlpool Screw
8	2150331 Whirlpool Refrigerator Wire Cover
9	Air Diffuser Assembly
10	WP2212240 Whirlpool Refrigerator Cover
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	RANGE ONLY 40W 120V APPL BULB
14	Light Lens
15	Screw (2)
16	Bracket, Dual Crisper Light
17	2311637 Whirlpool Refrigerator Wire Harness
