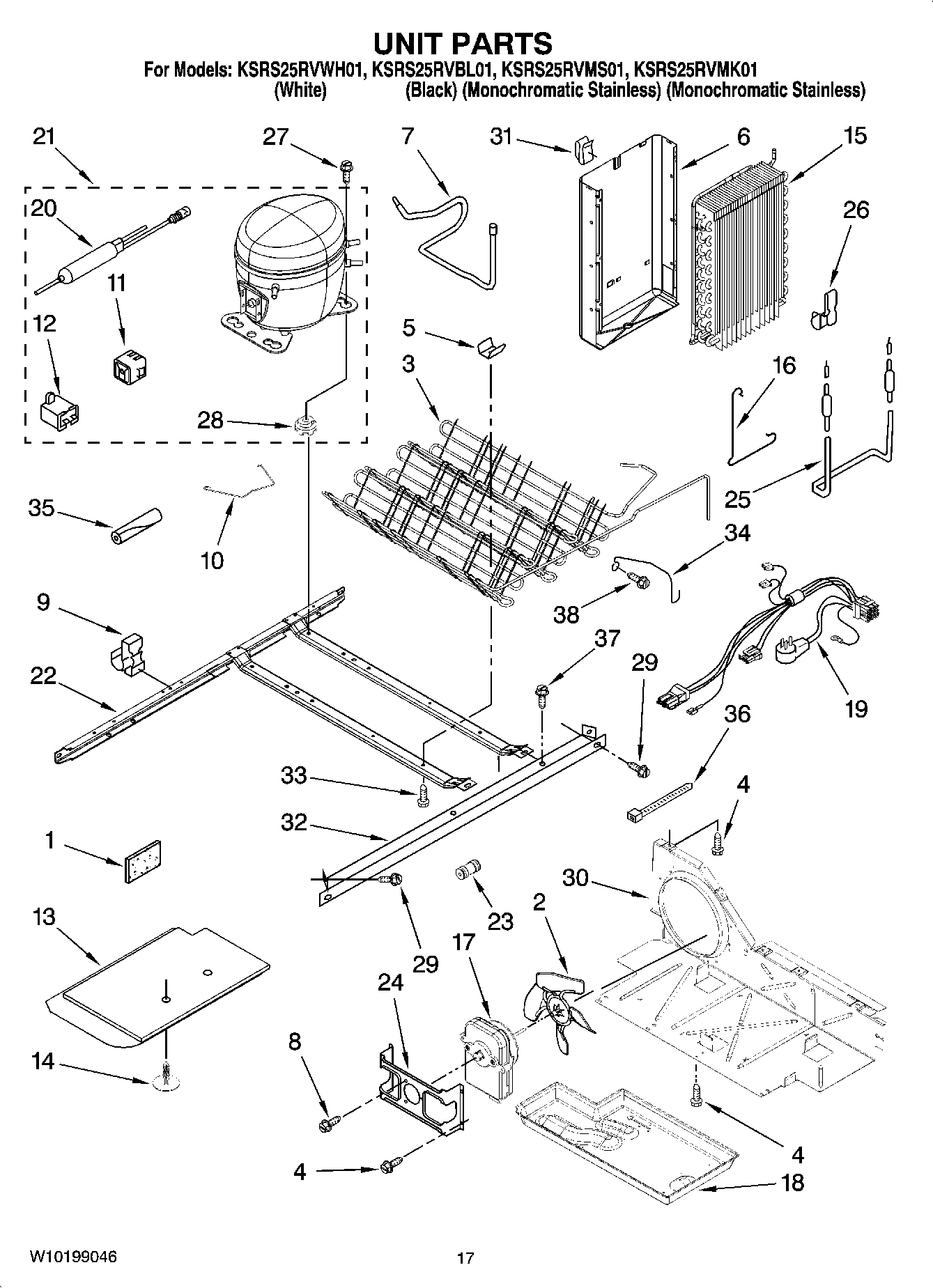

KSRS25RVWH01 11 – UNIT PARTSadmin2025-04-26T11:51:40+00:00KSRS25RVWH01 11 – UNIT PARTS ProductsPositionProductVALVE, ACCESS (1/2``)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 5.0 oz. (R-134A)VALVE, ACCESS (5/8``)Following Parts Not Illustrated and Optional Parts Not Included1W11553819 Whirlpool Refrigerator Insulation2W10156818 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip6Heat Shield7WP2205765 Whirlpool Refrigerator Tube8WP8533993 Whirlpool Refrigerator Screw9Clip, Wire & Tube10Clip, Retaining11WPW10189190 Whirlpool Start Device12WPW10662129 Whirlpool Refrigerator Run Capacitor13Unit Cover, Bottom14489396 Whirlpool Refrigerator Clip15WP2188823 Whirlpool Refrigerator Evaporator16Clamp17WP2188874 Whirlpool Refrigerator Condenser Motor18WPW10614158 Whirlpool Refrigerator Evaporator Tray19Harness, Unit20WPW10143759 Whirlpool Dryer Filter21W10139462 Whirlpool Refrigerator Compressor222304904 Whirlpool Frame Assembly23WPW10271543 Whirlpool Refrigerator Connector24WP2181929 Whirlpool Refrigerator Bracket25WP2323198 Whirlpool Refrigerator Heater26W11623163 Whirlpool Refrigerator Clip28876811 Whirlpool Grommet28WP4387558 Whirlpool Refrigerator Compressor Grommet29489340 Whirlpool Refrigerator Screw30W10896764 Whirlpool Refrigerator Air Baffle31Clip, Heat Shield322305374 Whirlpool Refrigerator Unit Rail33W11544659 Whirlpool Refrigerator Screw342260517 Whirlpool Fan Guard35SLEEVE36WPW10339879 Whirlpool Wire Tie37WP489427 Whirlpool Refrigerator Screw38WP489478 Whirlpool Refrigerator Screw
