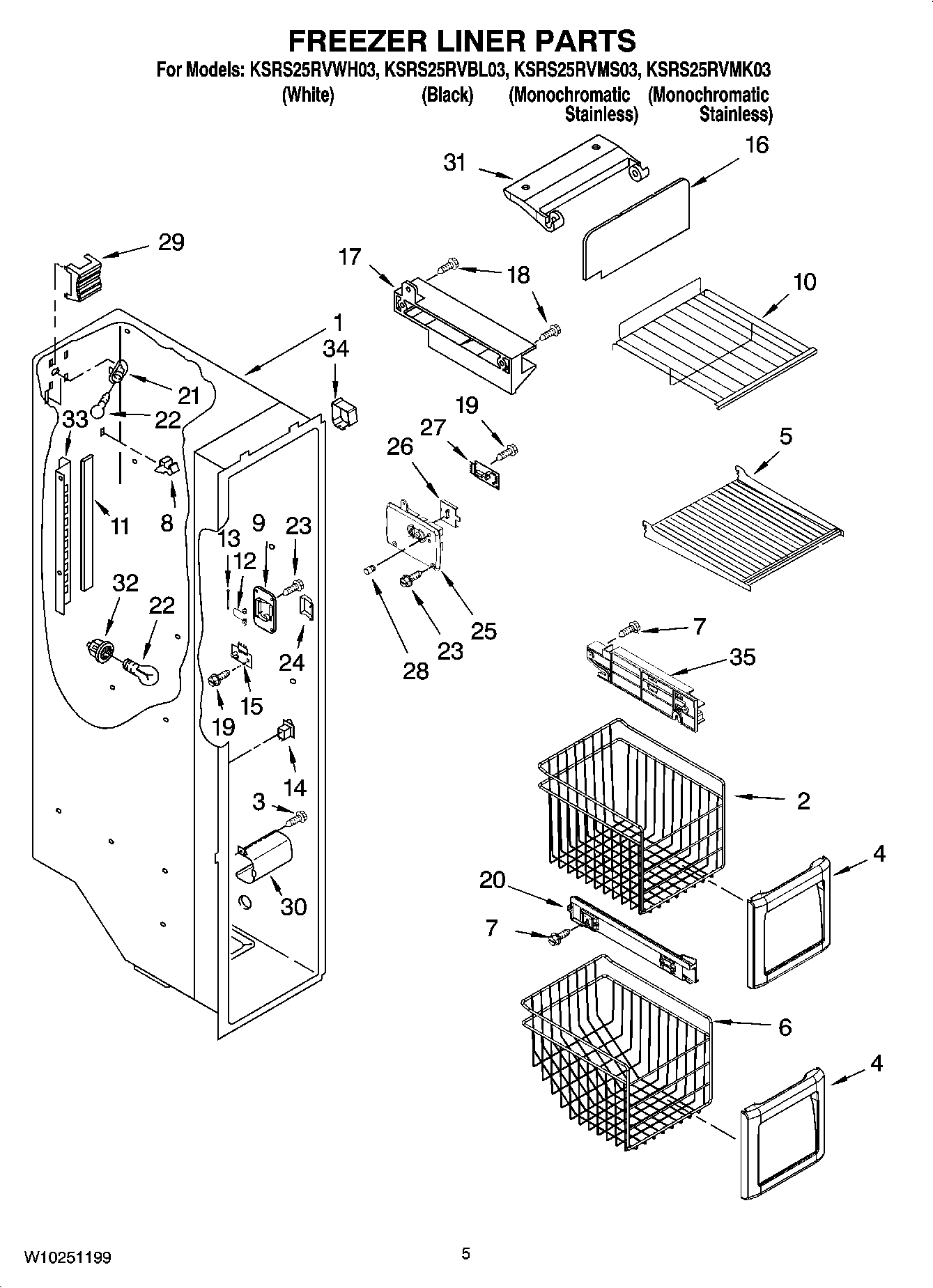

KSRS25RVWH03 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Basket, Deep
3	W10142289 Whirlpool Air Conditioner Screw
4	Front, Assembly Basket
5	Shelf (2)
6	Basket, Sloped
7	W10759522 Whirlpool Screw
8	2215823 Whirlpool Refrigerator Clip
9	WP2198587 Whirlpool Refrigerator Cover
10	Shelf, Slide Out Upper
11	Gasket
12	WP2198635 Whirlpool Refrigerator Spring
13	WP2198634 Whirlpool Door Pin
14	W11457217 Whirlpool Refrigerator Rocker Switch Combination
16	WP2255720 Whirlpool Refrigerator Ice Maker Door
17	Slide, Ice Maker
18	WP489478 Whirlpool Refrigerator Screw
19	2006254 Whirlpool Refrigerator Screw
20	Shelf Track (Right Side)
20	Shelf Track (Left Side)
21	4387478 Whirlpool Refrigerator Light Socket
22	RANGE ONLY 40W 120V APPL BULB
23	WPW10142283 Whirlpool Refrigerator Screw
24	WP2198633 Whirlpool Refrigerator Flipper
25	Cover, Receiver
26	2315398 Whirlpool Refrigerator Slide
27	W10757851-includeCORE Whirlpool Electronic Control+Core
28	WP2198643 Whirlpool Refrigerator Lens
29	Light Shield
30	Light Lens
31	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
32	SOCKET
33	Ladder (Right Side)
33	Ladder (Left Side)
34	2303234 Whirlpool Refrigerator Shield
35	Track, Basket-Dual (Left)
35	2301293 Whirlpool Refrigerator Track
