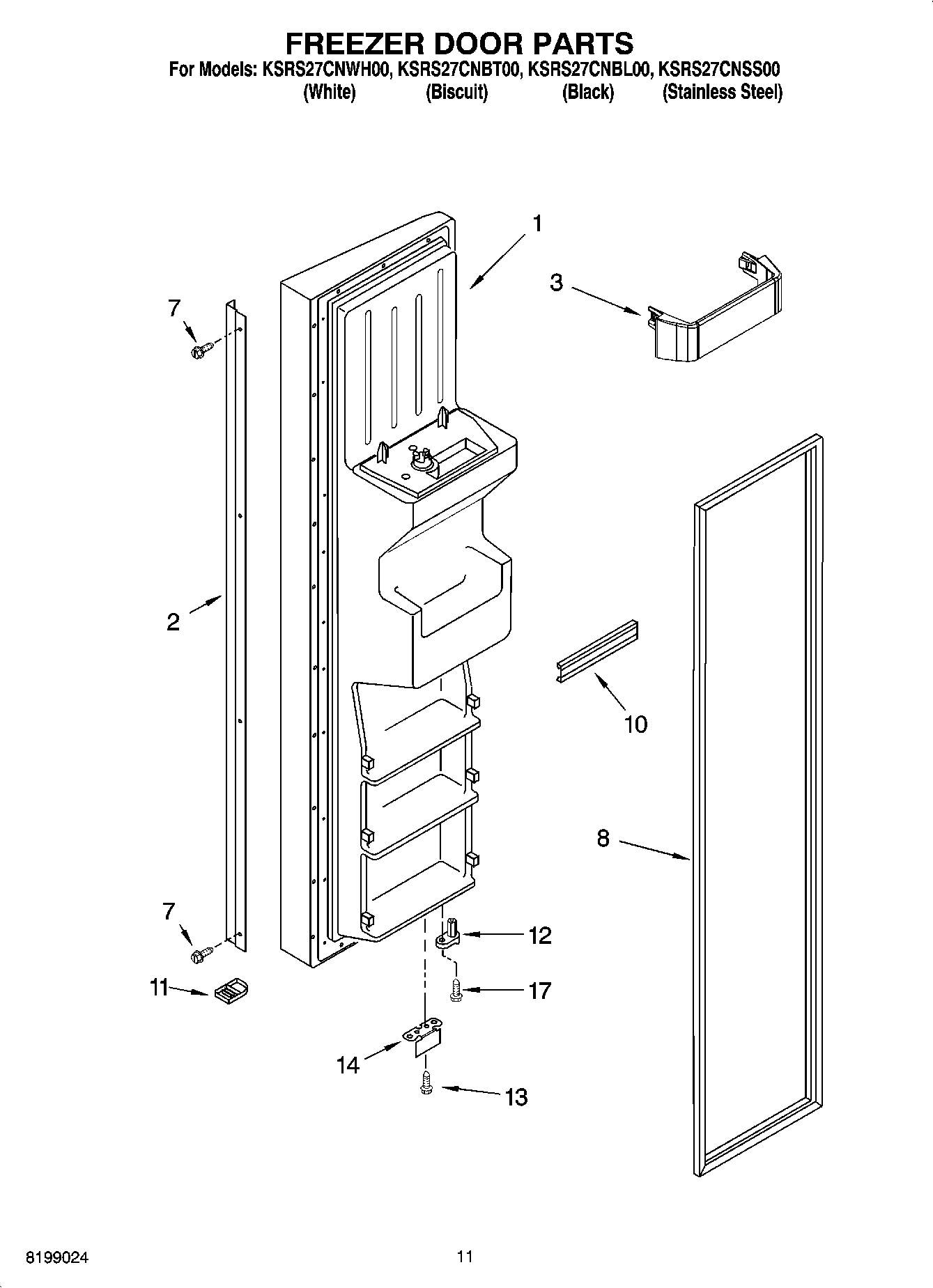

KSRS27CNBL00 07 – FREEZER DOOR PARTS

KSRS27CNBL00 07 – FREEZER DOOR PARTS

Written by

in

KSRS27CNBL00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2Handle (Black)
2Handle (Biscuit)
2Handle (White)
2Handle (Stainless)
3Trivet (4)
7Screw (White)
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
10WPW10307490 Whirlpool Door Trim Assembly
11Endcap, Handle (White)
11Endcap, Handle (Biscuit)
11Endcap, Handle (Black)
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
17WP3400012 Whirlpool Refrigerator Screw
