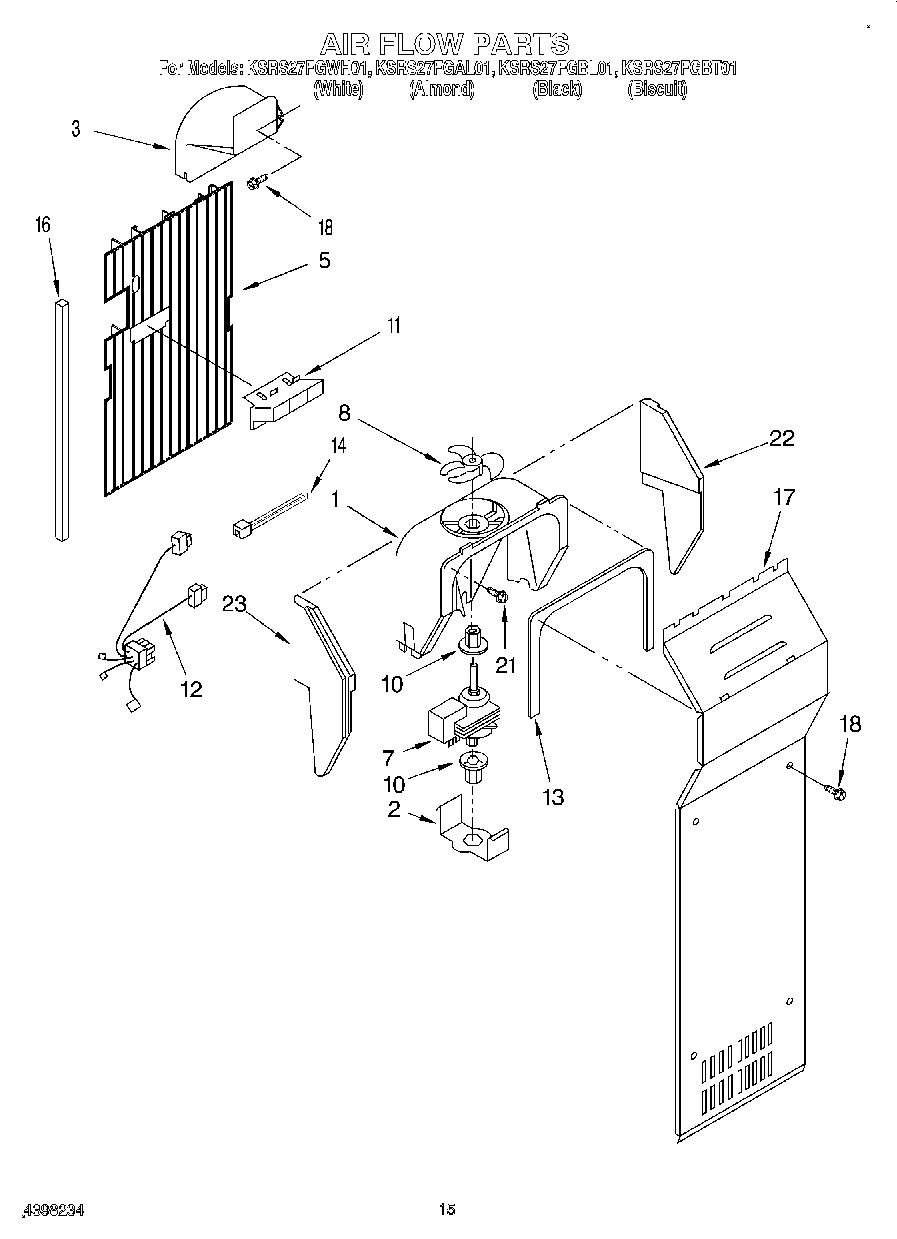

KSRS27FGBL01 09 – AIR FLOW

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
5	Air Duct Freezer
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
11	2182146 Whirlpool Refrigerator Duct
12	Harness, Fan Evaporator, And Heater, Bi-Metal
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	WP2304241 Whirlpool Refrigerator Gasket
17	Cover, Evaporator
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
23	4388358 Whirlpool Refrigerator Support Bracket
