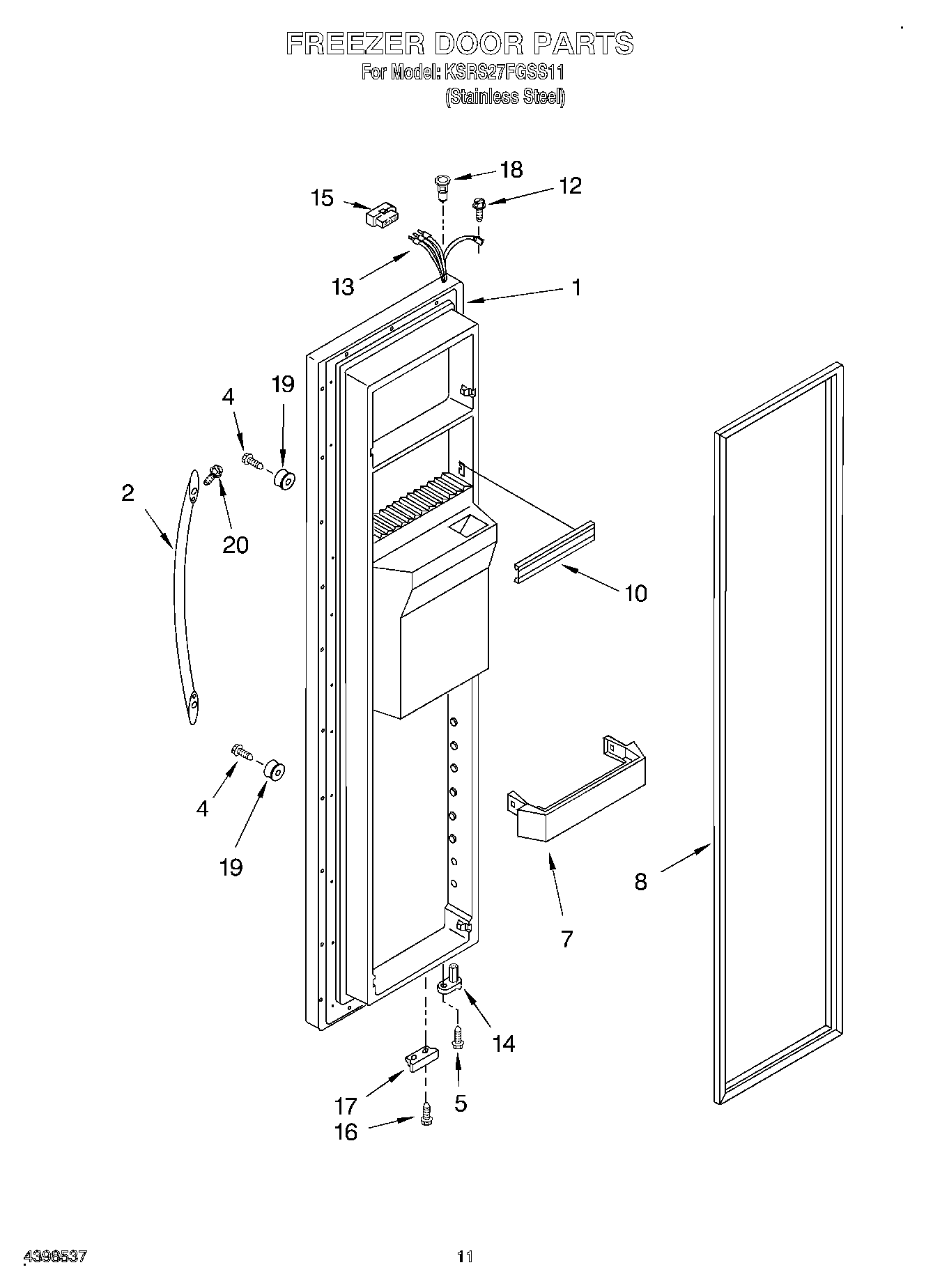

KSRS27FGSS11 07 – FREEZER DOOR

KSRS27FGSS11 07 – FREEZER DOOR

Written by

in

KSRS27FGSS11 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless Steel)
2Handle
4WP489463 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18WP2182181 Whirlpool Refrigerator Thimble
19Stud, Handle
20Setscrew, 10-32
