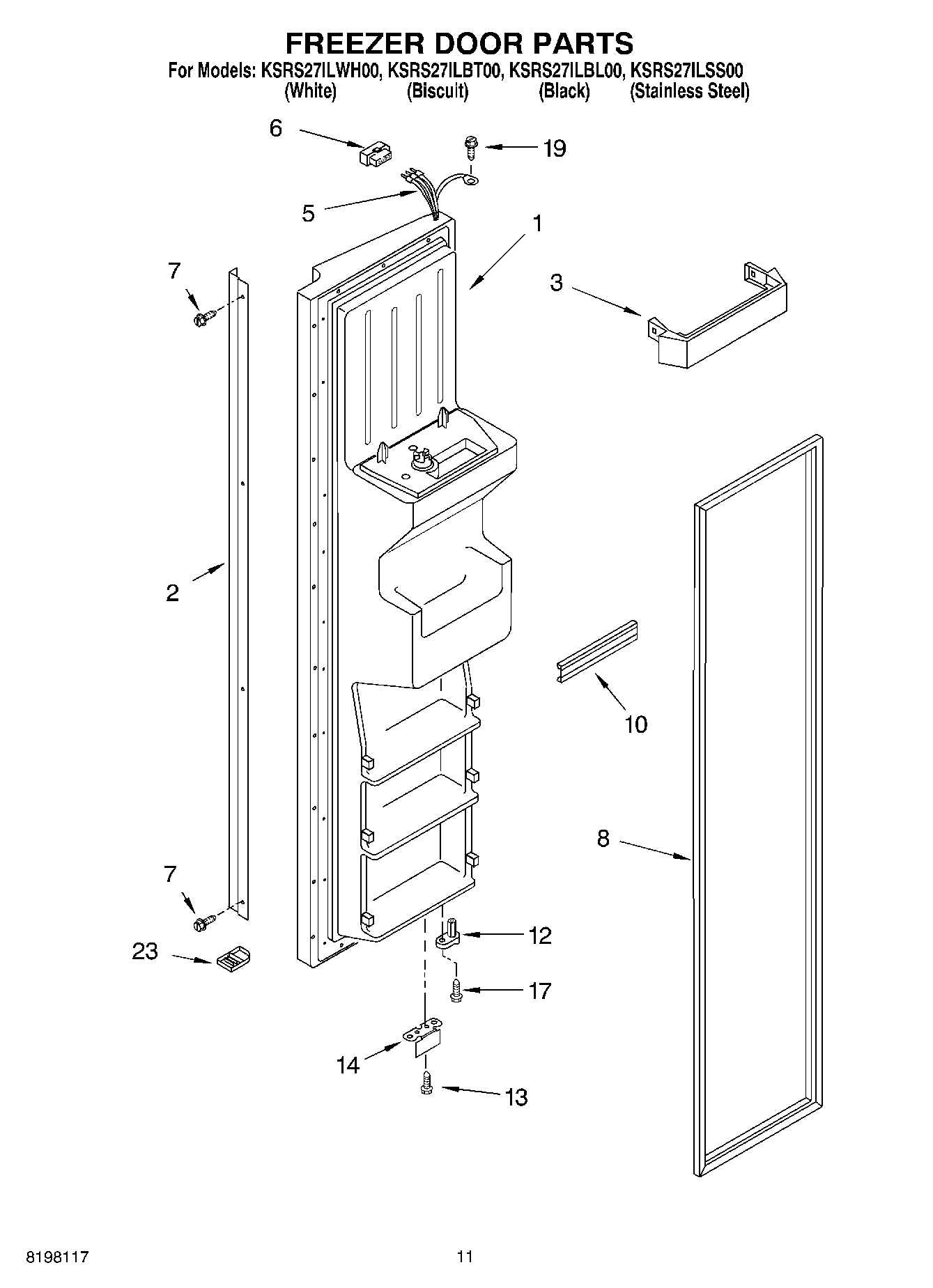

KSRS27ILBL00 07 – FREEZER DOOR
Written by
in
KSRS27ILBL00 07 – FREEZER DOOR
Products
Position
Product
1
Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2
Handle (Black)
2
Handle (Stainless Steel)
2
Handle (Biscuit)
2
Handle (White)
3
Shelf Bin (4)
5
Dispenser Harness
6
WP2154473 Whirlpool Refrigerator Connector
7
Screw (Biscuit)
7
Screw (Black)
7
Screw (White)
7
Screw
8
2159074 Whirlpool Door Gasket Seal
8
2159082 Whirlpool Freezer Door Gasket Black
10
WPW10307490 Whirlpool Door Trim Assembly
12
WP2182179 Whirlpool Cam Closer
13
WP489483 Whirlpool Screw
14
Bracket, Door Stop
17
WP3400012 Whirlpool Refrigerator Screw
19
WP489128 Whirlpool Refrigerator Screw
23
Endcap, Handle (White)
23
Endcap, Handle (Biscuit)
23
Endcap, Handle (Black)
←
