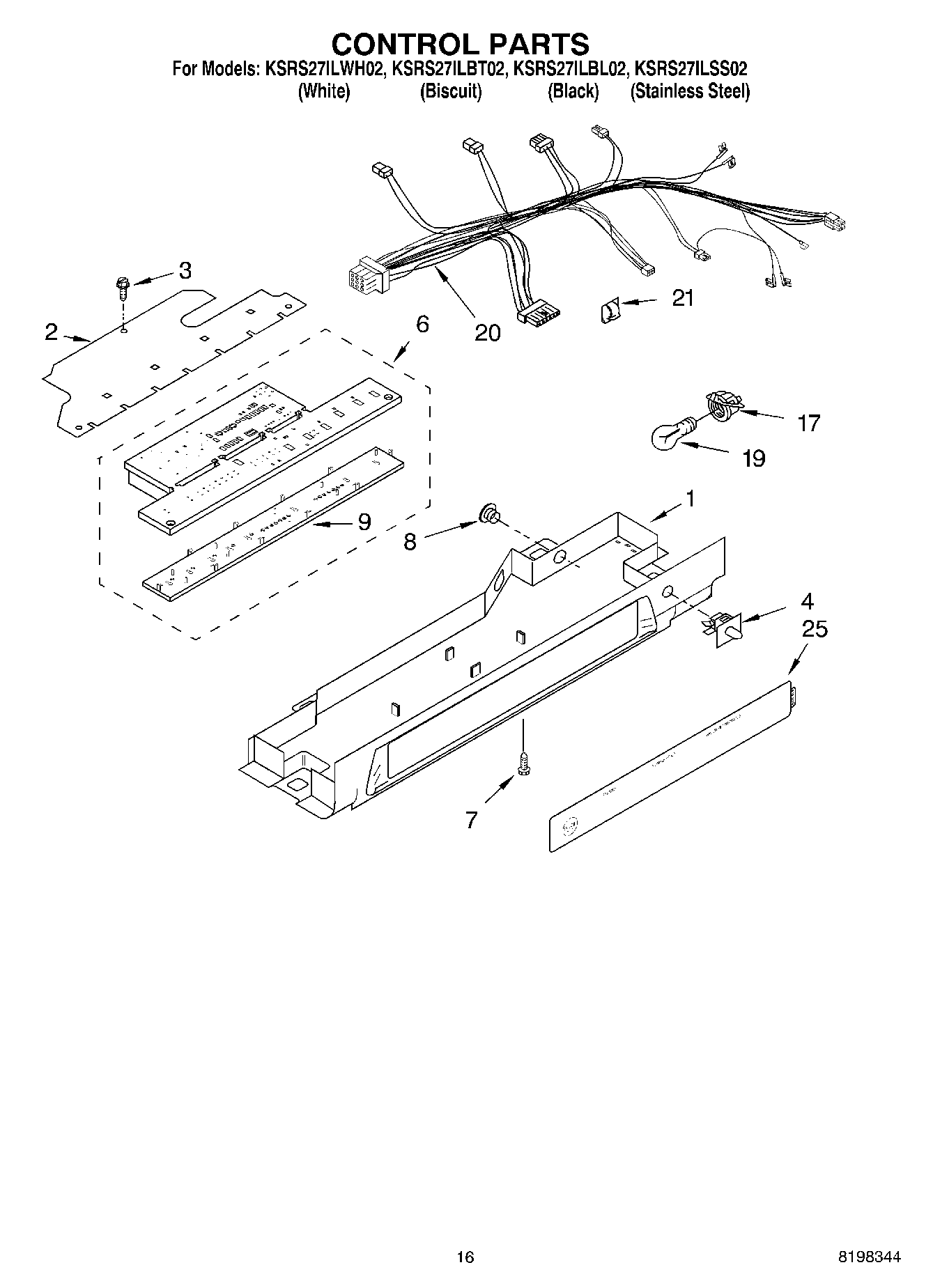

KSRS27ILWH02 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board
7	WP488488 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Insert, Control Board
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Harness, Control Box
21	WP1115374 Whirlpool Refrigerator Clip
25	Overlay, Control Box
