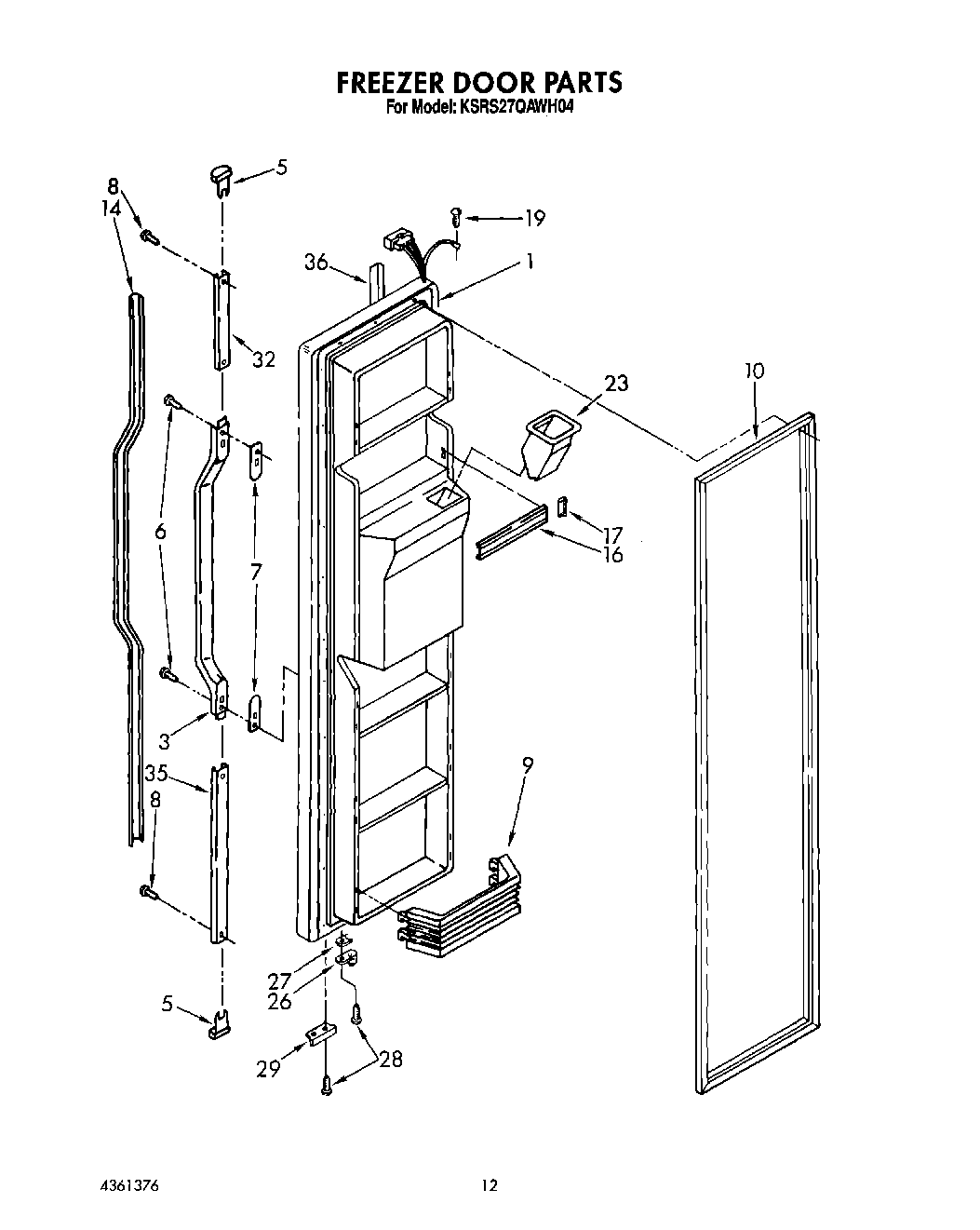

KSRS27QAAL04 08 – FREEZER DOORadmin2025-04-26T12:03:50+00:00KSRS27QAAL04 08 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item 10 And Dispenser Front Parts) (Almond) |
| 1 | Freezer Door (Includes Item 10 And Dispenser Front Parts) (White) |
| 3 | Handle |
| 4 | Seal, Hinge Pin |
| 5 | End Cap (2) |
| 7 | Spacer, Handle |
| 8 | Screw |
| 9 | Shelf Bin (4) |
| 10 | 2159074 Whirlpool Door Gasket Seal |
| 14 | Insert, Handle |
| 14 | Insert, Handle (Almond) |
| 16 | Trim, Door Shelf |
| 17 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 19 | WP488234 Whirlpool Air Conditioner Screw |
| 23 | Chute, Ice |
| 26 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 27 | WP1104787 Whirlpool Refrigerator Shim |
| 28 | WP489069 Whirlpool Compactor Screw |
| 29 | Bracket, Door Stop (Black) |
| 32 | Retainer, Insert |
| 35 | Retainer, Insert |
| 36 | Trim, Door |
