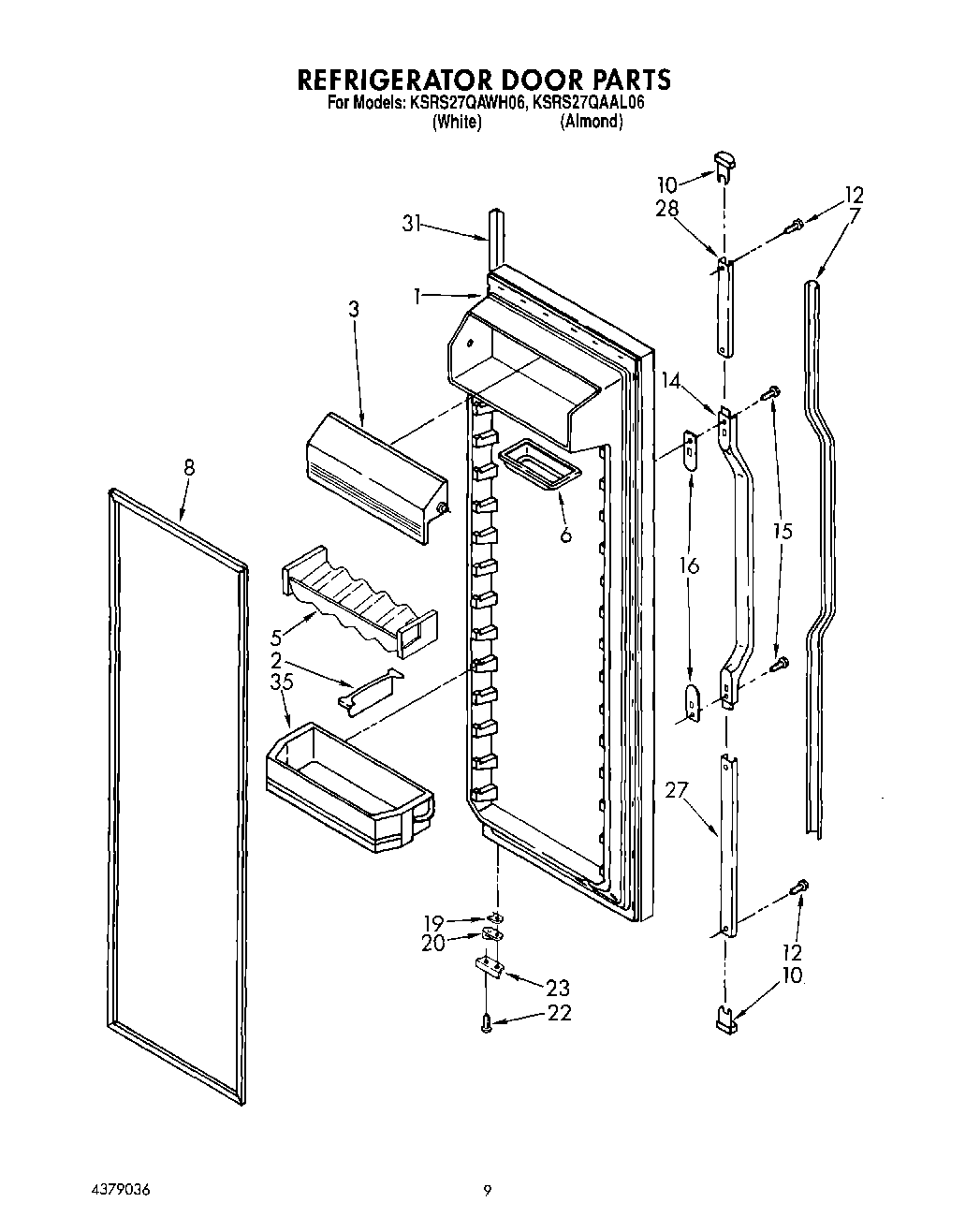

KSRS27QAAL06 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Almond)
1	Refrigerator Door (Includes Item 8) (White)
2	Load Lock
3	Compartment Door,
5	WPL 1125981
6	Butter, Tray
7	Insert, Handle
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
16	Spacer, Handle
19	WP1104787 Whirlpool Refrigerator Shim
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop (Chrome)
27	Retainer, Insert
28	Retainer, Insert
31	Trim, Door
35	Black Glass
35	Trim Kit Trim Kit Panels
35	Handle Inserts (Black Grille Kit)
35	Handle Inserts (Woodgrain)
35	Handle Inserts (Black)
35	Shelf Bin (4)
35	Acrylic Panel Kit (White)
35	Acrylic Panel Kit (Almond)
