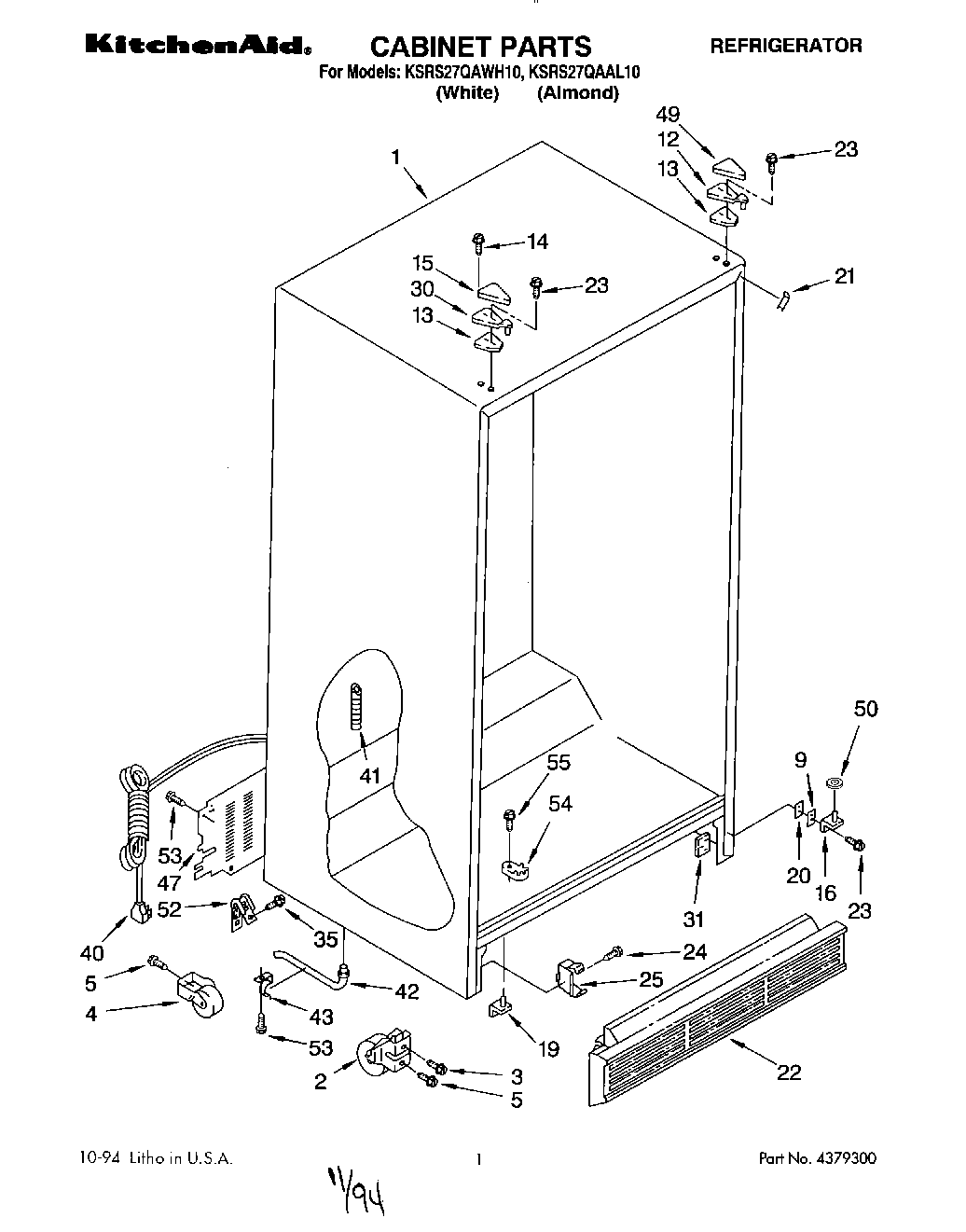

KSRS27QAAL10 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
9	Shim, Bottom Hinge
12	Hinge Top (R.H.)
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Bottom (R.H) (Chrome)
19	Hinge Bottom (L.H) (Chrome)
20	Spacer, Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille (White)
22	Grille (Almond)
23	WP999367 Whirlpool Refrigerator Screw
24	WP489478 Whirlpool Refrigerator Screw
25	WP2155013 Whirlpool Refrigerator Clip
30	WP2196046 Whirlpool Refrigerator Door Hinge
31	Tap Plate (2)
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188755 Whirlpool Rear Panel
49	1119787 Whirlpool Refrigerator Hinge Cover
50	Washer, 7/16
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
