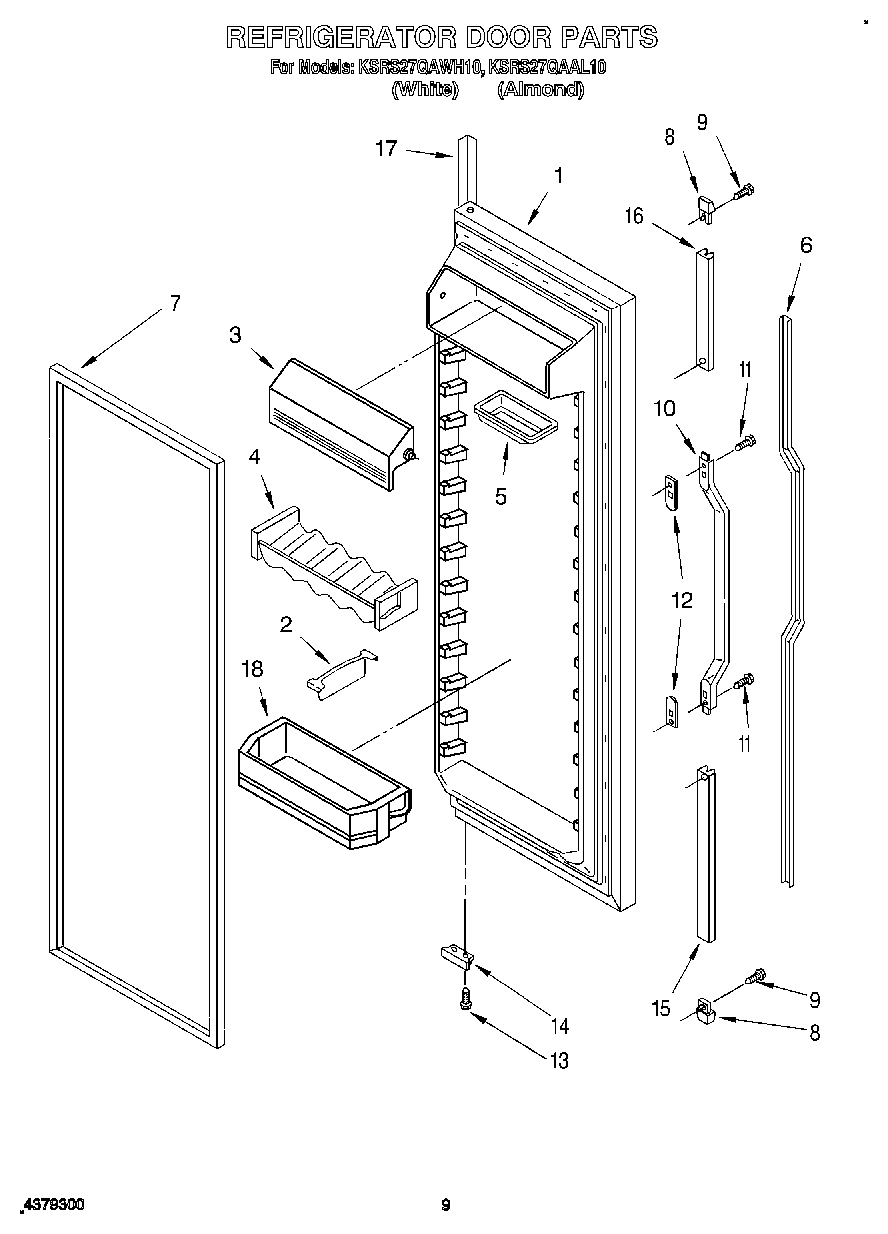

KSRS27QAAL10 06 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2155734
	Modular Icemaker Service Sheet
	WPL LIT2168863
	WPL LIT2169394
1	Refrigerator Door (Includes Item 7) (White)
1	Refrigerator Door (Includes Item 7) (Almond)
2	Load Lock
3	Door, Compartment
4	WPL 1125981
5	Butter, Tray
6	Insert, Handle (Almond)
6	Insert, Handle
7	2159075 Whirlpool Door Gasket Seal
8	End Cap (2)
9	Screw
10	Handle
12	Spacer, Handle
13	WP999367 Whirlpool Refrigerator Screw
14	Bracket, Door Stop (Chrome)
15	Retainer, Insert
16	Retainer, Insert
17	Trim, Door
18	Trim Kit Trim Kit Panels
18	WPL 876029
18	Black Glass
18	Handle Inserts (Black Grille Kit)
18	Shelf Bin (4)
18	Acrylic Panel Kit (Almond)
18	212643 Whirlpool Refrigerator Permagum Sealer
18	Handle Inserts (Black)
18	Handle Inserts (Woodgrain)
18	Acrylic Panel Kit (White)
18	Transformer (115-230 Volt)
18	606755 Whirlpool Refrigerator Bag
18	511873 Whirlpool Refrigerator Paint
18	350942 Whirlpool Spray Paint
18	Almond (Uncut)
18	Leveler (Thinner)
18	WP72107 Whirlpool Touchup
18	799344 Whirlpool Refrigerator Paint
18	72017 Whirlpool Appliance Touch-Up Paint White
18	350956 Whirlpool Spray Assembly
18	833938 Whirlpool Refrigerator Terminal
18	876370 Whirlpool Refrigerator Insulation
18	WP503695 Whirlpool Refrigerator Sealer
18	WPW10312300 Whirlpool Refrigerator Ice Container
18	72032 Whirlpool Touch Up Paint Black
18	285006 Whirlpool Spray
18	WPL 799833
18	Enamel, Black (1 Qt. Uncut)
18	CEMENT, ALUMILASTIC (1 1/4 OZ.)
18	TAPE, VINYL (3/4 X 108“)
18	WP542638 Whirlpool Refrigerator Grease
18	WP505587 Whirlpool Refrigerator Sealer
18	350930 Whirlpool White Spray Paint
