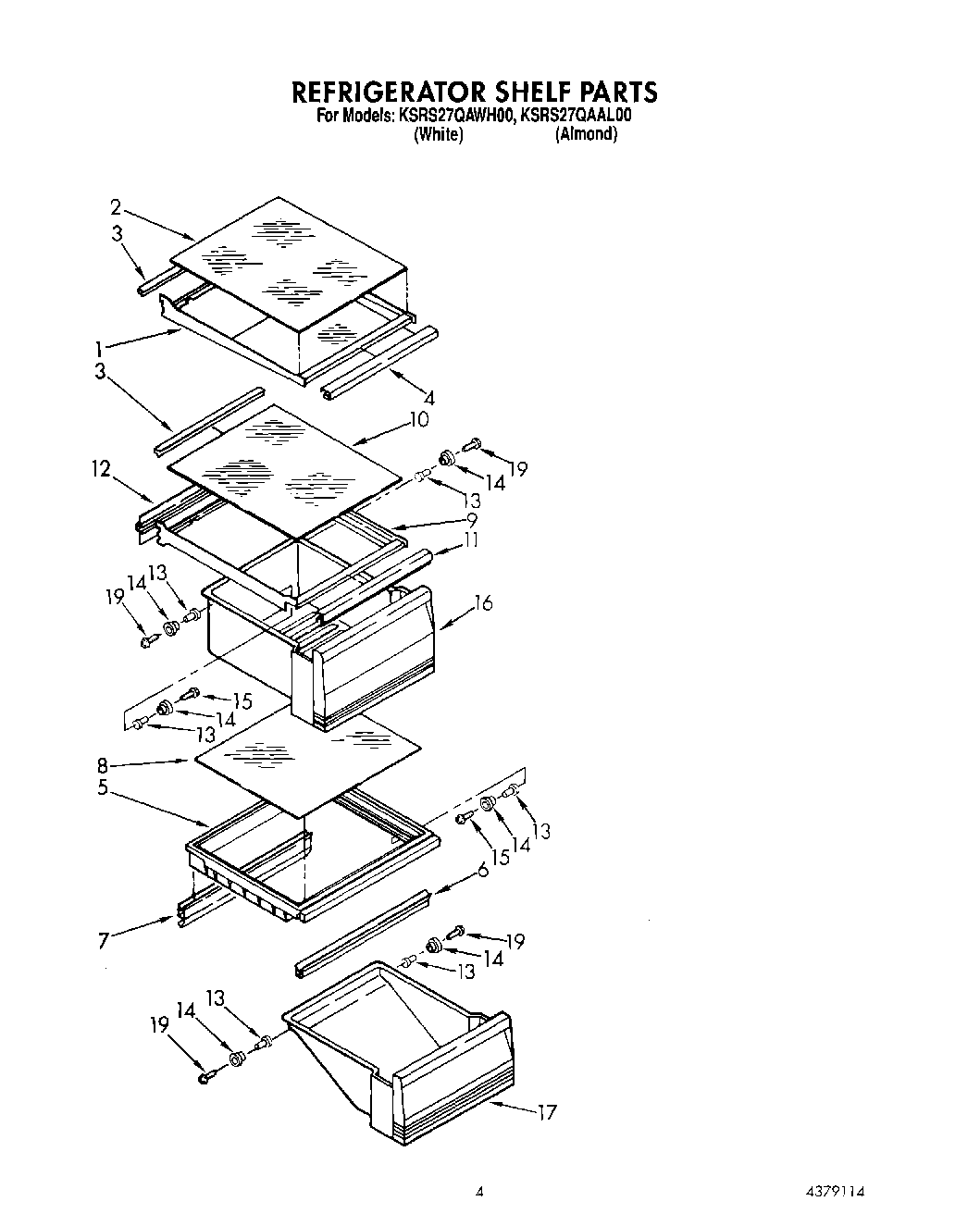

KSRS27QAWH00 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Glass, Shelf
3	Retainer
4	Gasket, Front
5	WP2161491 Whirlpool Crisper Drawer Cover
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Cover (Rear)
8	Glass, Cover (2)
9	Pan Shelf & Slide (Includes 13, 14, & 15) Assembly
10	Glass, Shelf
11	Gasket (Front)
12	Gasket (Rear)
13	Eyelet, Roller
14	Roller
15	WP489261 Whirlpool Refrigerator Screw
16	Crisper Pan (2) (Includes 13, 14 & 19)
17	Utility Pan (Includes 13, 14 & 19)
