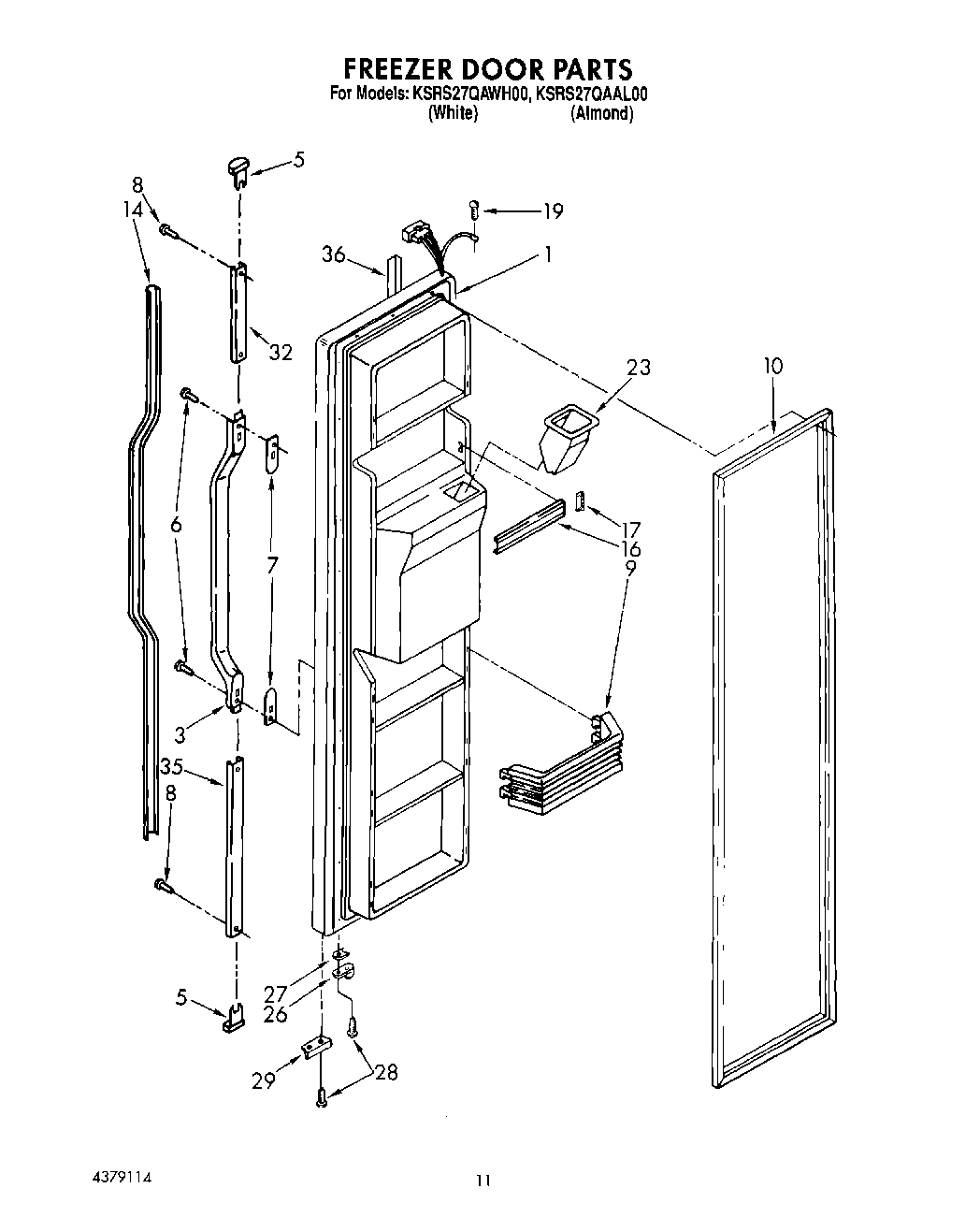

KSRS27QAWH00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 10 And Dispenser Front Parts) (Almond)
1	Freezer Door (Includes Item 10 And Dispenser Front Parts) (White)
3	Handle
5	End Cap (2)
7	Spacer, Handle
8	Screw
9	Shelf Bin (4)
10	2159074 Whirlpool Door Gasket Seal
14	Insert, Handle
14	Insert, Handle (Almond)
16	Trim, Door Shelf
17	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19	WP488234 Whirlpool Air Conditioner Screw
23	Chute, Ice
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
28	WP489069 Whirlpool Compactor Screw
29	Bracket, Door Stop (Black)
32	Retainer, Insert
35	Retainer, Insert
36	Trim, Door
