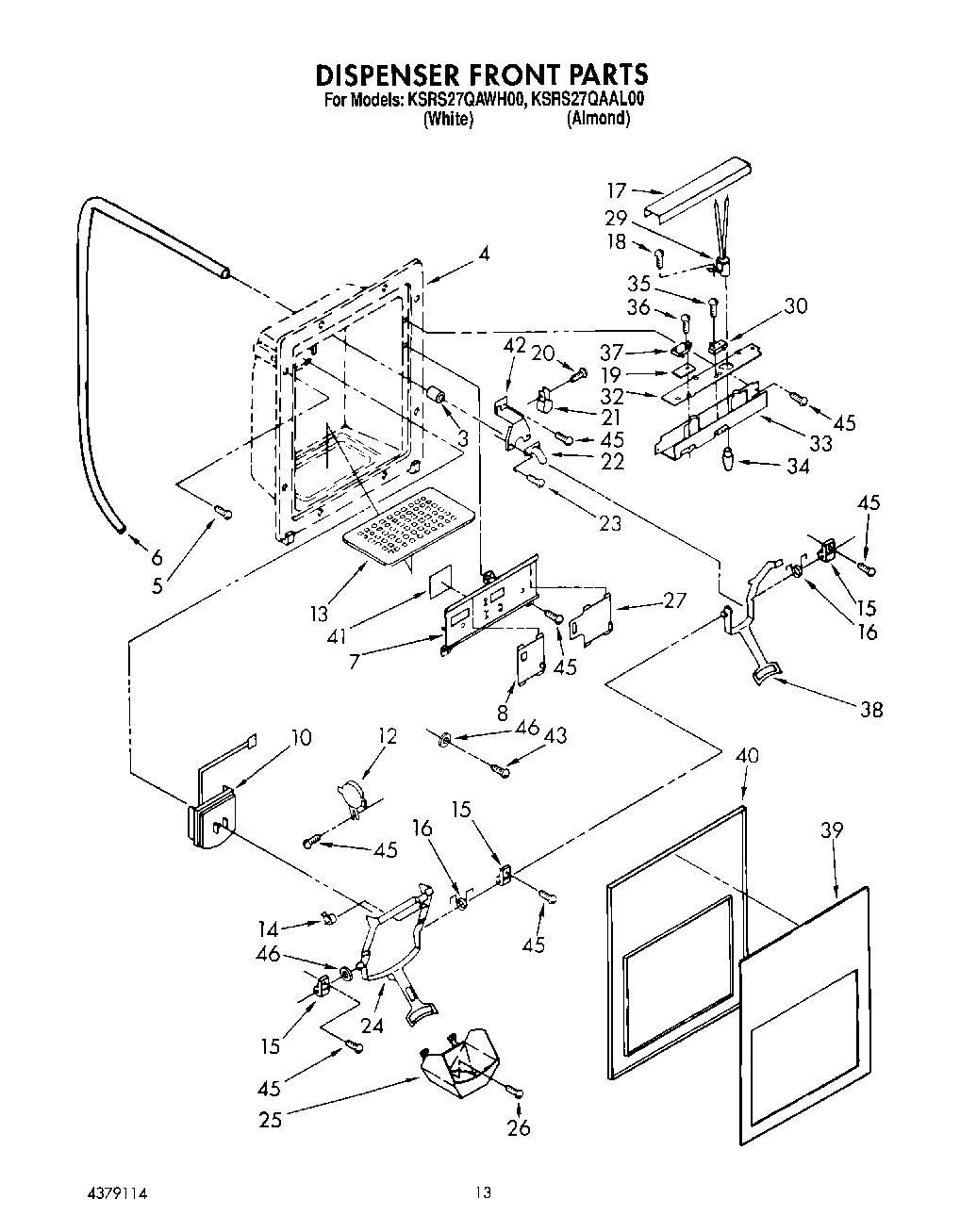

KSRS27QAWH00 08 – DISPENSER FRONT

Products

Position	Product
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch (Almond)
8	Slide, Cube/Crush Switch
10	WP2180353 Whirlpool Dispenser Door
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (White)
24	Lever Assembly, Ice Dispenser (Almond)
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch (Almond)
29	Lamp Holder
30	Switch (2)
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw, 4-40 x 1
36	Screw,
37	814037 Whirlpool Microwave Switch
38	WPL 2159198
38	Lever Assembly, Water Dispenser (White)
39	WPL 1125801
39	WPL 1125798
40	WPL 1125673
40	WPL 1125805
41	Heat Shield, Frame
42	Bracket, Water
43	WP3400906 Whirlpool Refrigerator Screw
45	Screw
46	Washer
