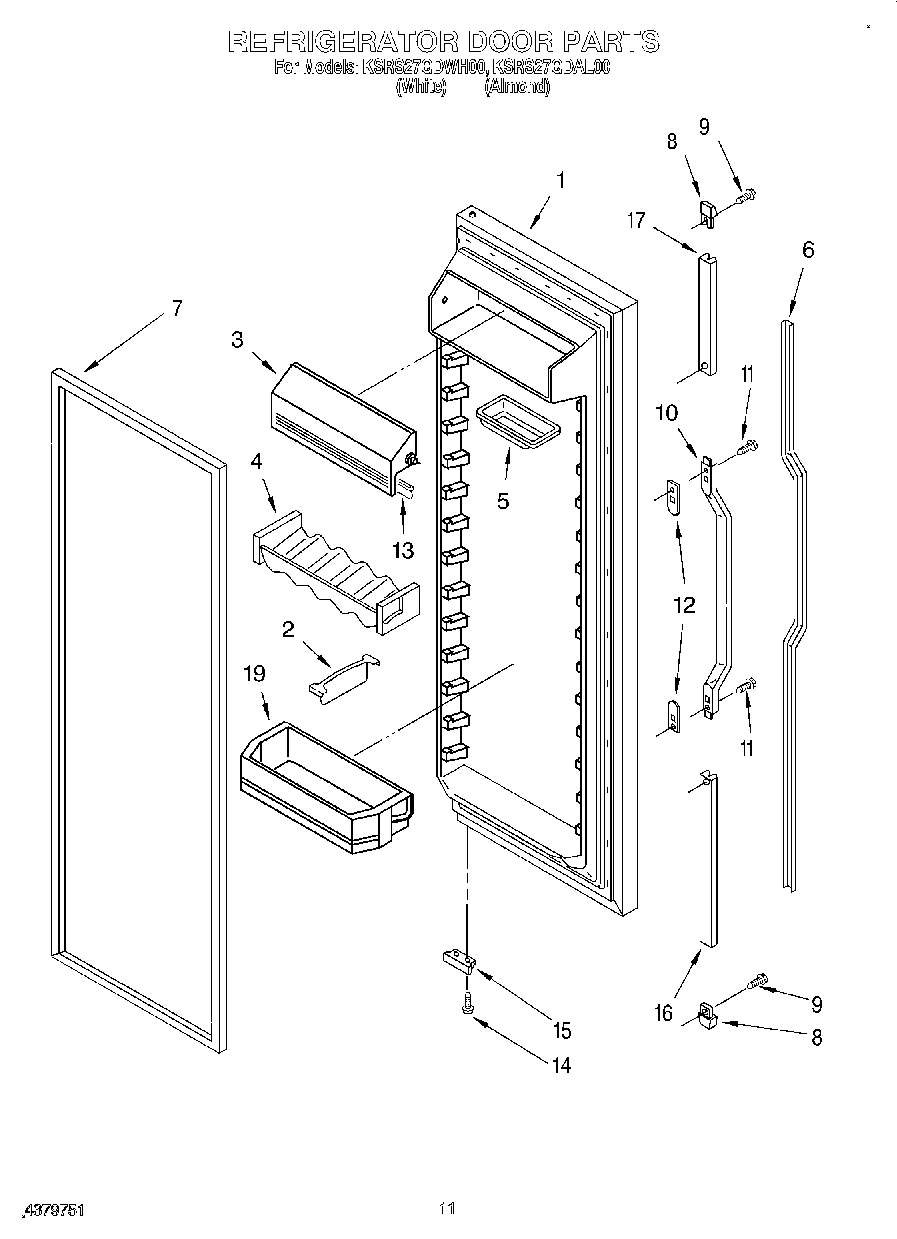

KSRS27QDAL00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7) (Almond)
1	Refrigerator Door (Includes No.7) (White)
2	Divider, Door Bin (2)
3	Door, Compartment
4	WPL 1125981
5	Butter, Tray
6	Insert, Handle (Almond)
6	Insert, Handle
7	2159075 Whirlpool Door Gasket Seal
8	End Cap (2)
9	Screw
10	Handle
12	Spacer, Handle
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop (Chrome)
16	Retainer, Insert
17	Retainer, Insert
19	Bin, Door Shelf
19	Handle Inserts (Black Grille Kit)
19	Handle Inserts (Woodgrain)
19	Black Glass
19	Handle Inserts (Black)
19	Trim Kit
19	Acrylic Panel Kit (White)
19	Acrylic Panel Kit (Almond)
