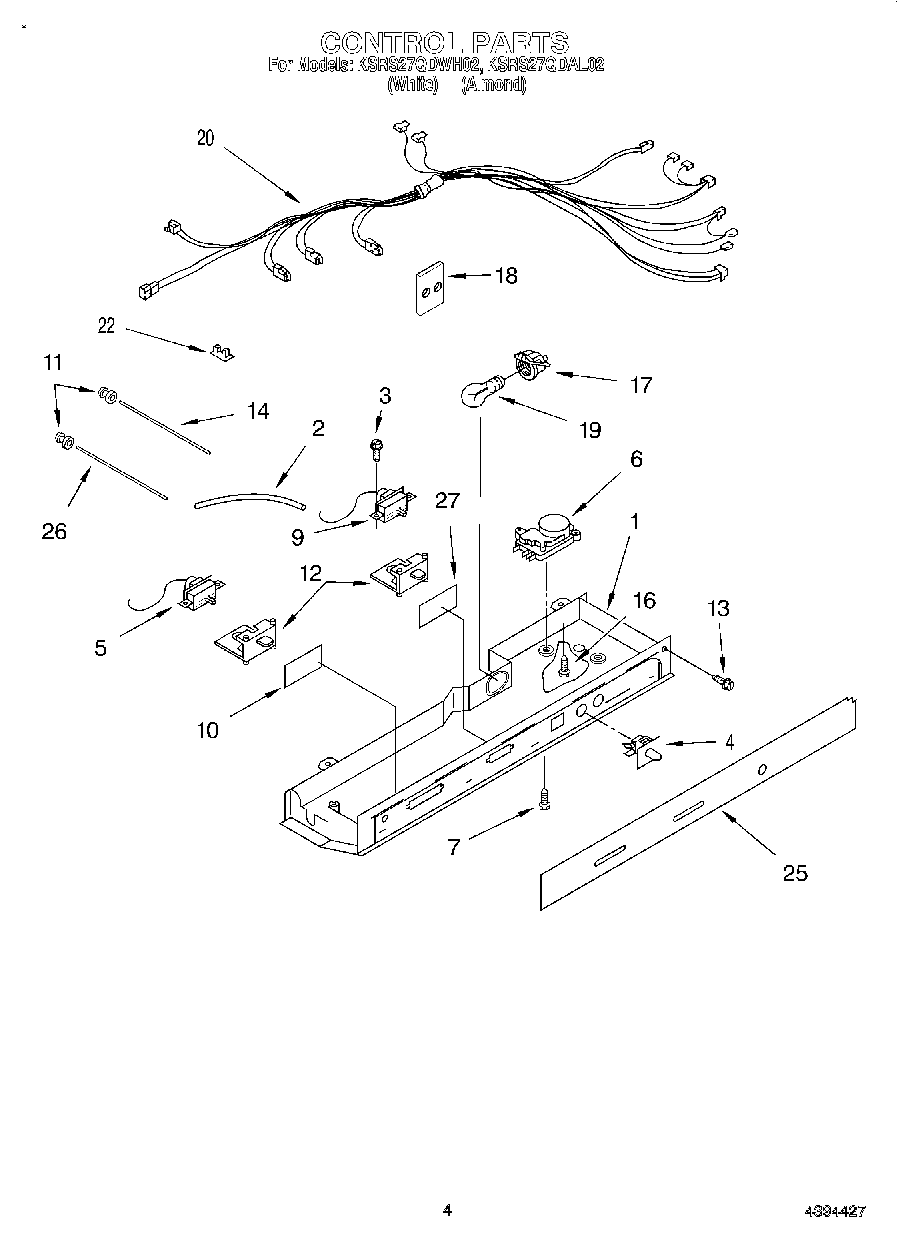

KSRS27QDWH02 03 – CONTROLadmin2025-04-26T12:03:48+00:00KSRS27QDWH02 03 – CONTROL ProductsPositionProduct12200135 Whirlpool Refrigerator Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2182770 Whirlpool Refrigerator Thermostat6Defrost Timer (10 Hr.)7489392 Whirlpool Refrigerator Screw9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19W11679940 Whirlpool Refrigerator Light Bulb Assembly20Control Box Harness22CLIP, WIRING25Escutcheon, Control Box26Light Bar (FC)27Window
