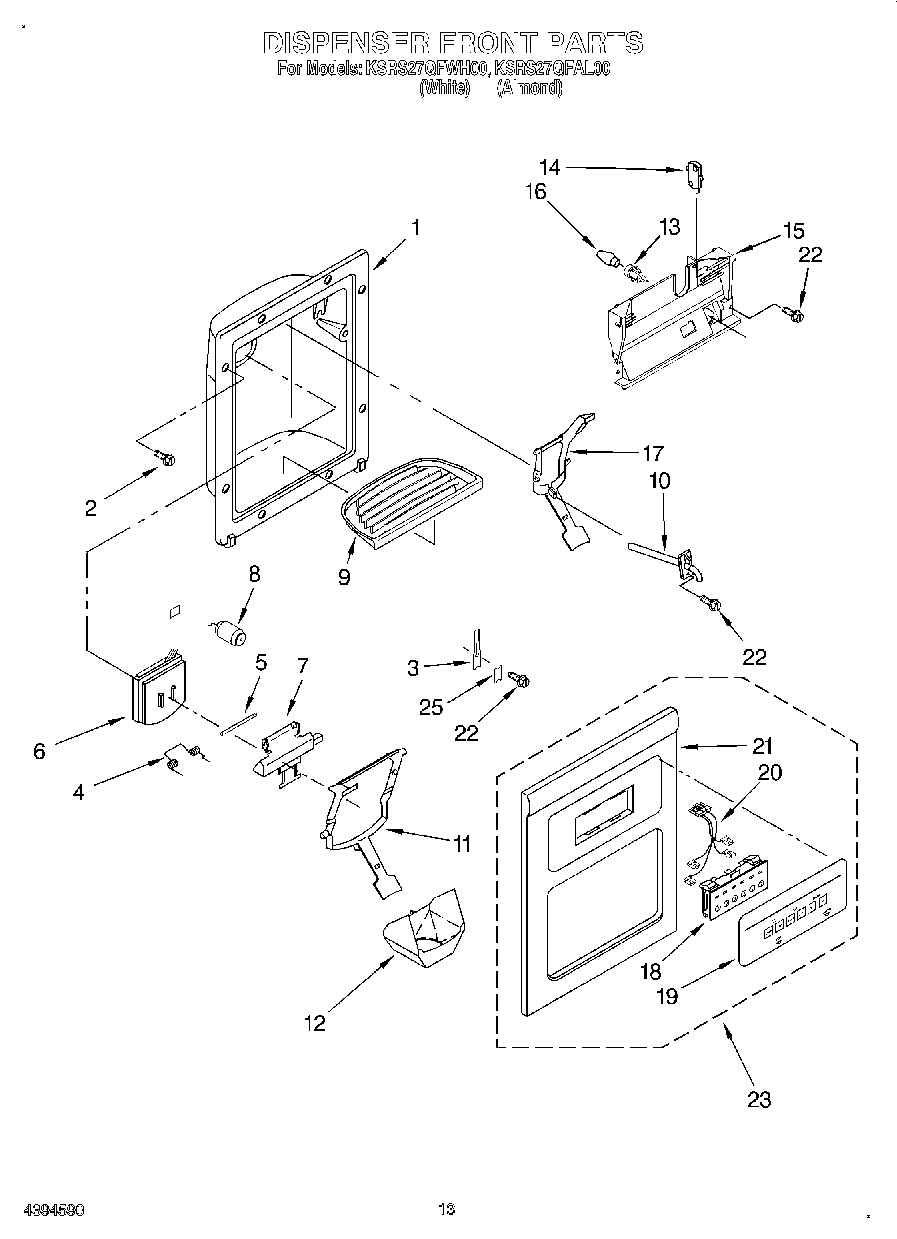

KSRS27QFAL00 08 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not a Serviceable Part)
2	WP489069 Whirlpool Compactor Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	Door, Ice
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow
9	Grille, Overflow (Almond)
10	WP4388152 Whirlpool Refrigerator Fitting
11	Lever, Ice Dispenser (Almond)
11	Lever, Ice Dispenser (White (White Shadow Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	Lever, Water Dispenser (Almond)
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
18	WP2180236 Whirlpool Refrigerator Switch
19	Overlay, Front Cover (Almond)
19	Overlay, Front Cover (White)
20	2311650 Whirlpool Refrigerator Wire Harness
21	Front Cover, Housing (Not Available, Order No.23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 &
23	WPL 2180397
25	WP2195051 Whirlpool Refrigerator Clip
