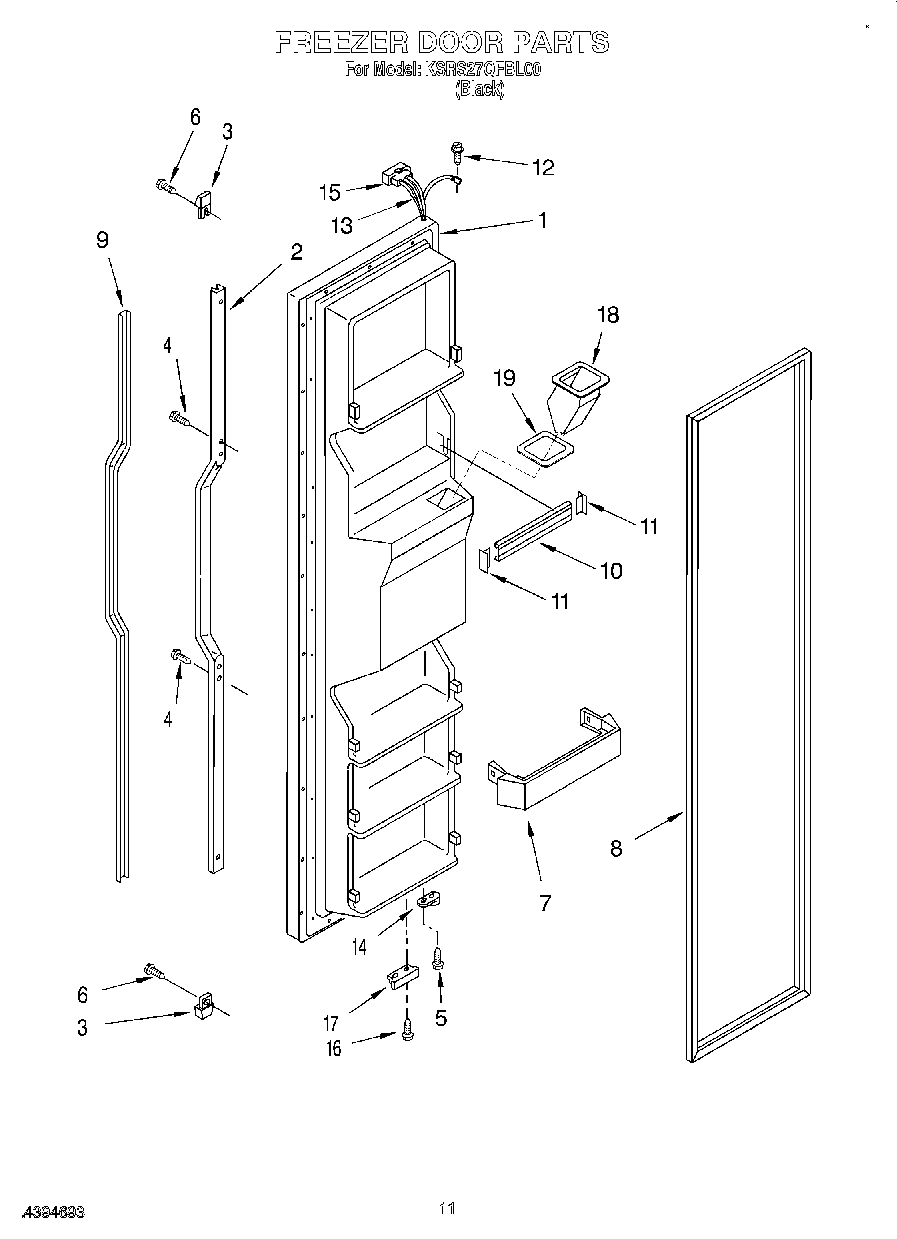

KSRS27QFBL00 07 – FREEZER DOOR

KSRS27QFBL00 07 – FREEZER DOOR

Written by

in

KSRS27QFBL00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
2Retainer, Insert (Black)
3End Cap (Black)
4WP489463 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6Screw
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
9Handle, Insert (Black)
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12WP488234 Whirlpool Air Conditioner Screw
13Wire Harness
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18Chute, Ice
19Seal, Housing
