KSRS27QGBT03 10 – UNIT

KSRS27QGBT03 10 – UNIT

Written by

in

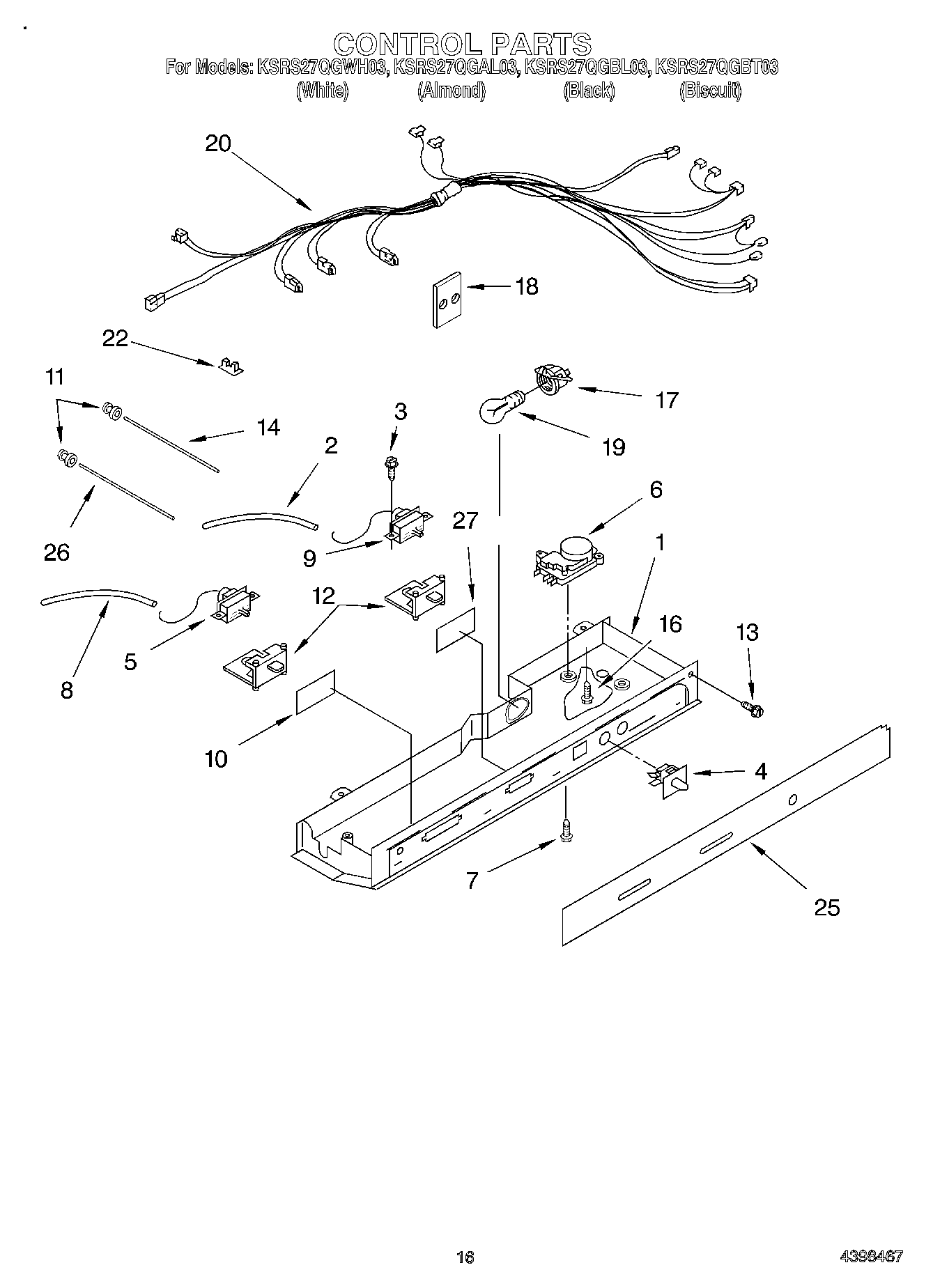

KSRS27QGBT03 10 – UNIT

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2182770 Whirlpool Refrigerator Thermostat
6Defrost Timer (10 Hr.)
7489392 Whirlpool Refrigerator Screw
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19RANGE ONLY 40W 120V APPL BULB
20Harness, Control Box
22CLIP, WIRING
25Escutcheon, Control Box
26Light Bar (FC)
27Window
