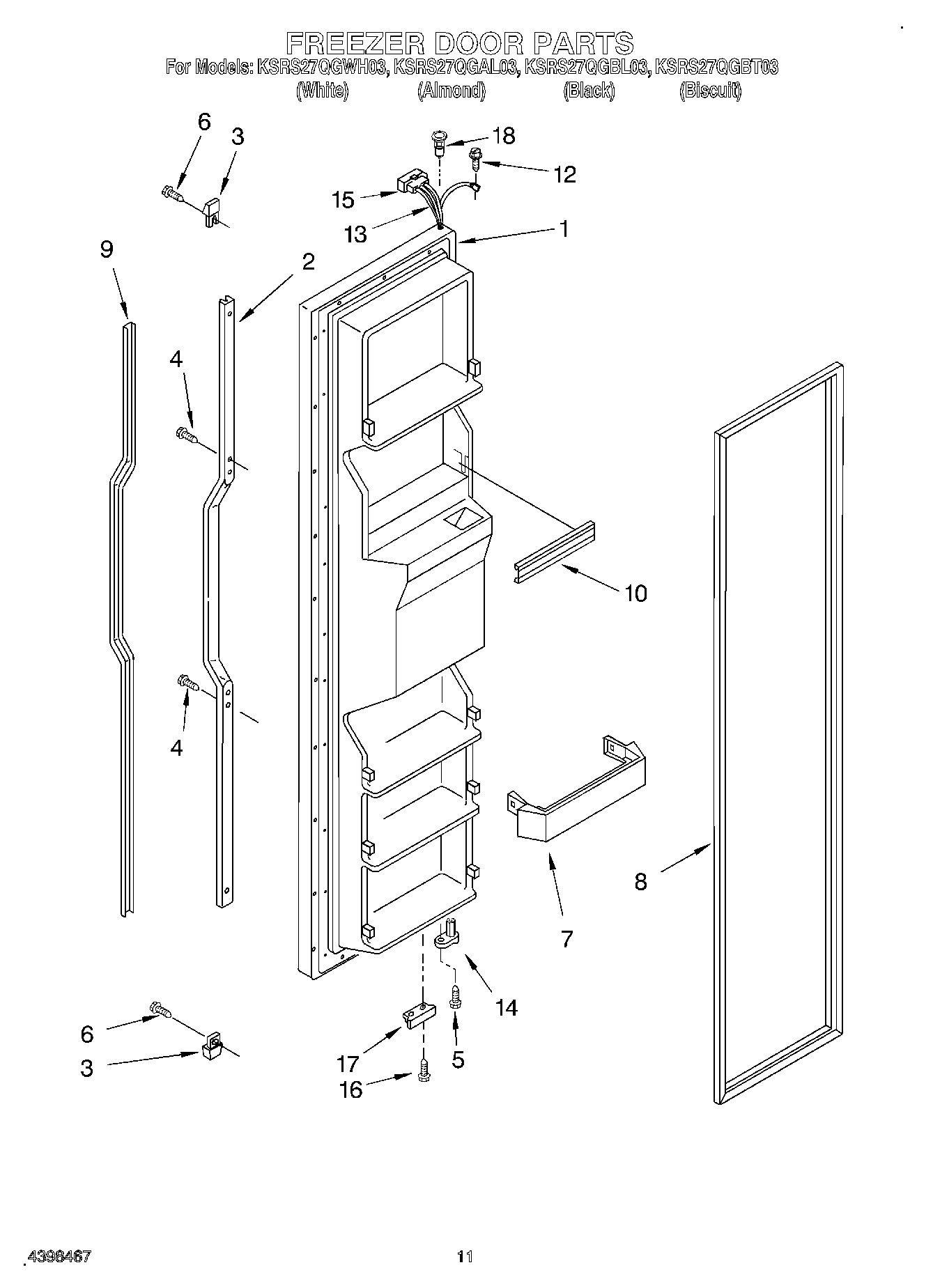

KSRS27QGWH03 07 – REFRIGERATOR DOORadmin2025-04-26T12:03:38+00:00KSRS27QGWH03 07 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Black) |
| 2 | Retainer, Insert |
| 2 | Retainer, Insert (Biscuit) |
| 2 | Retainer, Insert (Black) |
| 2 | Retainer, Insert (Almond) |
| 3 | End Cap, Handle (Almond) |
| 3 | End Cap (Black) |
| 3 | End Cap, Handle (Biscuit) |
| 3 | End Cap, Handle |
| 4 | WP489463 Whirlpool Refrigerator Screw |
| 5 | WP3400012 Whirlpool Refrigerator Screw |
| 6 | WP3400852 Whirlpool Refrigerator Screw |
| 7 | Shelf Bin (4) |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 8 | 2159074 Whirlpool Door Gasket Seal |
| 9 | Insert, Handle (Biscuit) |
| 9 | Insert, Handle (Biscuit) |
| 9 | Insert, Handle |
| 9 | Handle, Insert (Black) |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 12 | WP489128 Whirlpool Refrigerator Screw |
| 13 | Wire Harness |
| 14 | WP2182179 Whirlpool Cam Closer |
| 15 | WP2154473 Whirlpool Refrigerator Connector |
| 16 | WP489483 Whirlpool Screw |
| 17 | Bracket, Door Stop (Chrome) |
| 18 | WP2182181 Whirlpool Refrigerator Thimble |
