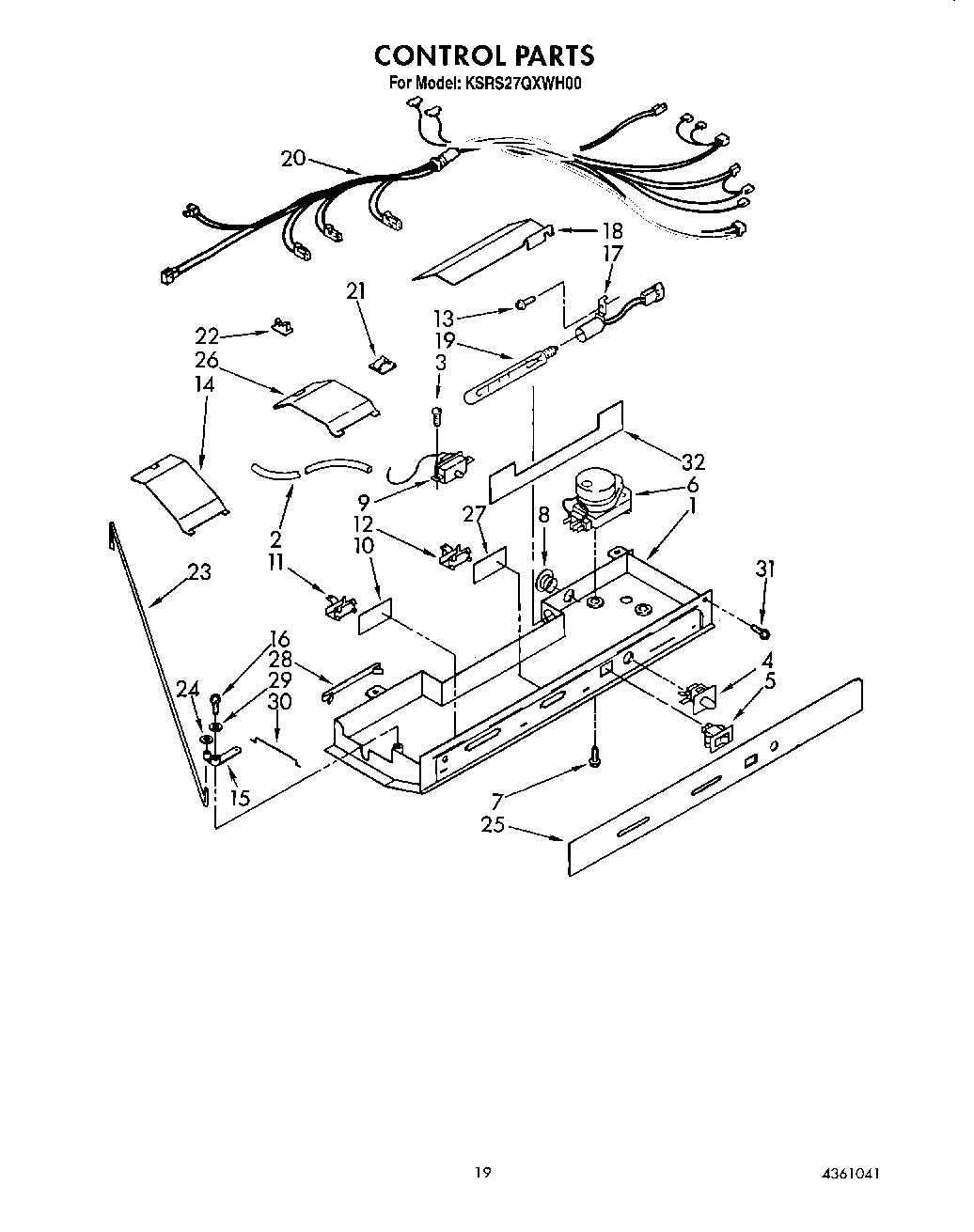

KSRS27QXAL00 12 – CONTROL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Switch, Toggle
6	Defrost Timer, (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Thermostat Assembly
10	Window
11	Slide, Air Control
12	Slide, Thermostat
13	WP489478 Whirlpool Refrigerator Screw
14	Light Bar
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	Light Socket
18	Heat Shield
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar
27	Window
28	Clip, Control Box
29	489203 Whirlpool Refrigerator Washer
30	Connecting Rod (Short)
32	Heat Shield
