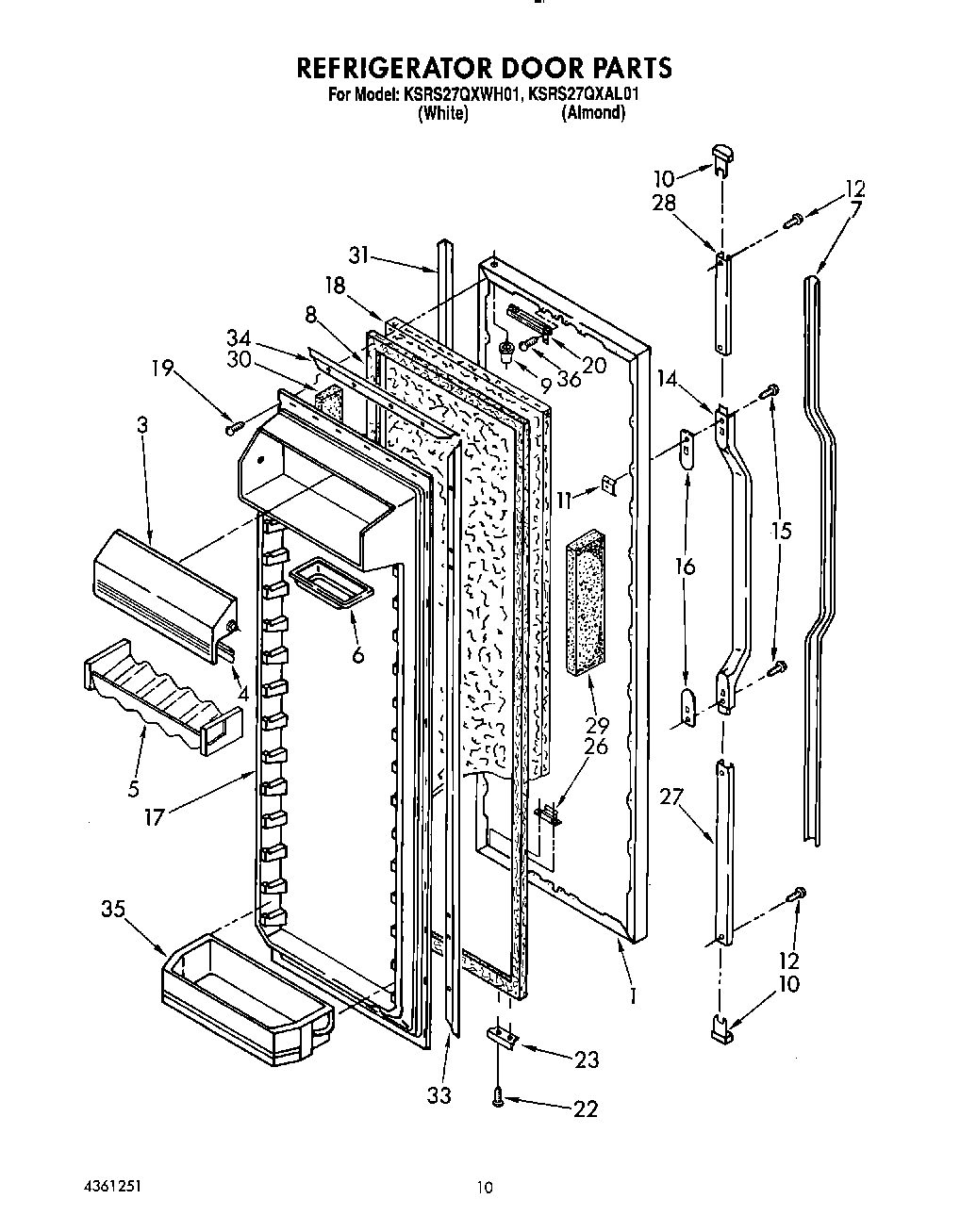

KSRS27QXAL01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
7	Insert, Handle (Almond)
7	Insert, Handle
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
36	Handle Inserts (Black)
36	Acrylic Panel Kit (White)
36	Handle Inserts (Woodgrain)
36	Handle Inserts (Black Grille Kit)
36	Acrylic Panel Kit (Almond)
36	Trim Kit Trim Kit Panels
36	WP488729 Whirlpool Refrigerator Door Screw
36	Black Glass
