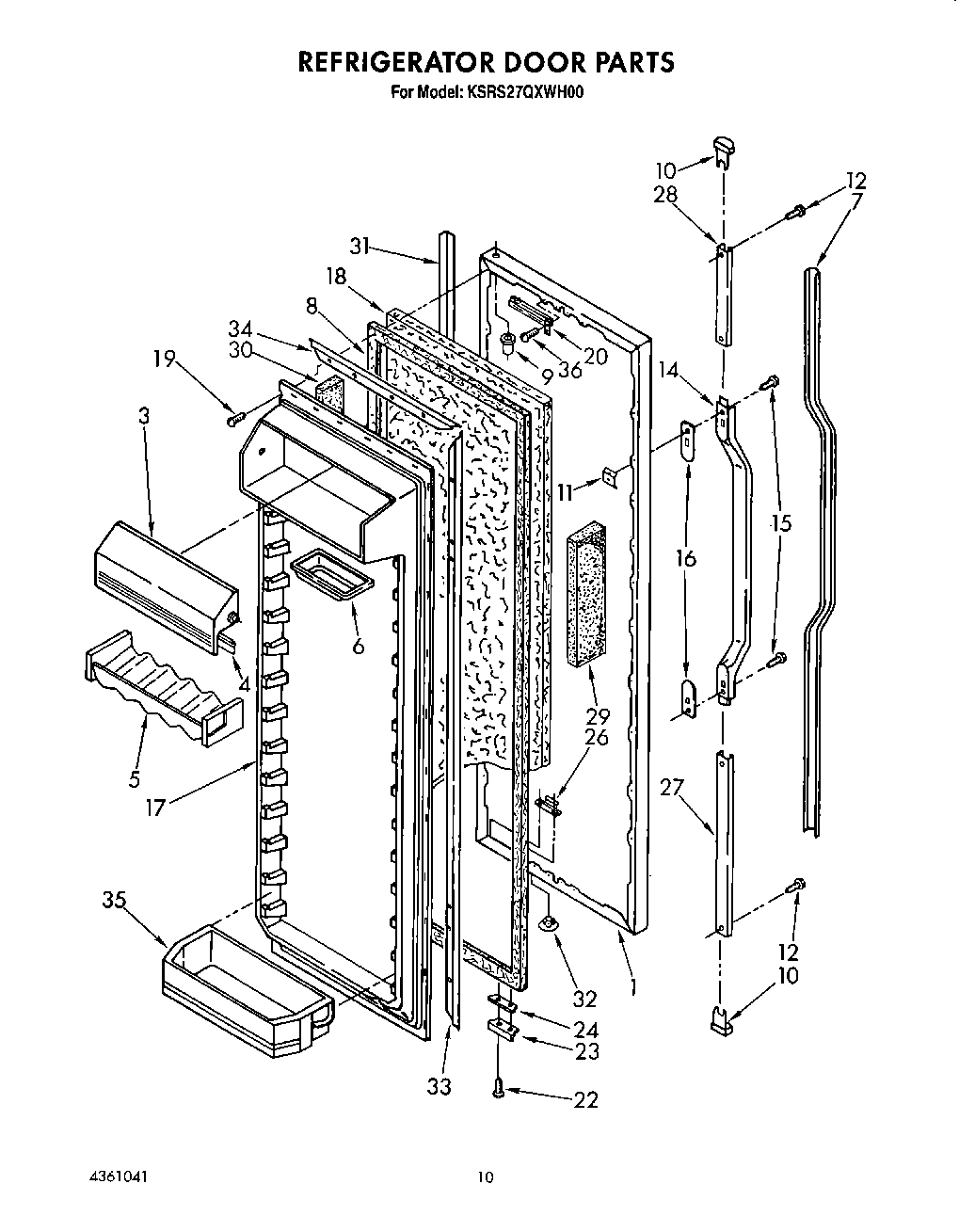

KSRS27QXWH00 07 – REFRIGERATOR DOOR

Products

Position	Product
NI	WP1104787 Whirlpool Refrigerator Shim
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
32	Hole Plug (2)
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
36	WP488729 Whirlpool Refrigerator Door Screw
36	Trim Kit Trim Kit Panels
36	Black Glass
36	Handle Inserts (Black Grille Kit)
36	Handle Inserts (Woodgrain)
36	Handle Inserts (Black)
36	Acrylic Panel Kit (Almond)
36	Acrylic Panel Kit (White)
