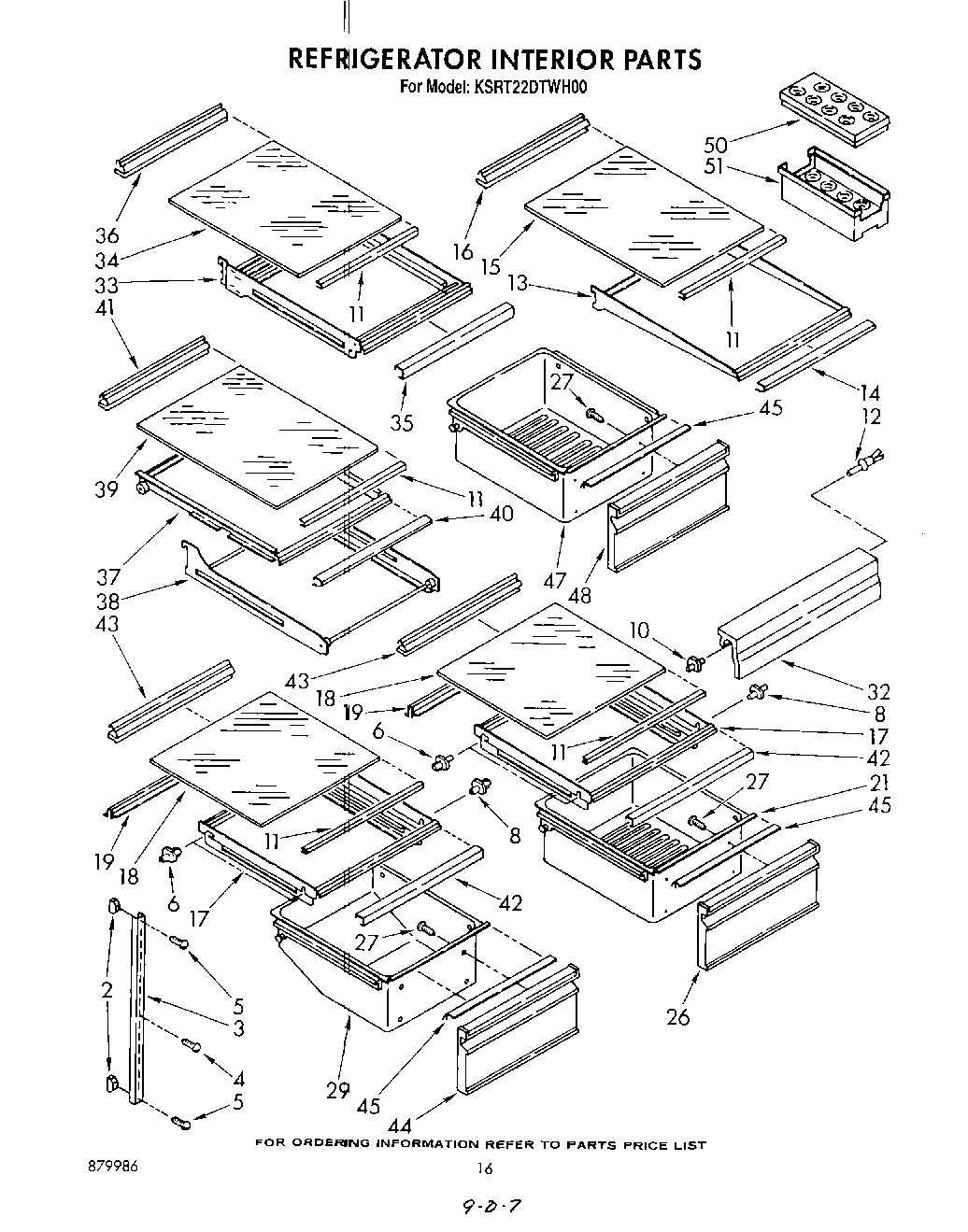

KSRT22DTAL00 09 – REFRIGERATOR INTERIOR

Products

Position	Product
2	520965 Whirlpool Refrigerator Support
3	Shelfladder (2)
4	Screw, 8 x 1-1/4 (3)
4	Screw, (Repair) 10 x 1 1/4
5	Screw, 8-32 x 1-1/4
5	Screw (Repair)
6	Shelf, Stud
8	Stud, Shelf (4)
10	Stud, Shelf
11	Shelf Gasket, Glass
12	Stud, Shelf (2)
13	Shelf, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
17	Frame, Meat & Crisper
18	Glass, Crisper & Meat Cover
19	Gasket, Rear (2)
21	Pan Crisper
26	Front Cover, Crisper
27	WP488729 Whirlpool Refrigerator Door Screw
27	Screw (Repair)
29	Pan, Meat
32	Light Lens, Crisper
33	Frame-Utility, Cantilever
34	Glass, Cantilever Shelf
35	Trim, Frame
36	Reflector, Glass Shelf
37	Roll Out Shelf, Cantilever
38	Frame, Cantilever Rollout
39	Glass, Rollout Shelf
40	Trim, Shelf Front
41	Reflector, Glass Shelf Rollout
42	Trim, Frame Crisper & Meat
43	Reflector, Glass
44	Front, Cover Meat Pan
45	Pan Gasket, Front
47	Tray, Utility
48	Front, Utility Tray
50	Egg Container, Top
51	Egg Container, Bottom
