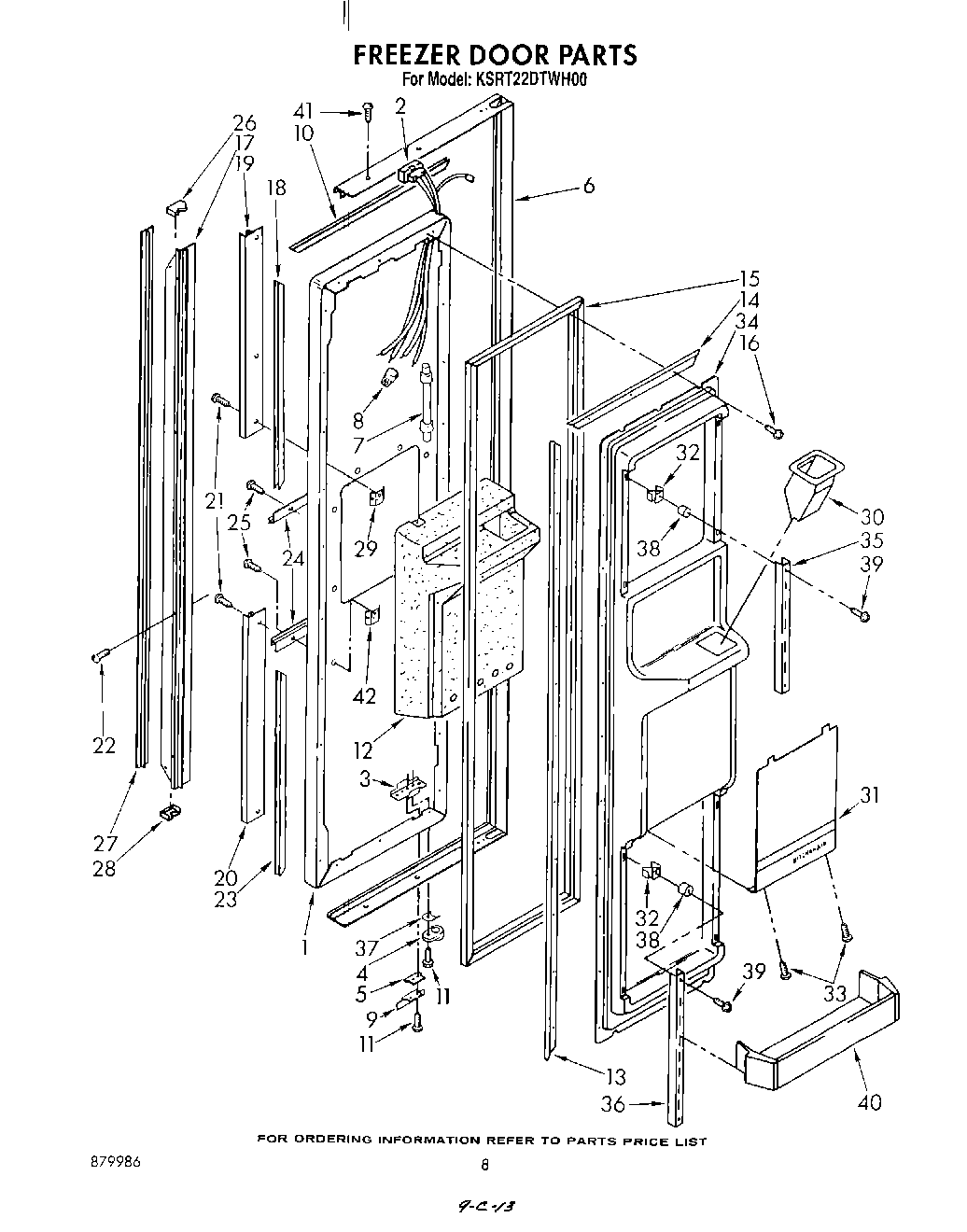

KSRT22DTTO00 05 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel Freezer (White)
1	Exterior Door Panel Freezer (Platinum)
1	Exterior Door Panel Freezer (Toast)
1	Exterior Door Panel Freezer (Almond)
2	Plug, Crossover
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	Shim
6	Trim, Door
7	Tube, Door Wiring
8	Wire Connector
9	Bracket, Door Stop
10	Trim, Push-In (4)
11	Screw (Repair)
11	WP488921 Whirlpool Refrigerator Screw
12	Insulation, Dispenser
13	Retainer Side, Gasket
14	Retainer, Top & Bottom Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
16	WP489069 Whirlpool Compactor Screw
16	SCREW
17	Handle, Door
18	Trim, Push-In Upper Sides (2)
19	Retainer, Handle (Top)
20	Retainer, Handle (Bottom)
22	WP8281206 Whirlpool Refrigerator Screw
23	Trim, Push-In Lower Sides (2)
24	Trim, Dispenser
25	Screw (Repair)
26	End Cap, Top
27	Insert, Handle
28	End Cap, Top
29	WP939101 Whirlpool Refrigerator Plate
30	Chute, Ice
31	Overlay, Ice Dispenser
32	Expansion Clip
33	WP488729 Whirlpool Refrigerator Door Screw
34	Interior, Door Panel
35	Shelf Ladder Top (2)
36	Shelf Ladder Bottom (2)
37	WP1104787 Whirlpool Refrigerator Shim
38	Spacer, Shelf
39	Screw, 8-15 x 1 1/4 (8)
40	Cantilever, Door Shelf
41	Screw, 6-32 x 1/2
42	Screw Anchor (2)
