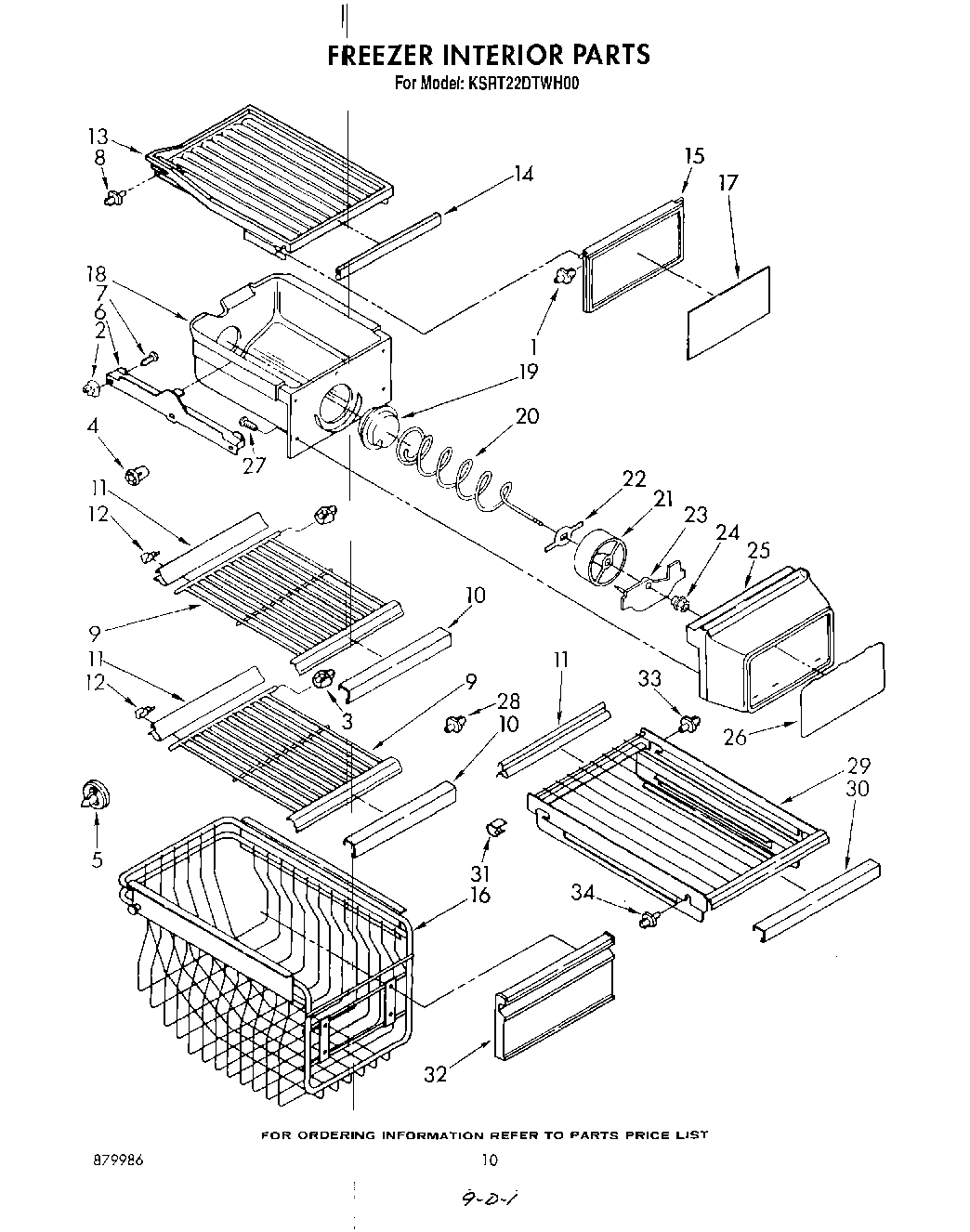

KSRT22DTWH00 06 – FREEZER INTERIOR , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	WPL LIT628107
	Torx Key
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	WPL LIT1117756
	WPL LIT1117304
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	WPL LIT1117759
	WPL LIT879986
1	Shelf, Stud
2	Grommet
3	Shelf Support
4	Grommet
5	Retainer Stud
6	Slide, Basket (Left Side)
7	Screw, 8 x 1
8	Stud, Shelf (2)
9	Shelf, Freezer
10	Trim, Shelf
11	Reflector, Shelf
12	Clip, Reflector (2)
13	Solid Shelf
14	Trim, Shelf
15	Front, Ice Compartment
16	Freezer, Basket
17	Overlay, Ice Compartment
18	Ice Container
19	W10749708 Whirlpool Refrigerator Coupling
20	Conveyor, Ice Container
22	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23	Baffle
24	Nut, Bearing
25	Front, Cover Container
26	Overlay, Front Cover
27	WP488787 Whirlpool Refrigerator Screw
28	Stud, Shelf
29	Shelf, Freezer Basket
30	Trim, Shelf Basket
31	Clip, Reflector
32	Front, Freezer Basket
33	Shelf, Stud
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	72017 Whirlpool Appliance Touch-Up Paint White
34	WPL 799833
34	Almond (Uncut)
34	Stud, Shelf (4)
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	Enamel, Black (1 Qt. Uncut)
34	WPL 876029
34	WP505587 Whirlpool Refrigerator Sealer
34	72032 Whirlpool Touch Up Paint Black
34	WP542638 Whirlpool Refrigerator Grease
34	WP503695 Whirlpool Refrigerator Sealer
34	876370 Whirlpool Refrigerator Insulation
34	833938 Whirlpool Refrigerator Terminal
34	606755 Whirlpool Refrigerator Bag
34	511873 Whirlpool Refrigerator Paint
34	212643 Whirlpool Refrigerator Permagum Sealer
34	WPL 799832
34	WPL 72112
34	Platinum (Uncut)
34	Enamal, Toast (1 Qt. Uncut)
34	72113 Whirlpool Touch-Up Paint
34	TAPE, VINYL (3/4 X 108``)
