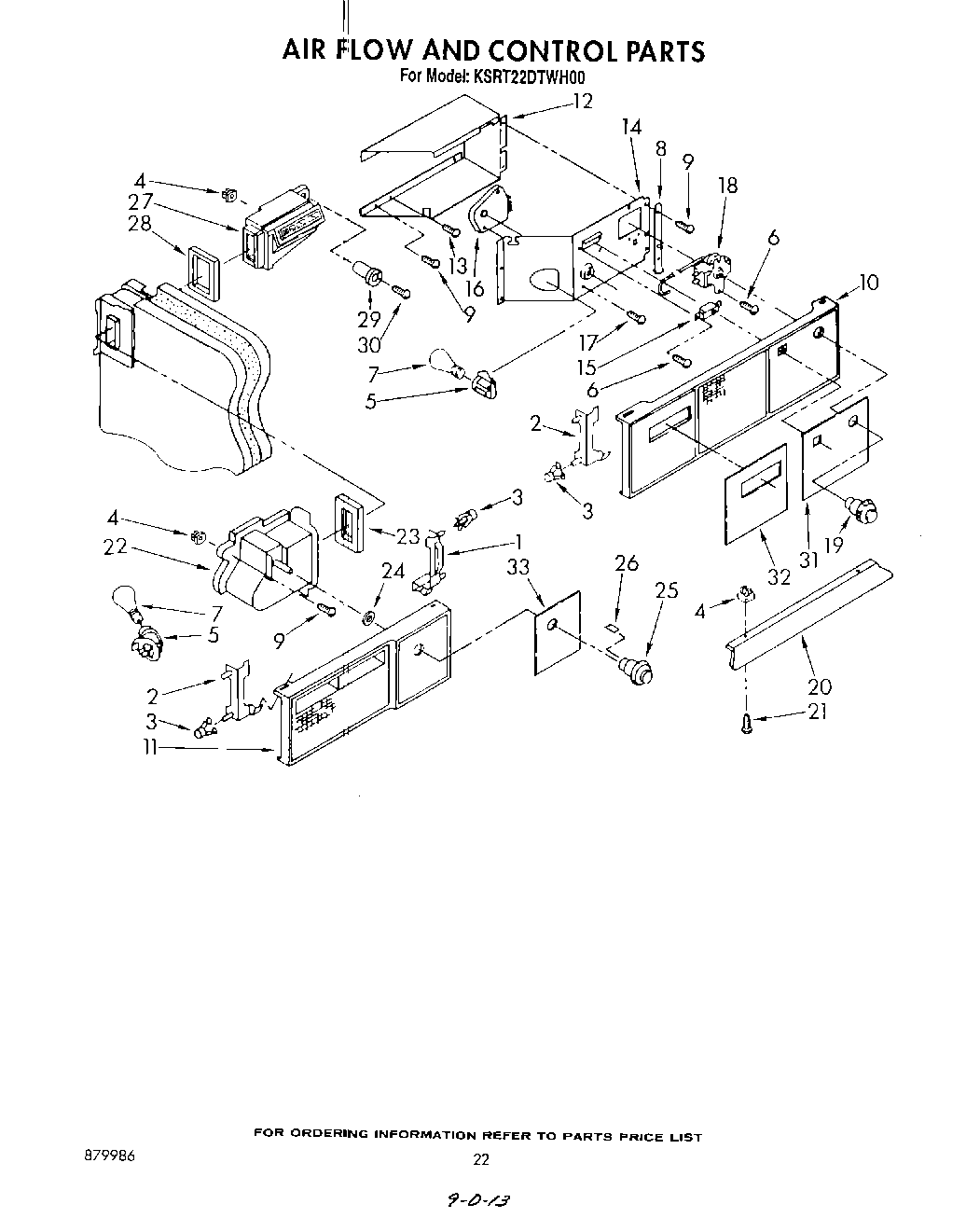

KSRT22DTWH00 12 – AIR FLOW AND CONTROL

Products

Position	Product
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Grommet
5	4387478 Whirlpool Refrigerator Light Socket
6	WP489128 Whirlpool Refrigerator Screw
7	RANGE ONLY 40W 120V APPL BULB
8	Support, Light Lens
9	W11624204 Whirlpool Screw
10	Light, Lens
11	Light Lens, Freezer
12	Box, Control
13	Screw, 8-32 x 3/8
14	Control Box Front
15	WP938213 Whirlpool Refrigerator Power Switch
16	Defrost Timer
17	WP3388228 Whirlpool Screw
18	WP4317800 Whirlpool Refrigerator Thermostat
19	Knob, Temperature Control
20	Baffle, Liner Top
21	WP489069 Whirlpool Compactor Screw
22	Air Scoop Assembly
23	Gasket, Air Scoop
24	Retainer, Damper
25	Control Knob
26	Knob, Retainer
27	Air Diffuser Assembly
28	Gasket, Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	Overlay, Light Lens (R.S)
32	Overlay, Light Lens (L.S)
33	Overlay, Light Lens (Freezer)
