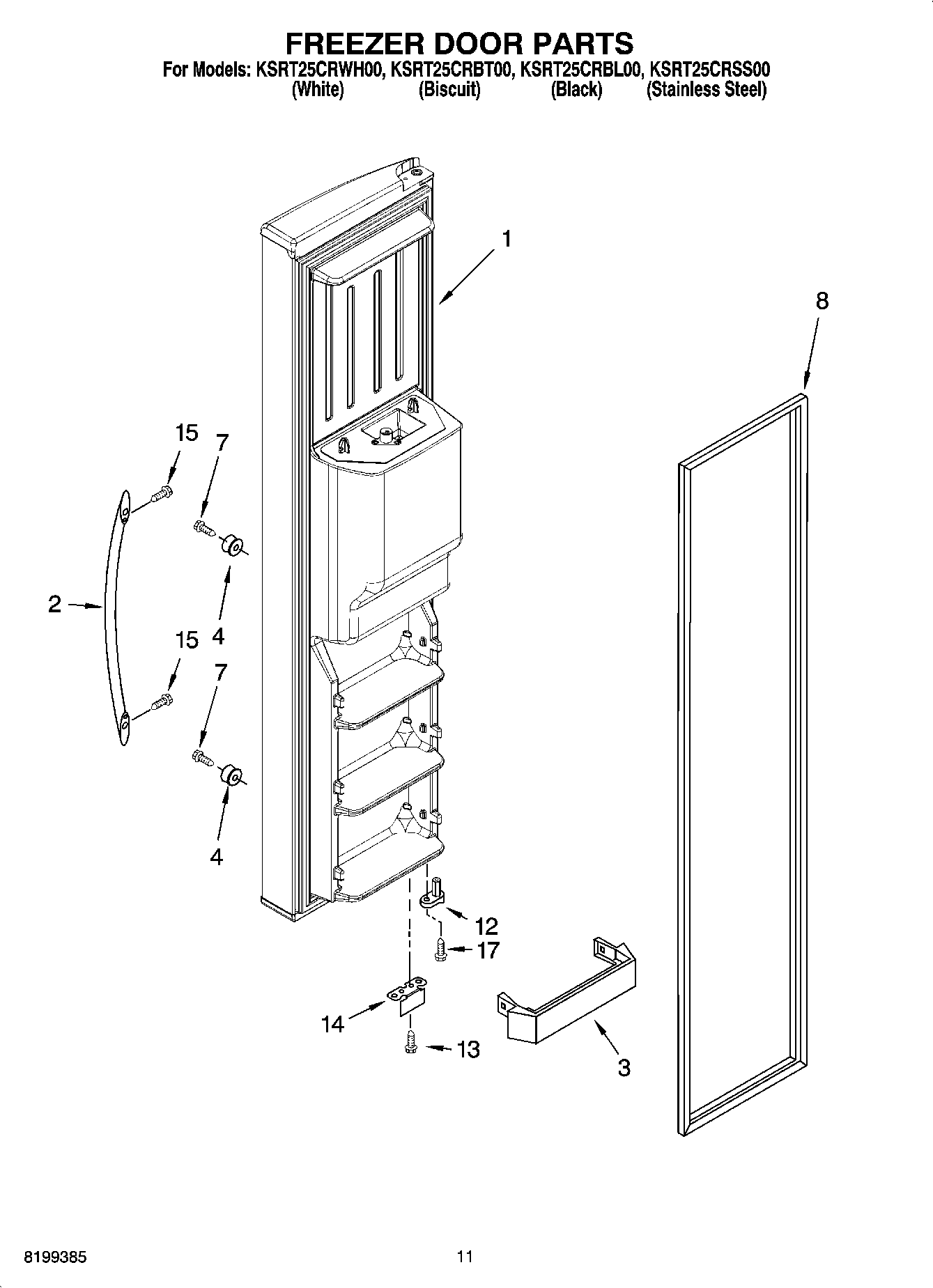

KSRT25CRBT00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle (Biscuit)
2	Handle (Stainless Steel)
2	Handle, Door (Black)
2	Handle, Door (White)
3	Trivet (3)
4	WPW10170540 Whirlpool Screw
7	WP488163 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	Screw
15	Set Screw (Black)
17	Tube, Door
17	Wire Assembly, Freezer Door
17	WP3400012 Whirlpool Refrigerator Screw
17	FOLLOWING PARTS NOT ILLUSTRATED
