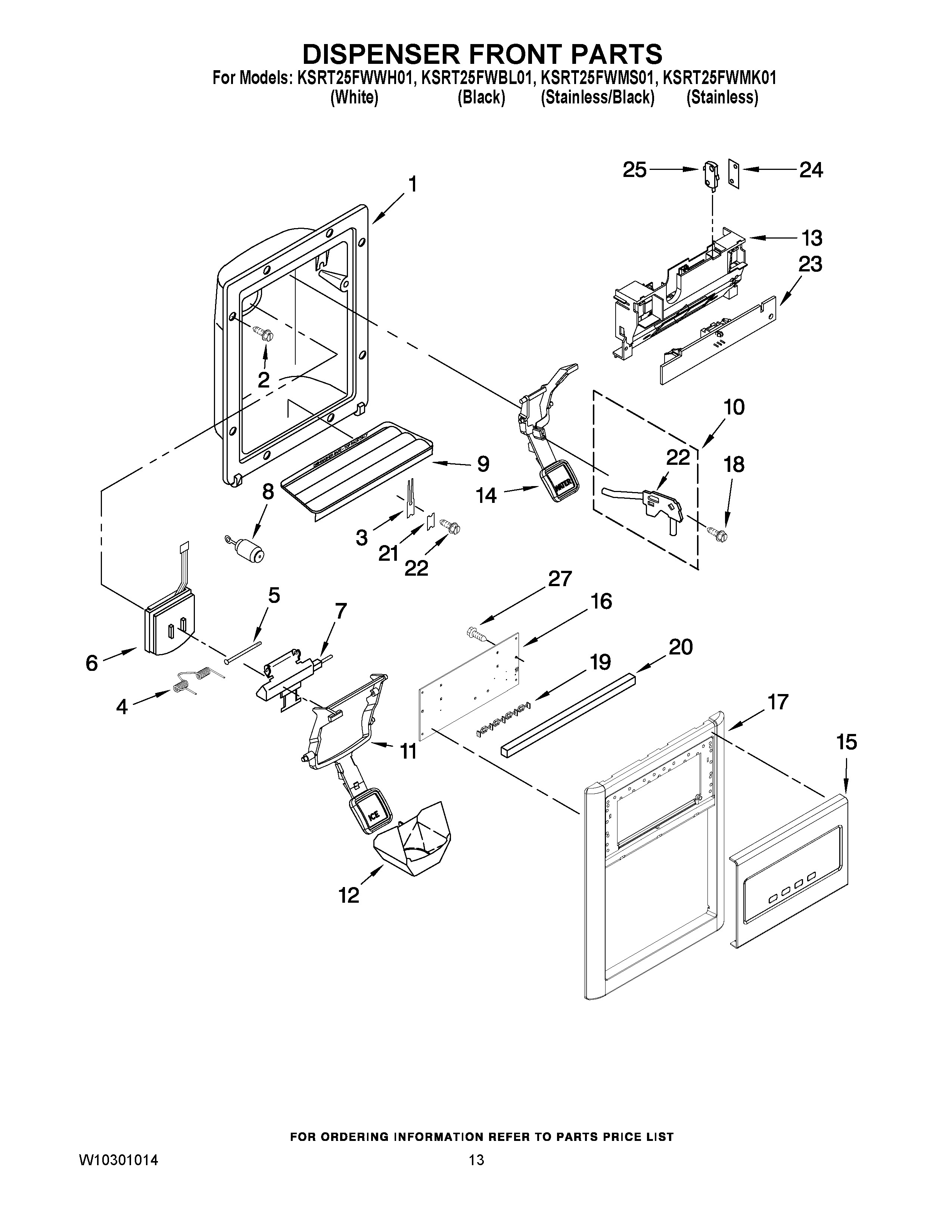

KSRT25FWMK01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9Grille, Disp (Black)
9Grille, Disp (White)
9Grille, Disp (Nickel One)
108201537 Whirlpool Water Tubing Assembly
11W10155161 Whirlpool Refrigerator Dispenser Arm
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
11WPW10152853 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13W10728484 Whirlpool Refrigerator Dispenser Control Bracket
14WPW10152858 Whirlpool Refrigerator Dispenser Arm
14WPW10152859 Whirlpool Refrigerator Dispenser Arm
14Lever, Water Dispenser (Apollo Grey)
15FASCIA ASSEMBLY (BLACK)
15FASCIA ASSEMBLY (WHITE)
15FASCIA ASSEMBLY (STAINLESS)
16Control Board
172322507W Whirlpool Front Cover Assembly
172322507B Whirlpool Refrigerator Front Cover
17BEZEL, DISP (STAINLESS)
18WP3400906 Whirlpool Refrigerator Screw
19Support, Window
20Gasket
21WP2195051 Whirlpool Refrigerator Clip
22WP2304673 Whirlpool Refrigerator Bracket
23LED Assy
24Spacer, Switch (2)
25WP2162361 Whirlpool Switch
272006254 Whirlpool Refrigerator Screw
