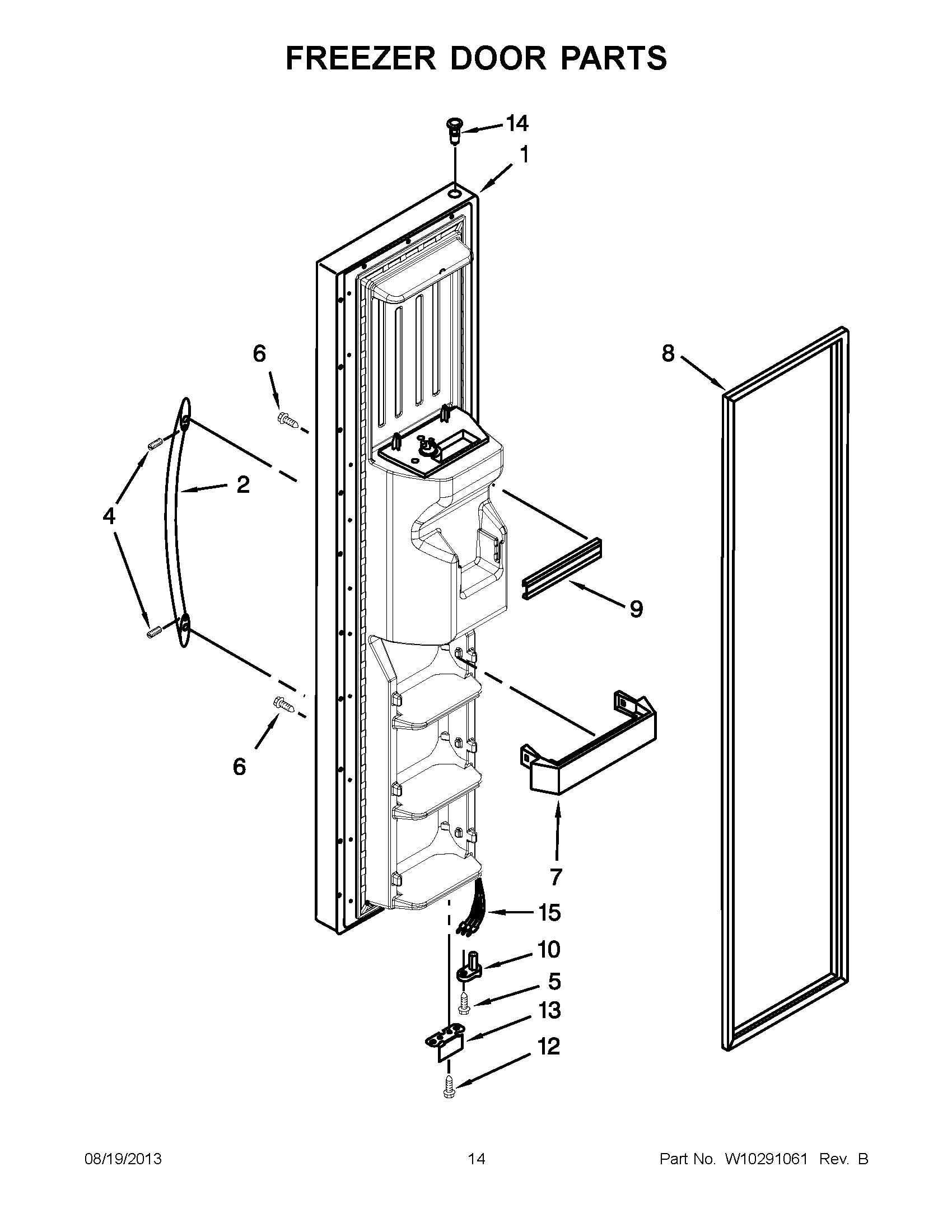

KSRT25FWWH00 08 – FREEZER DOOR PARTS

KSRT25FWWH00 08 – FREEZER DOOR PARTS

Written by

in

KSRT25FWWH00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
4SCREW
4WPW10010150 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WPW10170540 Whirlpool Screw
7Trivet (4)
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10Door Closer, Upper Cam
12WPW10142233 Whirlpool Refrigerator Screw
13W10175736 Whirlpool Refrigerator Bracket
13W10219809 Whirlpool Bracket
14WP2182181 Whirlpool Refrigerator Thimble
15WPW10193330 Whirlpool Refrigerator Wire Harness
