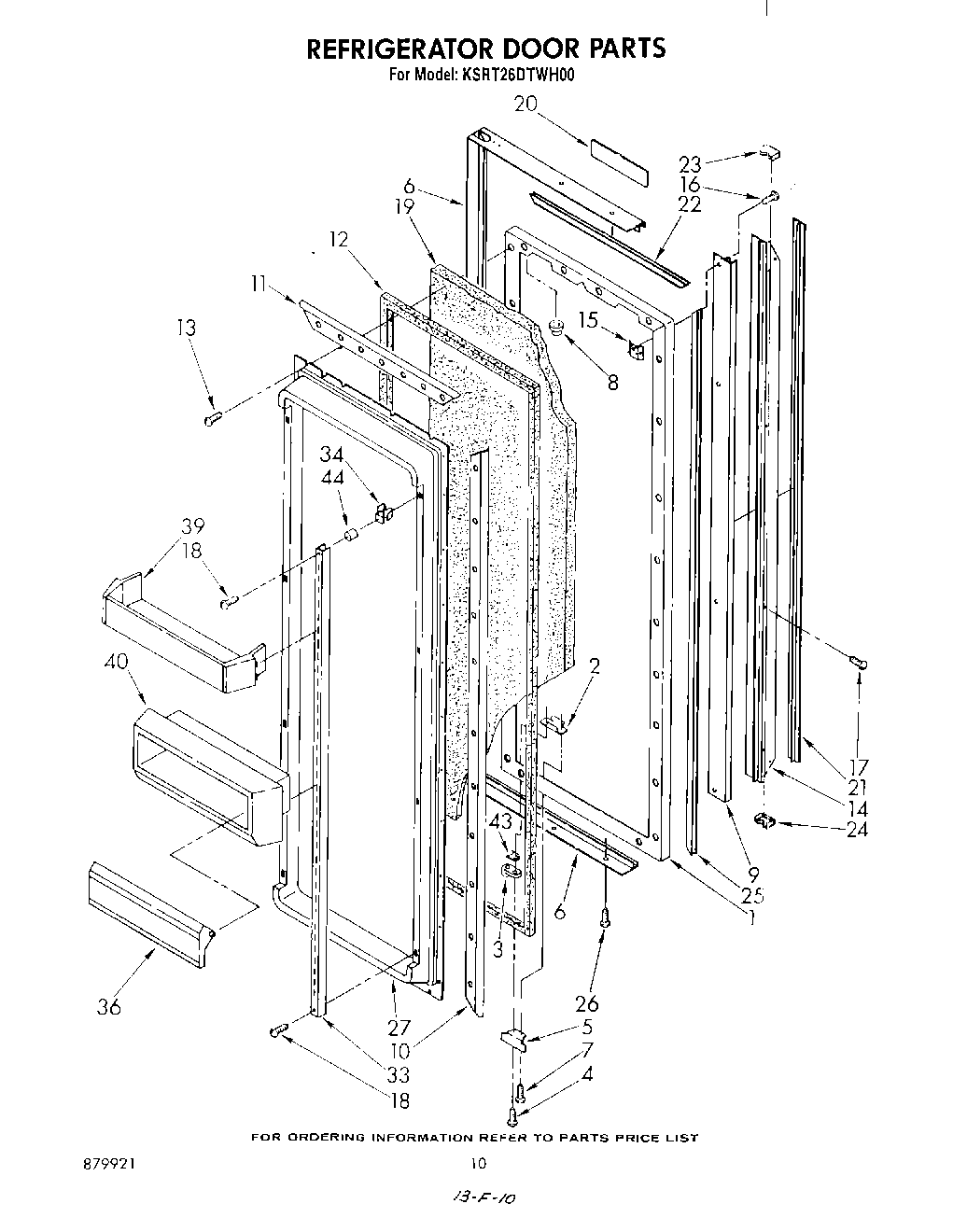

KSRT26DTPL00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Platinum (Also Order Item 19 When Replaceing Door))
1	Refrigerator, Door Panel (Almond)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Trim, Door
7	Screw, 89 x 5/8
7	Screw (Repair)
8	Cap, Hinge Sleeve (2)
9	Retainer, Handle
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle, Door
15	WP939101 Whirlpool Refrigerator Plate
17	WP8281206 Whirlpool Refrigerator Screw
18	Screw, 8-15 x 1 1/4 (8)
19	WPL 876029
20	Insert, Nameplate
21	Insert, Handle
22	Trim, Push-In Top & Bottom
23	End Cap, Top
24	End Cap, Bottom
25	Trim, Push-In Side (2)
26	Screw, 6-32 x 1/2
27	Interior Door Panel
33	Shelf Ladder
34	Expansion Clip
36	Compartment Door
39	Cantilever, Door Shelf
40	Shelf, Door Cantilever Bin
43	WP1104787 Whirlpool Refrigerator Shim
44	Spacer, Shelf
